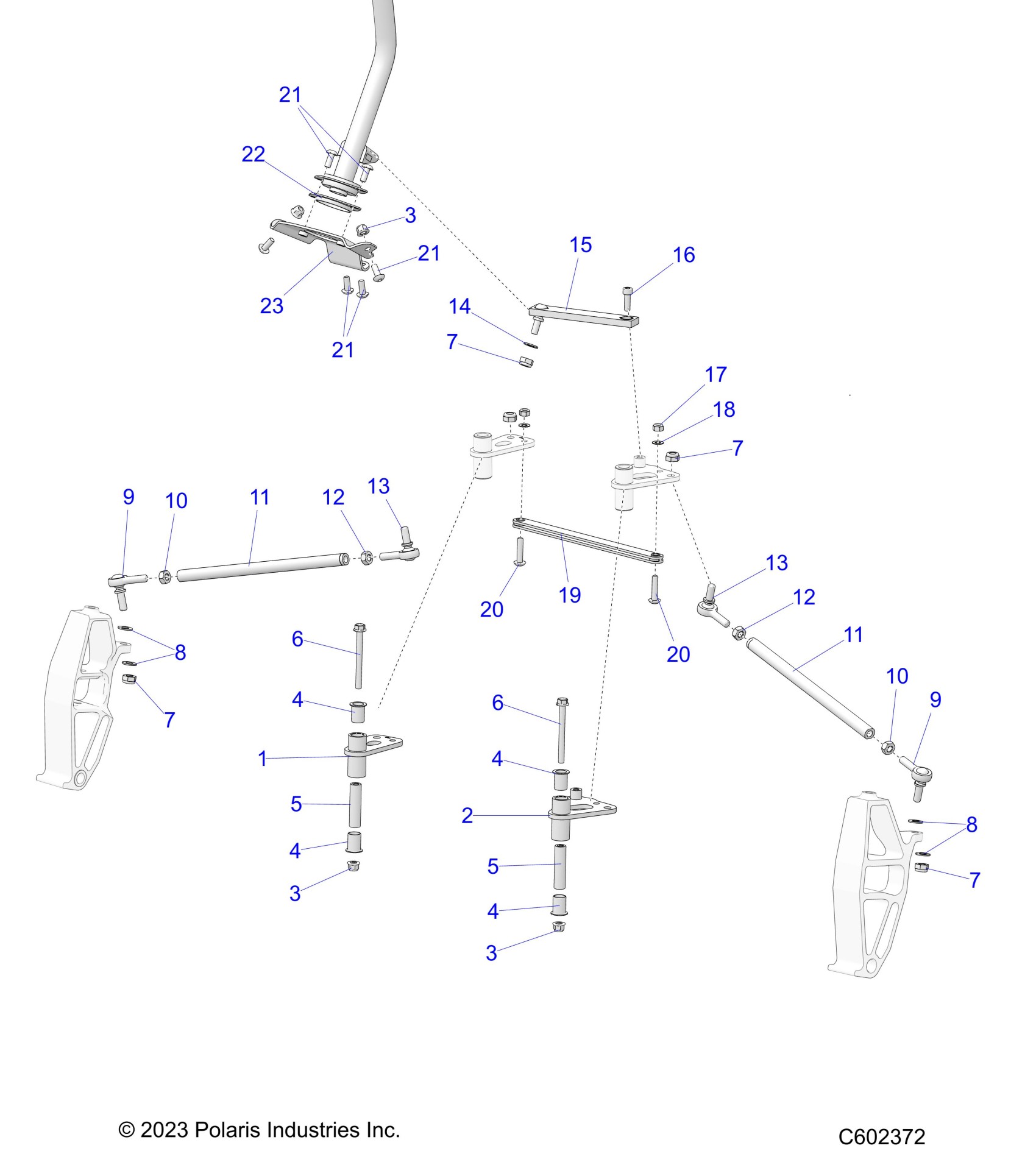

Polaris 550 VOYAGEUR LXT ES/NORTH EDITION (R02) - S25CED5TSL/TSU STEERING, LOWER - S25CED5TSL/TSU (C602372) Diagram

#

Description
Price

1

ASM-IDLER [INCL 4]

1824547

$135.54

2

ASM-PITMAN [INCL 4]

1824761

$150.06

3

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

3

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

3

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

4

BUSHING-SKI PIVOT

5438460

$15.99

4

BUSHING-SKI PIVOT

5438460

$15.99

4

BUSHING-SKI PIVOT

5438460

$15.99

4

BUSHING-SKI PIVOT

5438460

$15.99

5

SHAFT-PIVOT IDLER

5138365

$24.27

5

SHAFT-PIVOT IDLER

5138365

$24.27

6

SCR-HXFL-M8X1.25X85 10.9 ZOD

7519972

$9.59

6

SCR-HXFL-M8X1.25X85 10.9 ZOD

7519972

$9.59

7

NUT-HEX M10X1.5 8 ZOD NYL

7547442

$3.99

7

NUT-HEX M10X1.5 8 ZOD NYL

7547442

$3.99

7

NUT-HEX M10X1.5 8 ZOD NYL

7547442

$3.99

7

NUT-HEX M10X1.5 8 ZOD NYL

7547442

$3.99

8

WSHR-FL .406X.812X.065-Y

7555806

$1.49

8

WSHR-FL .406X.812X.065-Y

7555806

$1.49

9

ROD END-M10X26.5 75DEG RH

7061166

$52.60

9

ROD END-M10X26.5 75DEG RH

7061166

$52.60

10

NUT-M10X1.5 ZOD

7547430

$3.17

10

NUT-M10X1.5 ZOD

7547430

$3.17

11

ROD-TIE

5336578

$24.27

11

ROD-TIE

5336578

$24.27

12

NUT-M10X1.5 LH ZOD

7547431

$3.19

12

NUT-M10X1.5 LH ZOD

7547431

$3.19

13

ROD END-M10X23 75DEG LH

7061165

$52.60

13

ROD END-M10X23 75DEG LH

7061165

$52.60

14

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

15

ASM-DRAGLINK FIXED

7061186

$97.13

16

SCR-M8X1.25X25 8.8 SH ZOD P30

7519010

$3.99

17

NUT-M8X1.25C10,HX,NYL,DIN982,Z

7547405

$1.49

18

WASHER-FL 8.4X16.0X.91 HRD ZOD

7557059

$3.19

19

ASM-RACK LINK

7061190

$71.99

20

SCR-TXTH-M8X1.25X35 8.8 ZOD

7519238

$6.39

20

SCR-TXTH-M8X1.25X35 8.8 ZOD

7519238

$6.39

21

SCR-TXTH-M8X1.25X20 8.8 ZODP30

7519260

$6.39

21

SCR-TXTH-M8X1.25X20 8.8 ZODP30

7519260

$6.39

21

SCR-TXTH-M8X1.25X20 8.8 ZODP30

7519260

$6.39

22

FLANGETTE-2 BOLT

5270869

$20.22

23

ASM., MOUNT, STEERING, LOWER

1018400

$44.51
