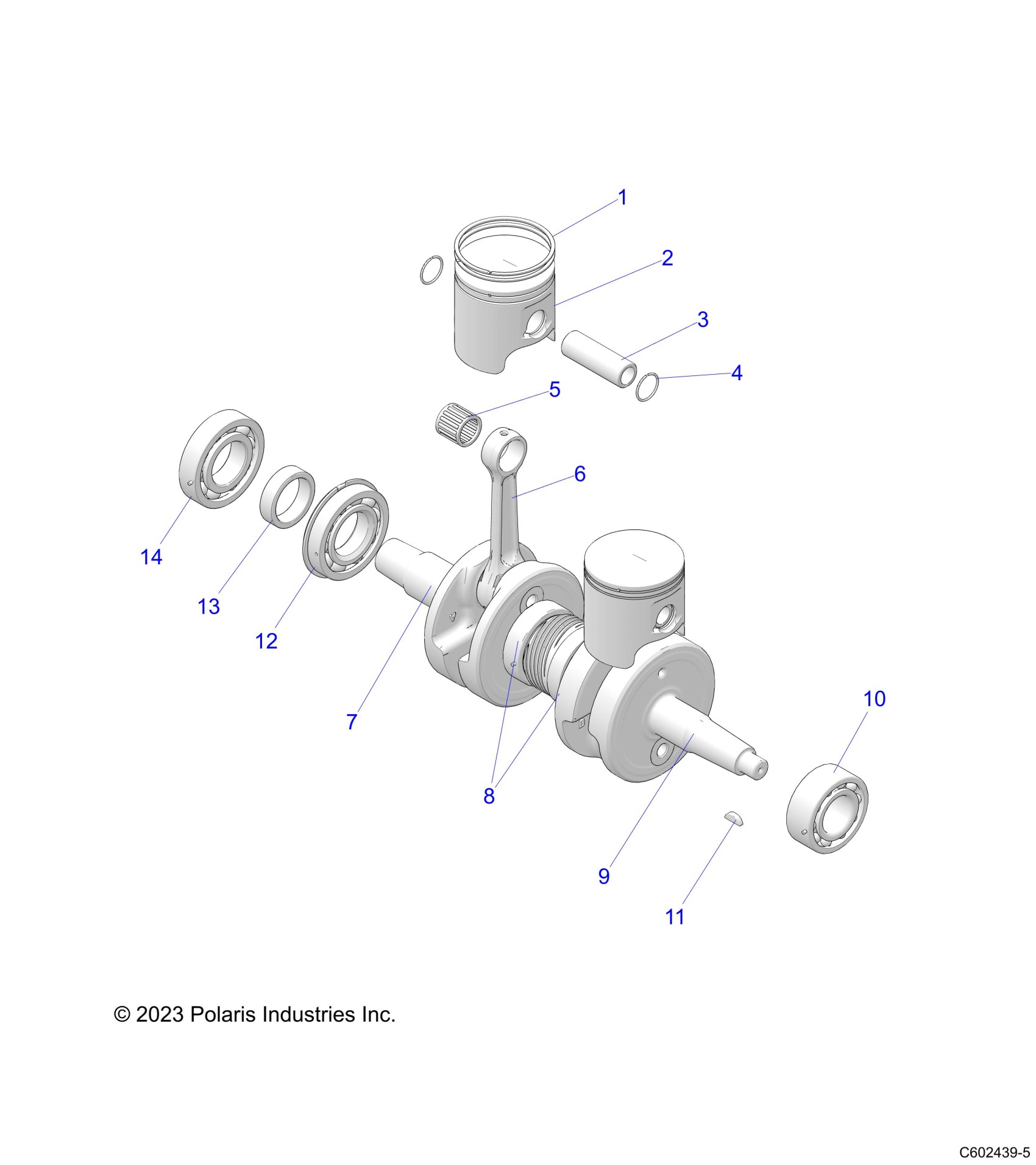

Polaris 550 VOYAGEUR LXT ES/NORTH EDITION (R02) - S25CED5TSL/TSU ENGINE, PISTON and CRANKSHAFT - S25CED5TSL/TSU (C602439-5) Diagram

#

Description
Price

-

K-CRANKSHAFT 3023811 [INCL. CRANKSHAFT,10,12-14]

2208762

$1,684.99

1

K-PISTON RING 5141633

2208881

$33.32

2

K-PISTON,20MM NRB [INCL. 1,3,4,5]

2207580

$152.37

3

PIN-PISTON [AVAILABLE IN PISTON KIT ONLY]

-------

Unavailable

4

CIRCLIP

3021867

$3.19

5

BRNG-15NDL,20X25X23,PIN,NRBRED

3514882-015

$24.99

6

K-CON ROD ASM, 65ST

2208858

$504.99

7

WEB-CRANK,PTO

5141626

$429.99

8

BRG-BALL,MAIN,CTR

3515063

$44.99

9

WEB-CRANK,MAG

5141624

$549.99

10

BRG-BALL,MAIN,MAG

3515061

$104.99

11

KEY-WOODRUFF, METRIC #505

7721117

$24.99

12

BRG-BALL,MAIN,PTO

3515060

$64.99

13

SPACER-BEARING,PTO

5143730

$12.79

14

BRG-BALL,PTO

3515059

$64.99
