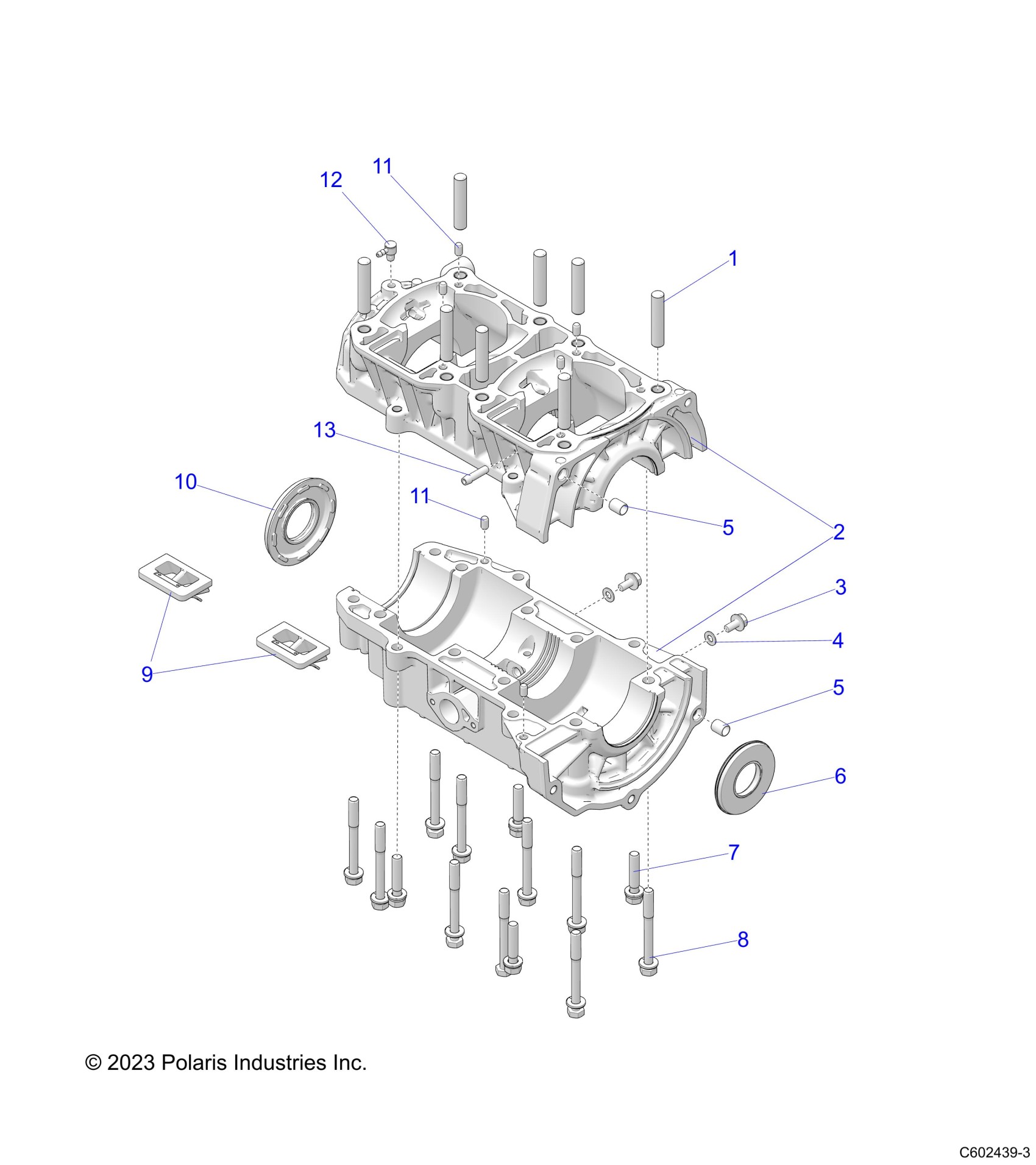

Polaris 550 VOYAGEUR LXT ES/NORTH EDITION (R02) - S25CED5TSL/TSU ENGINE, CRANKCASE - S25CED5TSL/TSU (C602439-3) Diagram

#

Description
Price

1

STUD-M10X1.25X50

7520776

$3.19

2

K-CRANKCASE 1206108 [INCL. 3-5,7,8,11-13]

2208879

$624.99

3

SCR-HXFL-M6X1.0X12 8.8

7520710

$3.99

4

WASHER-FLAT,6.15X12X1MM-AL

7555998

$1.49

5

DOWEL-RING

7662343

$10.99

5

DOWEL-RING

7662343

$10.99

6

SEAL-CRANK,MAG

3610302

$28.32

7

BOLT,M8X40

7520778

$3.19

8

BOLT,M8X75

7520777

$3.99

9

ASM-VALVE,REED

3023394

$32.37

10

SEAL-FLANGED,35X72X7,STNDOFFPG

5415026

$29.99

11

PIN-DOWEL,M6X10

5136879

Unavailable

11

PIN-DOWEL,M6X10

5136879

Unavailable

12

FITTING-OIL,90 DEG

7052691

$36.41

13

Fitting, Straight

7052145

$9.59
