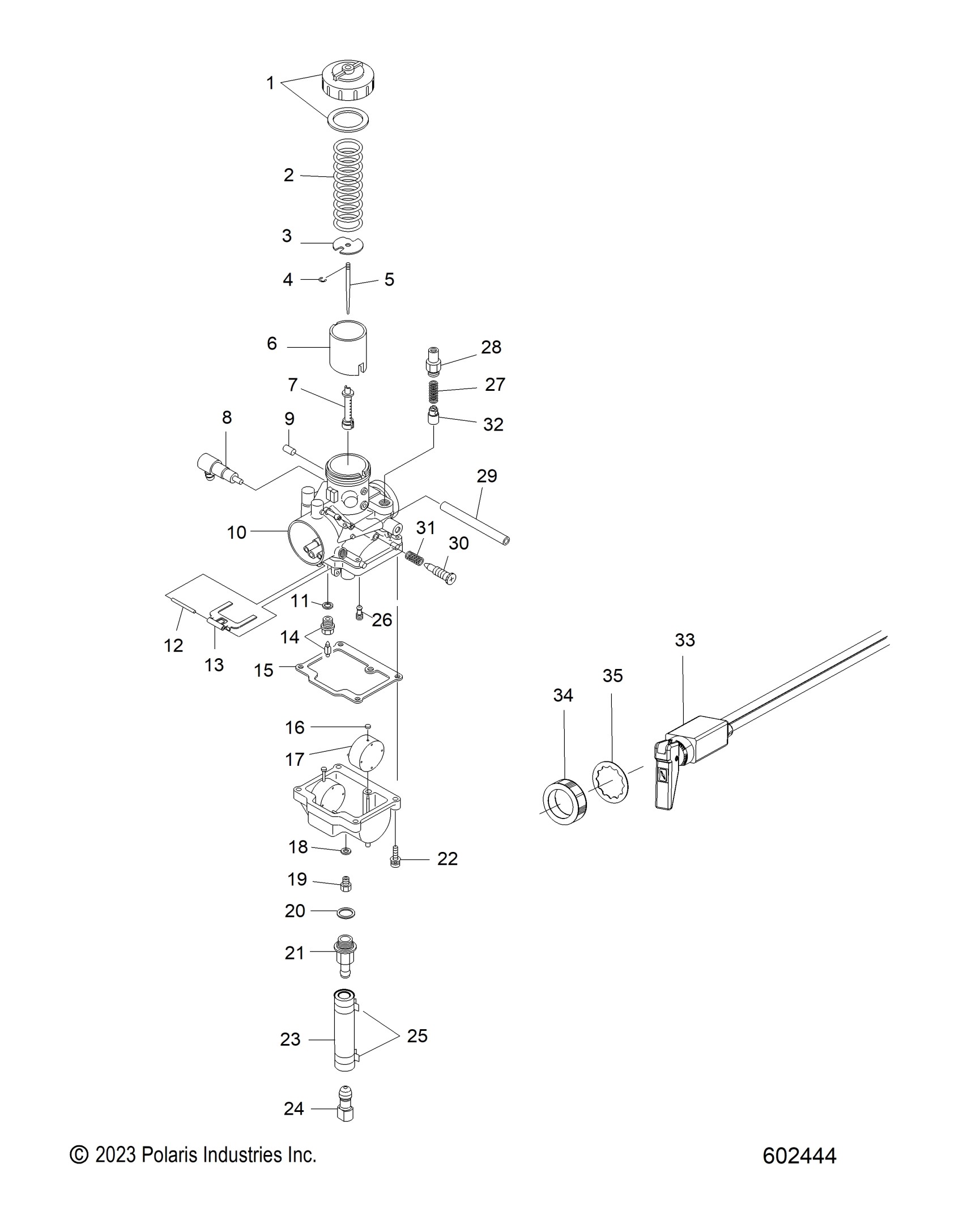

Polaris 550 VOYAGEUR LXT ES/NORTH EDITION (R02) - S25CED5TSL/TSU ENGINE, CARBURETOR AND CHOKE - S25CED5TSL/TSU (602444) Diagram

#

Description
Price

1

ASM., TOP, MIXING CHAMBER

3130184

$32.37

2

SPRING, THROTTLE

3130439

$13.59

3

Plate, Throttle

3130027

$9.70

4

E-RING

3130508

$6.46

5

NEEDLE-JET COATED

3134207

$36.41

6

VALVE, THROTTLE, 3.0

3131763

$119.98

7

JET, NEEDLE, Q-O, 480

3130964

$54.99

8

ASM., VALVE, CHECK

3086785

$52.60

9

CAP

3130479

$14.56

10

ASM-CARBURETOR [INCL. 1-22,26-32]

3134206

$559.99

11

Packing, Needle Valve

3130017

$4.03

12

PIN, FLOAT

3130361

$8.89

13

Arm, Float

3130018

$24.27

14

NEEDLE VALVE, 1.5

3131146

$48.56

15

Gasket, Float Chamber

3130020

$16.17

16

Cap

3130237

$4.03

17

Asm., Float

3130430

$43.56

18

WASHER

3130014

$1.59

19

MAIN JET, #220

3130428

Unavailable

20

O-RING

3130239

Unavailable

21

NIPPLE

3130573

$32.37

22

Asm., Screw and Washer

3130025

$3.19

23

HOSE, WATERTRAP

5413396

$13.75

24

Plug, Trap

5431893

$12.94

25

CLAMP, HOSE, 14.0/10

7082198

$2.39

26

PILOT JET, #45

3130068

$8.89

27

SPRING, PLUNGER

3131764

$8.89

28

Holder, Guide

3130199

$28.32

29

HOSE

3090196

$24.27

30

SCREW, THROTTLE STOP

3130437

Unavailable

31

SPRING, THROTTLE ADJUSTER

3130010

$8.89

32

Asm., Plunger

3130328

$32.37

33

KIT, CHOKE CONTROL [INCL. ANCHOR, FLIPPER, PIN]

2200188

$24.27

33

CABLE-CHOKE CONTROL

7081812

$59.99

34

Nut, Choke, Slide

7080229

$19.99

35

Washer, Inter Lock

7571610

$3.99
