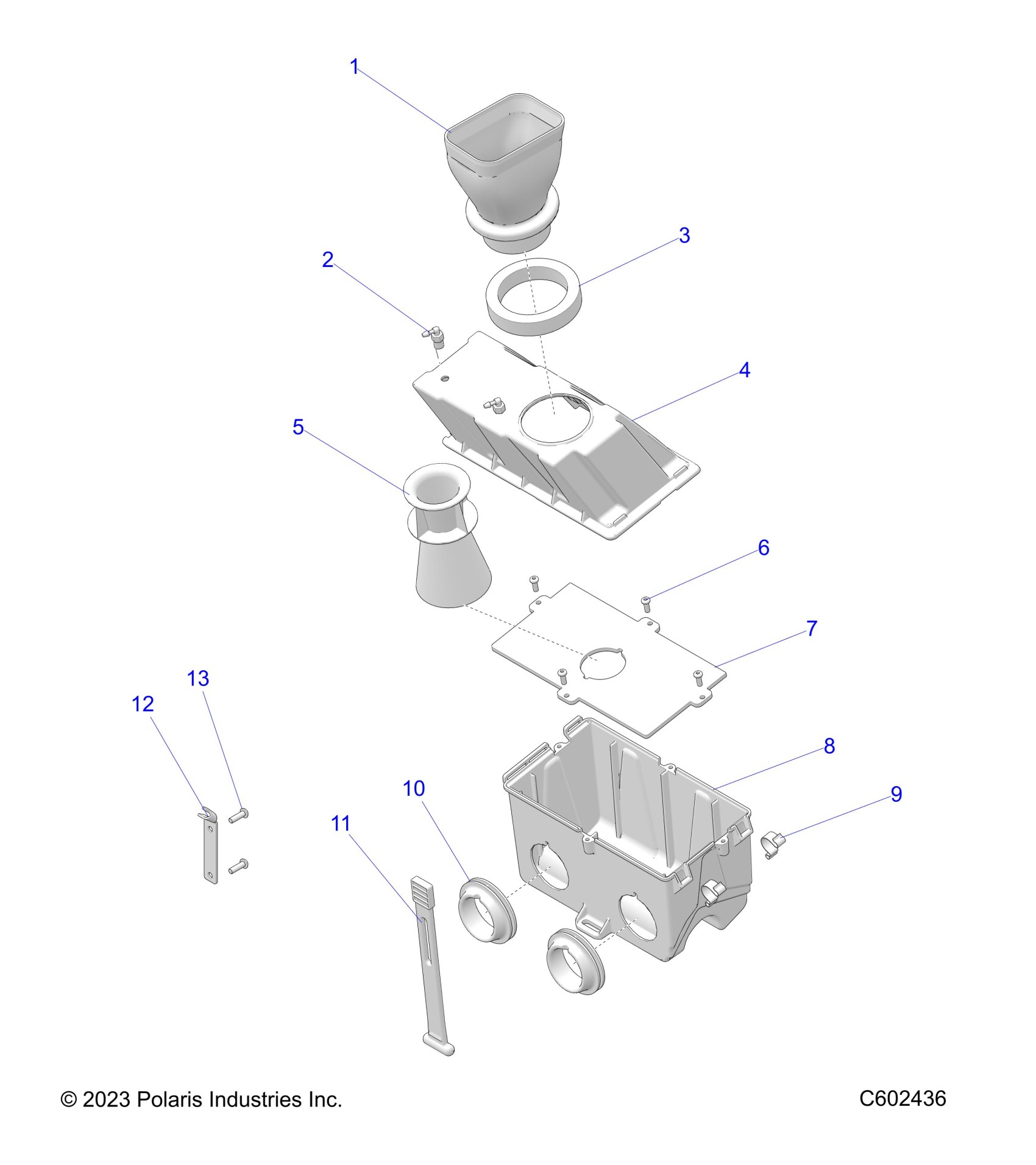

Polaris 550 VOYAGEUR LXT ES/NORTH EDITION (R02) - S25CED5TSL/TSU ENGINE, AIR BOX - S25CED5TSL/TSU (C602436) Diagram

#

Description
Price

1

TUBE, INTAKE

5438989

$36.41

2

FITTING

7052564

$6.39

3

FOAM, TUBE/AIRBOX

5813756

$10.51

4

ASM., AIRBOX TOP, 550 W/FITTINGS

1205008

$44.51

5

TUBE, INTAKE

5438303

$13.75

6

SCR-10X 5/8 TX PN PLST-243

7518577

$2.39

7

PLATE, AIRBOX

5439272

$24.27

8

AIRBOX, BOTTOM

5438988

$44.51

9

CLIP-AIR BOX

5242044

$9.59

10

BOOT, THROTTLE BODY

5414370

$24.27

11

Strap, Rubber

5436090

$24.27

12

BRKT-AIR BOX MOUNT 550

5270688

$8.08

13

BOLT-M6X1.0X20,PH/TX-OLIVE D

7518616

$1.49
