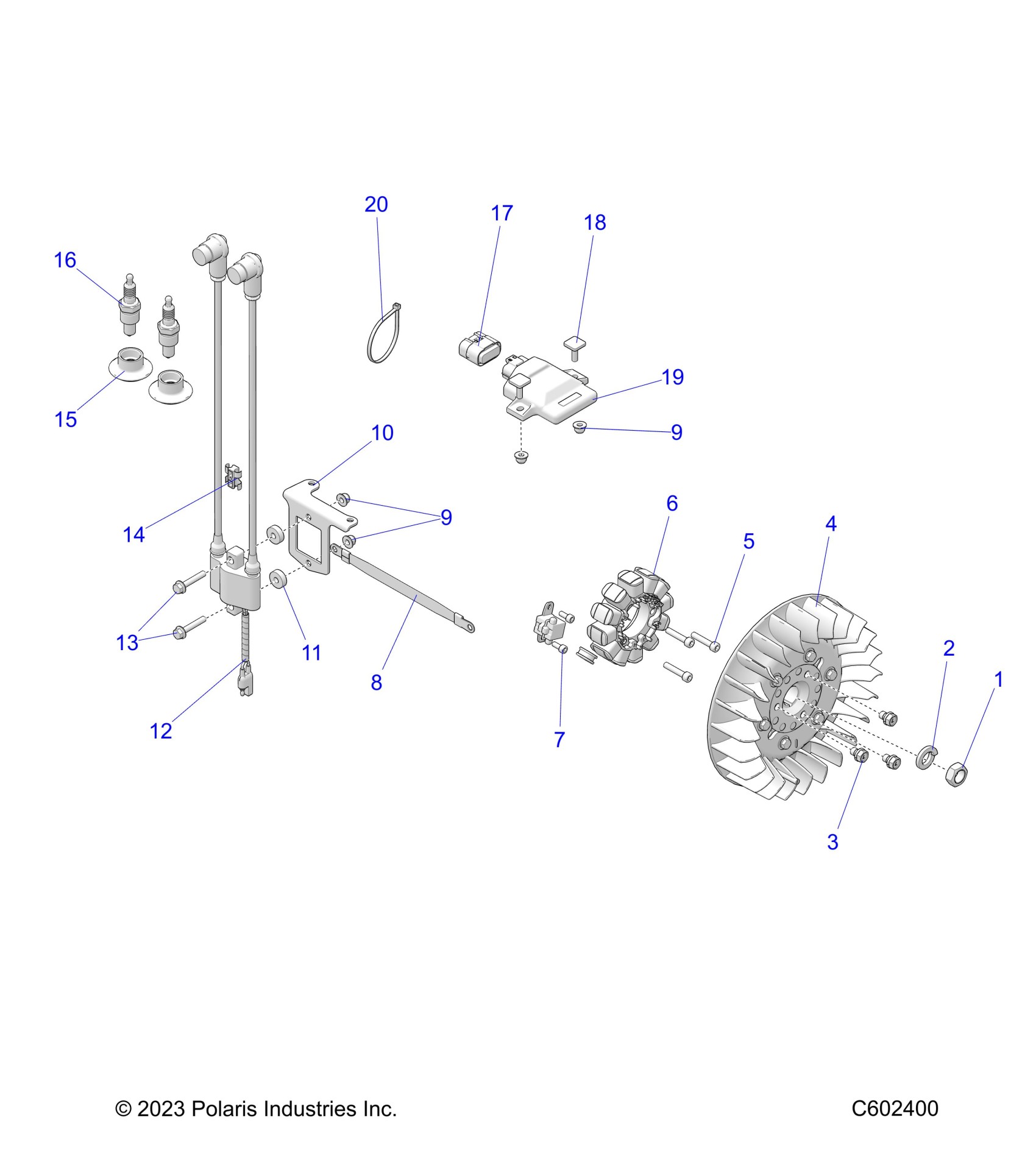

Polaris 550 VOYAGEUR LXT ES/NORTH EDITION (R02) - S25CED5TSL/TSU ELECTRICAL, IGNITION SYSTEM - S25CED5TSL/TSU (C602400) Diagram

Description

Price

JUMPER, STUBBER, E/R W/ES NOT SHOWN

2461060

$8.99

NUT-FLYWHEEL

7547895

$3.99

SPRING-WASHER

7557228

$3.19

BOLT,M8X12

7520784

$2.99

ASM-FLYWHEEL

3023396

$589.99

SCR-M6X1.0X30,HX/SOC/CP-ZPC

7517714

$10.39

ASM-STATOR

3023397

$454.99

SCREW-SH-M5X0.8X12 10.9 ZPC D204

7517276

$7.19

STRAP, GROUNDING, SHORT

2412988

$49.99

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

BRKT., COIL MNT

5256520

$13.75

Washer, Nylon

7555932

$2.39

IGNITION COIL,INDY

4017264

$186.17

BOLT-M6X1.0X35,HXFLG/SH-OLV D

7518612

$4.79

CLIP-T,DUAL 3/16" LINE

7080816

$5.43

GROMMET-SPARK PLUG

5416453

$19.99

SPARK PLUG-NGK BR9ES

3070163

$3.99

HARNESS-CABLE,CDI

4017267

$94.99

SCREW-SPL M6X1.0X20 8.8 ZOD

7520464

$3.99

ASM-CDI CONTROL INDY

2415536

$363.08

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41
