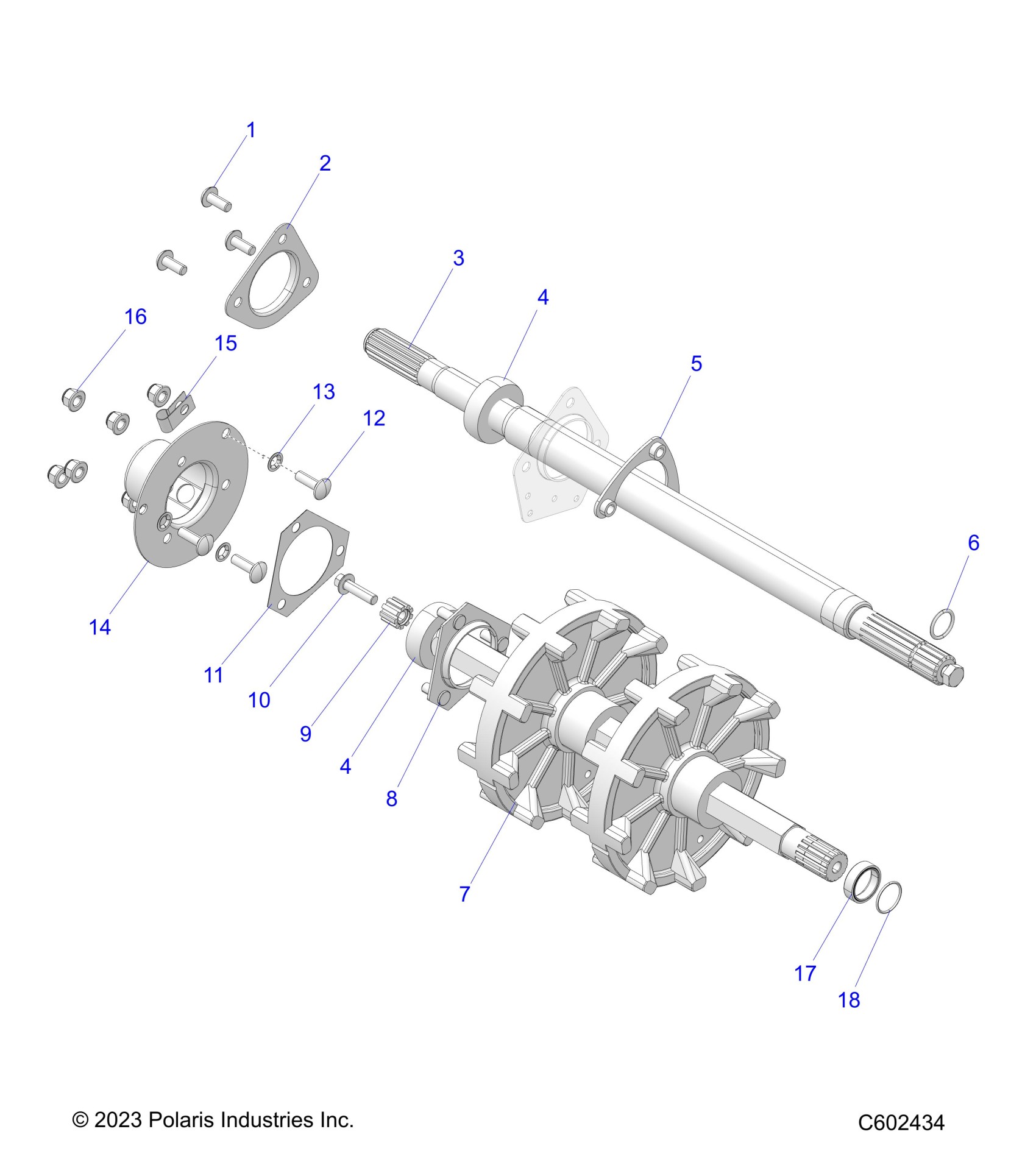

Polaris 550 VOYAGEUR LXT ES/NORTH EDITION (R02) - S25CED5TSL/TSU DRIVE TRAIN, JACKSHAFT and DRIVESHAFT - S25CED5TSL/TSU (C602434) Diagram

#

Description
Price

1

SCR-TXTH-M8X1.25X20 8.8 ZODP30

7519260

$6.39

2

FLANGETTE, 3 BOLT, OFFSET, OUT

5252738

$9.70

3

ASM., JACKSHAFT [INCL. 4]

1332854

$290.46

4

BEARING

3514617

$31.99

4

BEARING

3514617

$31.99

5

ASM., NUT PLATE, JACKSHAFT

1017848

$10.39

6

O-RING

5413563

$1.60

7

ASM., DRIVESHAFT [INCL. 4,8-10]

1590498

$530.22

8

ASM., FLANGETTE W/SCREWS

1016551

$36.41

9

WHEEL, PICKUP, 9 TOOTH

5136619

$32.37

10

SCR-HXFL-M8X1.25X30 8.8 ZPC

7518391

$4.75

11

GASKET, JACKSHAFT, BLACK

5811095

$2.41

12

SCR-RHCAR-M8X1.25X25 8.8 ZOD

7519324

$3.19

13

NUT-5/16-PAL-Y

7547030

$4.79

14

HOUSING, DRIVE PICK UP

5246960

$27.99

15

CLAMP-CABLE

7080367

$2.39

16

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

17

SLEEVE-SEAL

5020588

$23.99

18

O-RING

5410613

$1.99
