- 550 VOYAGEUR LXT ES/NORTH EDITION (R02) - S25CED5TSL/TSU
DRIVE TRAIN, CHAINCASE - S25CED5TSL/TSU (C602406)

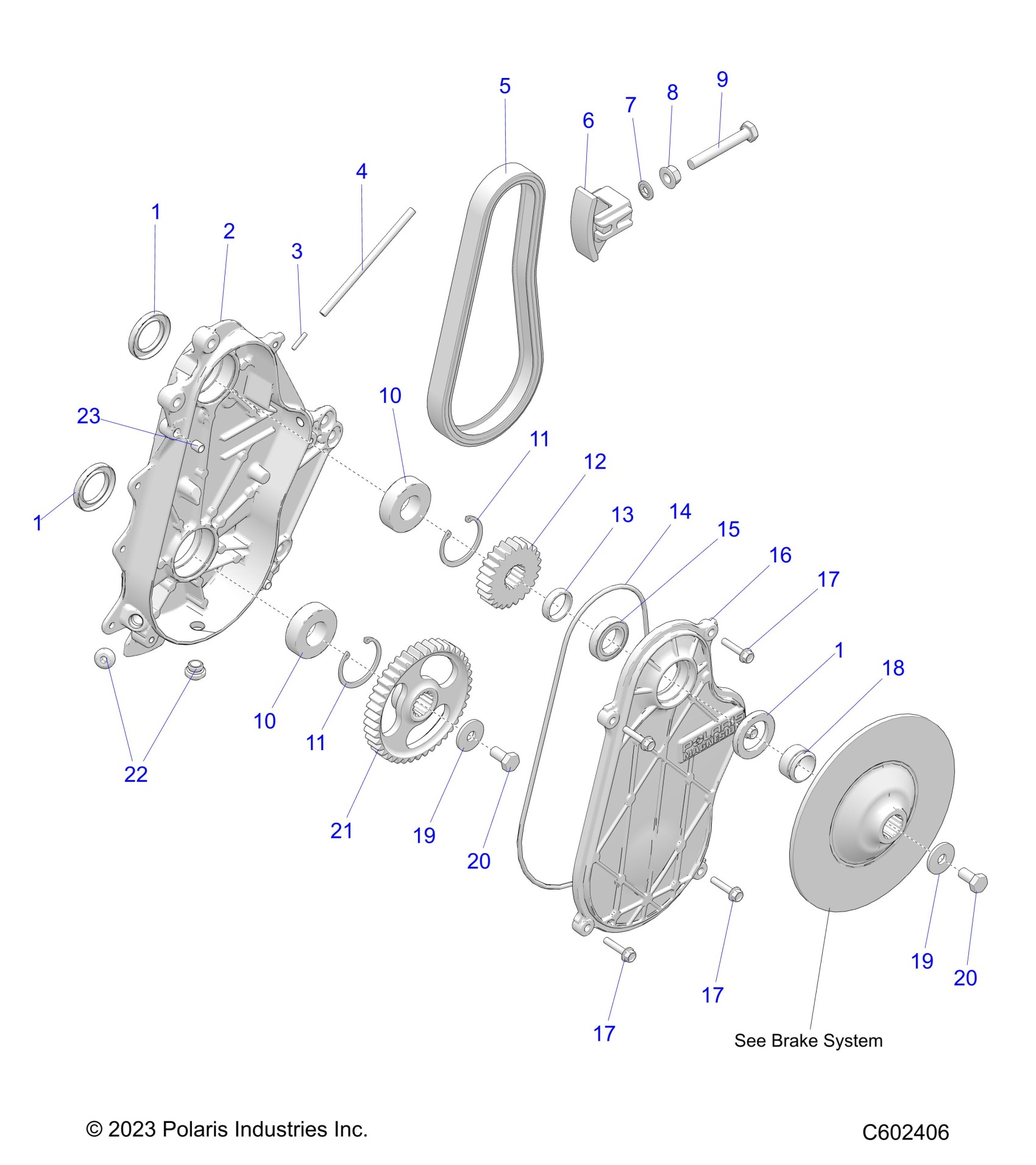

Polaris 550 VOYAGEUR LXT ES/NORTH EDITION (R02) - S25CED5TSL/TSU DRIVE TRAIN, CHAINCASE - S25CED5TSL/TSU (C602406) Diagram
#
Description
Price
1
SEAL-OIL
3610030
$20.22
1
SEAL-OIL
3610030
$20.22
1
SEAL-OIL
3610030
$20.22
2
ASM-CHAINCASE, INTERMD [INCL. 1,3,10,11,22,23]
1333807
$274.99
3
TUBE-VENT .155DIAX.75L
5334764
$28.32
4
LINE, OIL, 600 CM, SERVICE
8450061-600
Unavailable
5
CHAIN, 72P, 3/4W
3221110
$164.99
6
ASM-TIGHTENER,CHAIN,VESPEL
1332427
$79.99
7
WASHER, THREAD SEAL
7556340
$3.19
8
NUT, HEX
7547017
$5.59
9
SCREW
7519587
$3.99
10
BEARING, BALL
3514309
$15.87
10
BEARING, BALL
3514309
$15.87
11
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
11
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
12
Sprocket, 18T 3/4W, 15 Spline
3221094
$44.99
13
SLEEVE, CHAINCASE
5137587
$7.99
14
GASKET, CHAINCASE COVER
5813295
$36.41
15
BEARING, BALL
3514643
$29.99
16
ASM., CHAINCASE COVER [INCL. 1,15]
1332659
$139.99
17
SCR-M6X1.0X30 8.8 HXFL ZTB P30
7521293
$2.39
17
SCR-M6X1.0X30 8.8 HXFL ZTB P30
7521293
$2.39
17
SCR-M6X1.0X30 8.8 HXFL ZTB P30
7521293
$2.39
18
SLEEVE, CHAMFERLESS
5140953
$27.99
19
WASHER, BELLE
7556130
$6.39
19
WASHER, BELLE
7556130
$6.39
20
SCREW
7519004
$3.99
20
SCREW
7519004
$3.99
21
SPROCKET, 42T, 3/4W
3222192
$56.65
22
PLUG, MAGNETIC
7052674
$23.79
23
DWL-HOL,M9X10
7663007
$3.99
