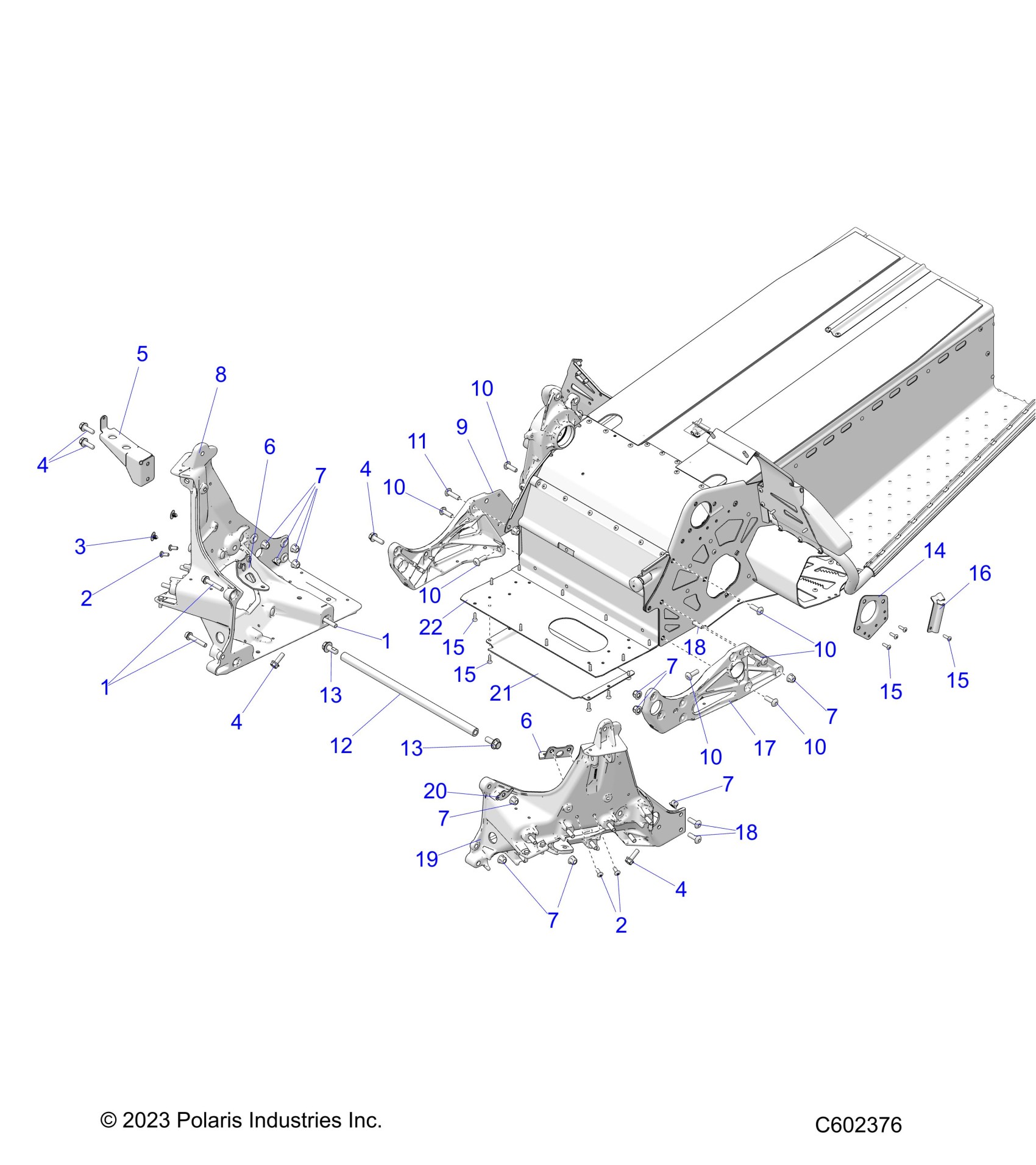

Polaris 550 VOYAGEUR LXT ES/NORTH EDITION (R02) - S25CED5TSL/TSU CHASSIS, BULKHEAD ASM. - S25CED5TSL/TSU (C602376) Diagram

#

Description
Price

-

KIT, LORD, 406 REPAIR KIT, 50 ML [ADHESIVE]

2204171

$294.99

-

KIT, LORD, 406, 50 ML CARTRIDGE [ADHESIVE]

2204400

$74.99

-

KIT, LORD, MIX NOZZLES, 12 PIECE

2204172

$4.99

1

SCREW

7516732

$1.59

1

SCREW

7516732

$1.59

2

SCR-TXPH-M6X1.0X15 GR5 ZOD NYL

7518656

$3.99

2

SCR-TXPH-M6X1.0X15 GR5 ZOD NYL

7518656

$3.99

3

Clip, Dart, Nylon

7670067

$3.99

4

SCREW

7519243

$3.99

4

SCREW

7519243

$3.99

4

SCREW

7519243

$3.99

4

SCREW

7519243

$3.99

5

BRKT-LWR SUPPORT,RESONATOR

5255064

$40.46

6

ASM., BRKT., PITMAN/IDLER SUPPORT

1020246

$13.75

6

ASM., BRKT., PITMAN/IDLER SUPPORT

1020246

$13.75

7

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

7

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

7

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

7

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

7

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

7

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

8

STUD

7519204

$19.99

8

ASM., CLIP, F/C, RH, RACK STEER [INCL. STUDS][REQUIRES ADHESIVE]

1020266

$354.99

9

BRACE, LOWER, RH [REQUIRES ADHESIVE]

5138693

$109.99

10

SCR-M8X1.25X25 8.8TXTR ZOD P80

7518906

$3.19

10

SCR-M8X1.25X25 8.8TXTR ZOD P80

7518906

$3.19

10

SCR-M8X1.25X25 8.8TXTR ZOD P80

7518906

$3.19

10

SCR-M8X1.25X25 8.8TXTR ZOD P80

7518906

$3.19

10

SCR-M8X1.25X25 8.8TXTR ZOD P80

7518906

$3.19

10

SCR-M8X1.25X25 8.8TXTR ZOD P80

7518906

$3.19

11

SCR-M8X1.25X30 8.8 TR/TX ZOD

7518953

$1.59

12

TUBE, CROSS

5137910

$58.08

13

SCR-M10X1.5X25-8.8 HFS ZOD

7518934

$3.99

13

SCR-M10X1.5X25-8.8 HFS ZOD

7518934

$3.99

14

FLANGETTE, 3 BOLT, OFFSET, IN

5252739

$9.70

14

FLANGETTE-3BOLT 0MM OFFSET IN

5252739

$9.70

15

RIVET-3/16-.090-.290

7661637

$1.49

15

RIVET-3/16-.090-.290

7661637

$1.49

15

RIVET-3/16-.090-.290

7661637

$1.49

15

RIVET-3/16-.090-.290

7661637

$1.49

16

CLAMP-SPEED SENSOR WIRE

5266053

$8.79

17

ASM., BRACE, LOWER, LH [REQUIRES ADHESIVE][INCL. SLEEVE]

1017942

$84.99

18

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

18

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

19

STUD

7519204

$19.99

19

ASM., CLIP, F/C, LH, RACK STEER [INCL. STUDS][REQUIRES ADHESIVE]

1020265

$354.99

20

BRACKET, PIPE/CHASSIS

5252680

$5.65

21

VENT, FLOOR

5256780

$40.46

22

FLOOR, BULKHEAD, VENTED

5256779

$29.03
