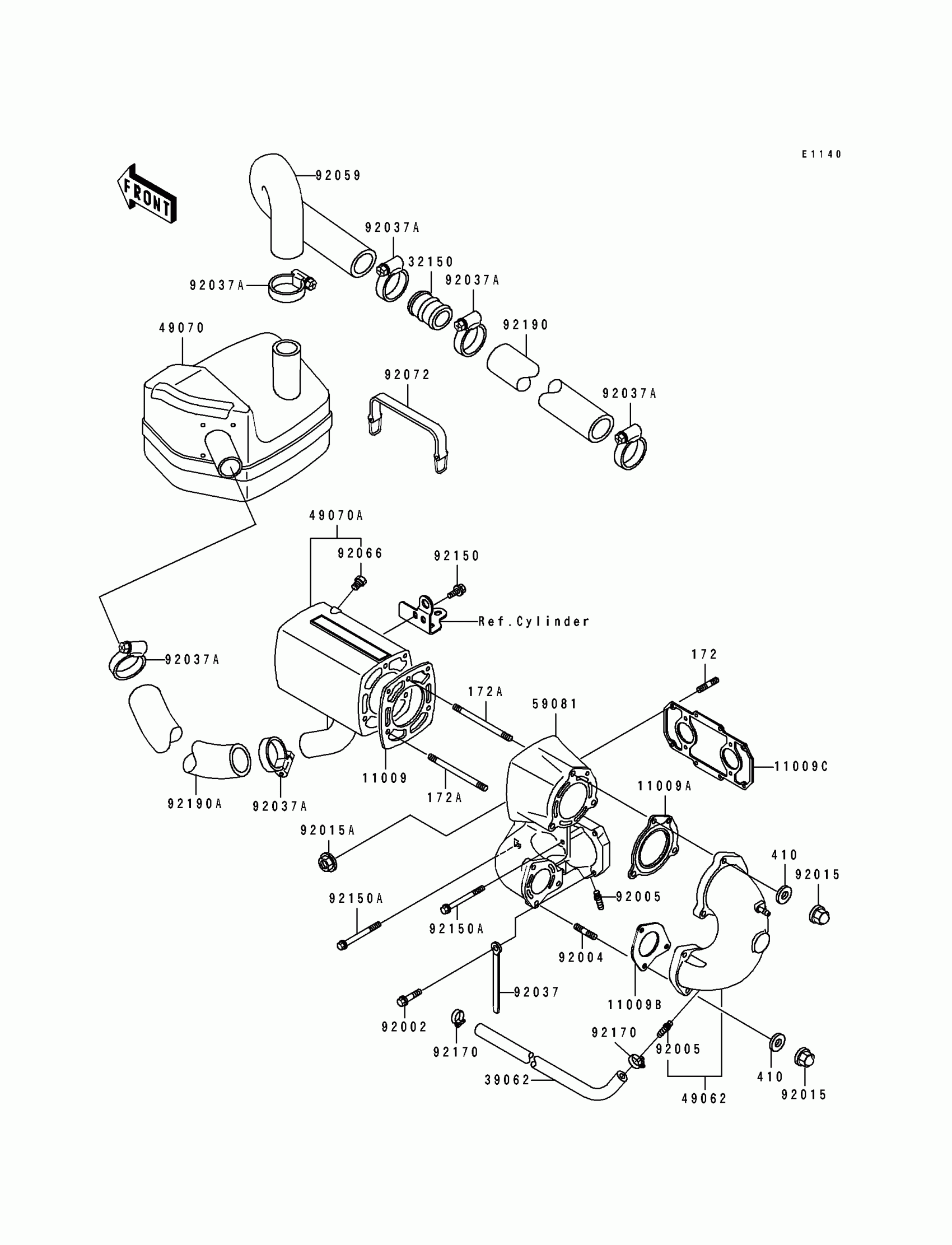

Kawasaki 550 SX Muffler(s) Diagram
#
Description
Price
11009
GASKET,MUFFLER
11009-3776
$28.72
11009A
GASKET,EXHAUST PIPE
11009-3777
$44.65
11009B
GASKET,EXHAUST PIPE
11009-3778
$18.71
11009C
GASKET,EXHAUST MANIFOLD
11009-3779
$27.79
32150
PIPE
32150-3784
Unavailable
39062
HOSE-COOLING
39062-3701
Unavailable
49062
PIPE-COMP-EXHAUST
49062-3704
Unavailable
49070
MUFFLER-COMP,WATER BOX
49070-3702
$94.07
49070A
MUFFLER-COMP
49070-3715
Unavailable
59081
MANIFOLD-EXHAUST
59081-3707
Unavailable
92002
BOLT,6X30
92002-3726
$4.69
92004
STUD,8X27.5
92004-3022
Unavailable
92005
FITTING,HOSE
92005-3712
$10.88
92015
NUT,CAP,8MM
92015-1371
$5.00
92015A
NUT,6MM
92015-3767
$4.69
92037
CLAMP,L=100
92037-3736
$5.52
92037A
CLAMP
92037-509
$5.58
92059
TUBE,EXHAUST
92059-3722
Unavailable
92066
PLUG,CYLINDER HEAD
92066-3001
Unavailable
92072
BAND
92072-511
Unavailable
92150
BOLT,8X16
92150-3722
$7.62
92150A
BOLT,6X73
92150-3776
Unavailable
92170
CLAMP
92170-3729
Unavailable
92190
TUBE,L=860
92190-3718
Unavailable
92190A
TUBE,39X51X455
92190-3921
$38.26
172
BOLT-STUD
172R0625
$6.58
172A
BOLT-STUD,8X120
172R08120
Unavailable
410
WASHER-PLAIN-SMALL,8MM
410S0800
$2.58
