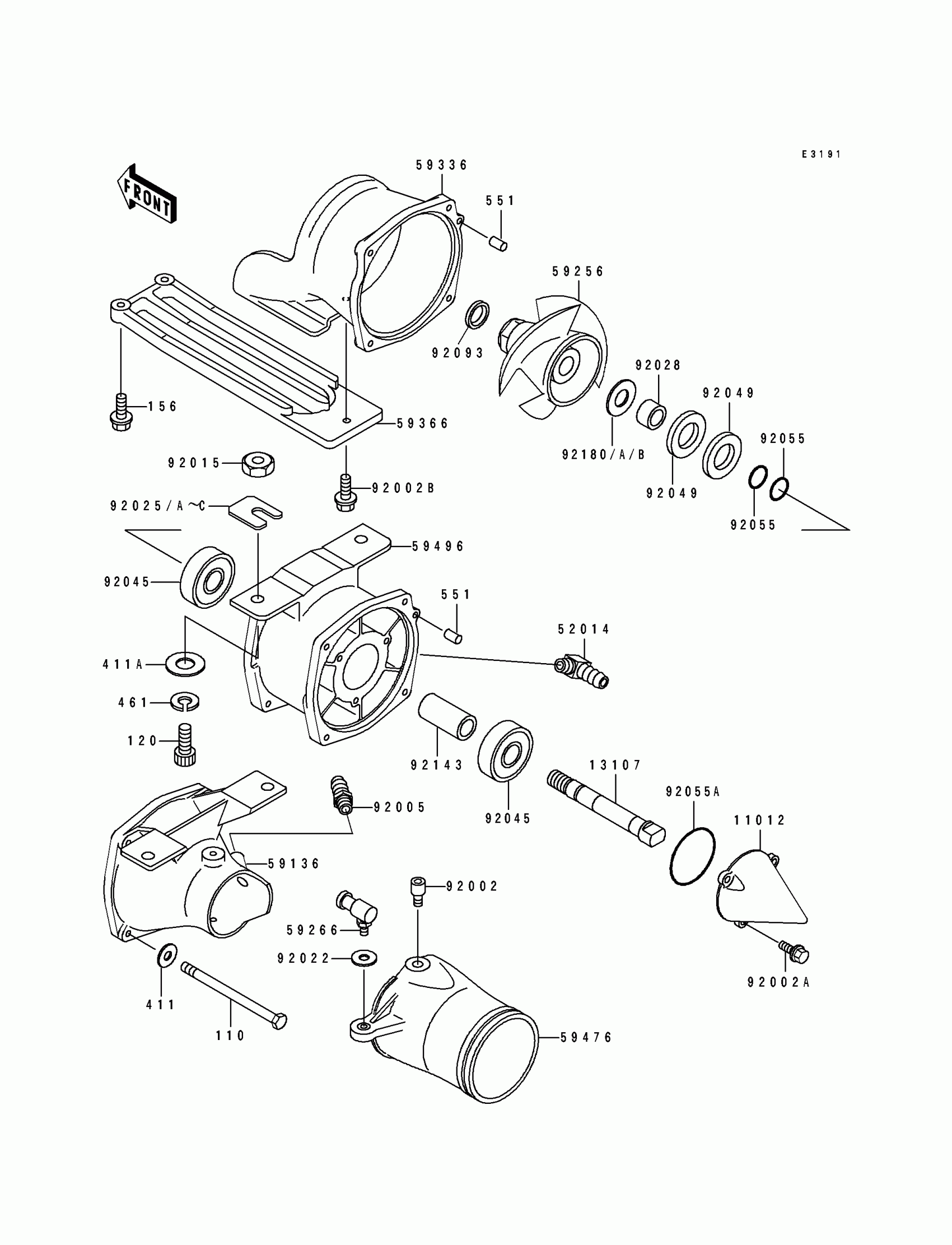

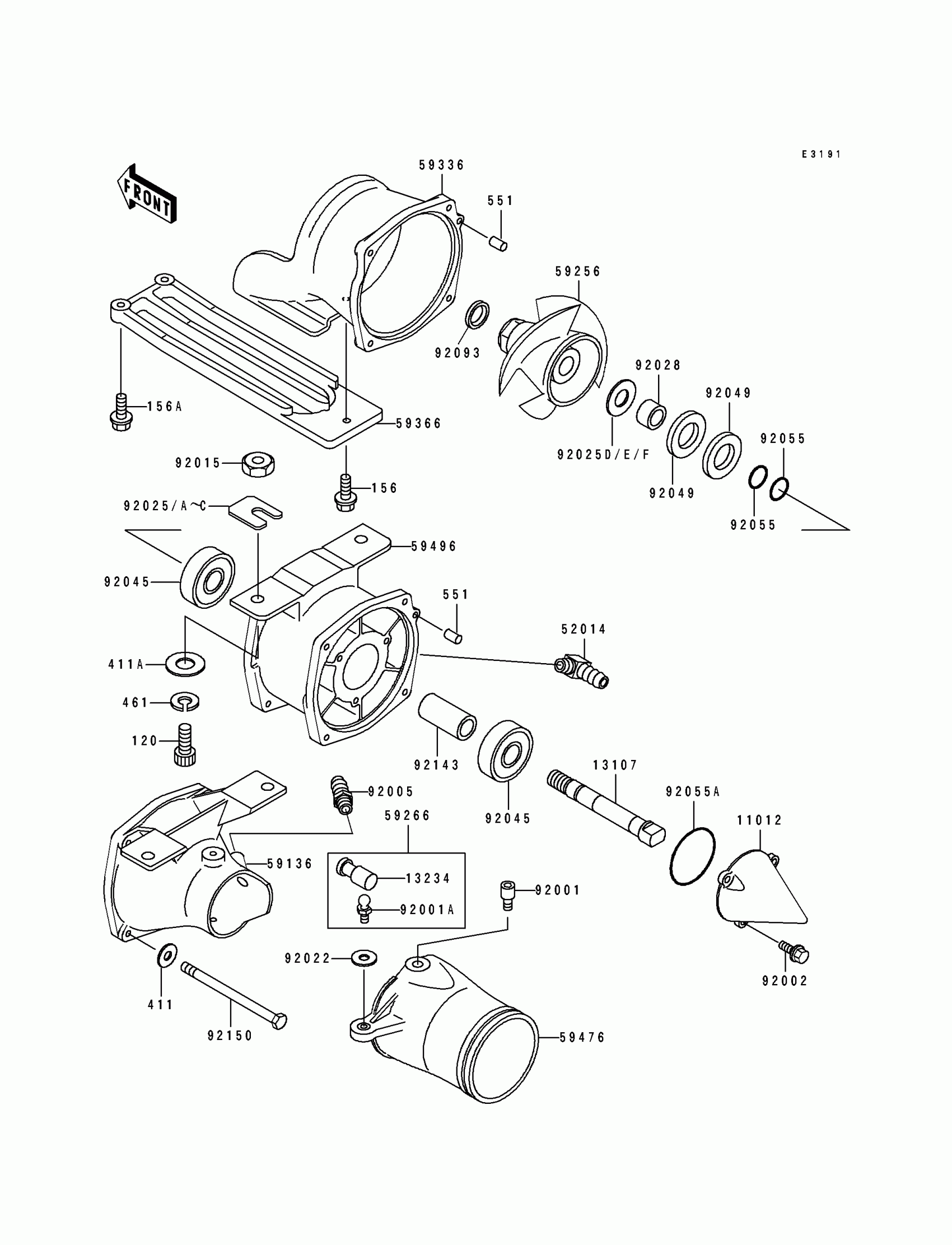

Kawasaki 550 SX Jet Pump Diagram
#
11012
CAP,JET PUMP
11012-3738
Unavailable
13107
SHAFT,JET PUMP
13107-3721
$77.79
52014
ELBOW
52014-3002
$34.82
59136
NOZZLE-PUMP
59136-3713
Unavailable
59256
IMPELLER
59256-3711
Unavailable
59266
JOINT-BALL
59266-3701
$66.16
59336
CASE-PUMP
59336-3702
Unavailable
59366
GRATE
59366-3001
Unavailable
59476
NOZZLE-STRG
59476-3702
Unavailable
59496
VANE-GUIDE
59496-3702
$491.52
92002
BOLT,SOCKET,6X11
92001-3701
$14.67
92002A
BOLT,6X16
92002-3728
$4.69
92002B
BOLT,6X12
92002-3763
$4.69
92005
FITTING,HOSE
92005-3001
$10.88
92015
NUT,10MM
92015-3005
Unavailable
92022
WASHER
92022-567
$2.67
92025
SHIM,T=0.3MM
92025-3701
Unavailable
92025A
SHIM,T=0.5MM
92025-3702
Unavailable
92025B
SHIM,T=1.0MM
92025-3703
Unavailable
92025C
SHIM,T=1.5MM
92025-3704
Unavailable
92028
BUSHING,17X25X15
92028-3717
$34.49
92045
BEARING-BALL,#63032RD
92045-3706
$39.98
92049
SEAL-OIL,TCV-25476
92049-3711
$8.12
92055
RING-O,13X1.9
92055-1021
$7.62
92055A
RING-O
92055-3706
$4.45
92093
SEAL
92093-3702
Unavailable
92143
COLLAR,17.4X25.4X53
92143-3708
$24.05
92180
SHIM,T=1.0
92025-3717
Unavailable
92180A
SHIM,T=1.5
92025-3718
Unavailable
92180B
SHIM,T=2.0
92025-3719
Unavailable
110
BOLT,6X125
110R06125
$8.80
120
BOLT-SOCKET
120R1025
$9.17
156
BOLT-WP,6X25
156R0625
$4.76
411
WASHER-PLAIN,6MM
411S0600
$2.06
411A
WASHER-PLAIN,10MM
411S1000
$2.67
461
WASHER-SPRING,10MM
461S1000
$1.03
551
PIN-DOWEL
551R0612
$4.69
