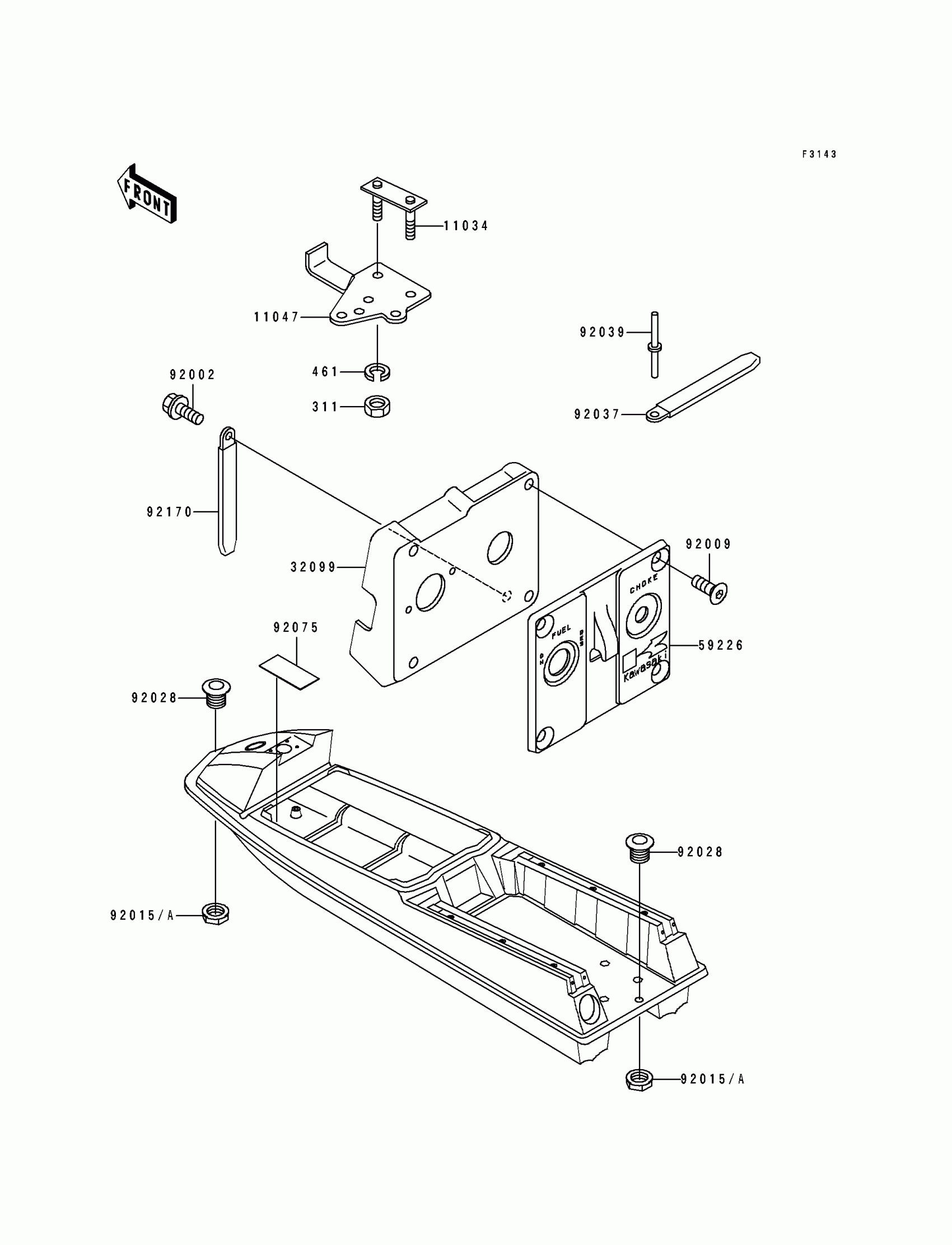

Kawasaki 550 SX Hull Fittings Diagram

Description

Price

11034

BRACKET

11034-3701

Unavailable

11047

BRACKET,FUEL FILTER

11047-3743

Unavailable

32099

CASE,FUEL TAP

32099-3752

$153.63

59226

PANEL-CONTROL

59226-3703

Unavailable

92002

BOLT,6X12

92002-3763

$4.69

92009

SCREW-COUNTERSUNK,8X22

92009-3004

$7.49

92015A

NUT,26MM

92015-3840

$9.98

92028

BUSHING

92028-3734

$9.98

92037

CLAMP,L=150

92037-3741

Unavailable

92039

RIVET

92039-3702

Unavailable

92075

DAMPER,MUFFLER

92075-522

Unavailable

92170

CLAMP

92170-3705

$8.09

311

NUT-HEX,6MM

311R0600

$0.70

461

WASHER-SPRING,6MM

461S0600

$1.07
