Description

Price

13091

HOLDER,SWITCH

13091-3726

$27.50

14024

COVER,THROTTLE LEVER

14024-3701

Unavailable

21083

ARM,THROTTLE LEVER

21083-3701

$15.65

27004

SWITCH-ASSY

27004-3002

$249.12

27010

SWITCH,STOP&START

27010-3708

$211.74

32085

STOPPER

32085-3705

$4.83

32085A

STOPPER

32085-3709

Unavailable

32099

CASE,FR,SWITCH

32099-3724

Unavailable

32099A

CASE,LWR,SWITCH

32099-3725

$46.93

32099B

CASE,UPP,SWITCH

32099-3726

$34.87

39063

HOUSING-CONTROL,UPP

39063-3703

Unavailable

39063A

HOUSING-CONTROL,LWR

39063-3707

Unavailable

39074

LEVER-ASSY-THROTTLE

39074-3711

$226.26

39075

LEVER-THROTTLE

39075-3704

Unavailable

43049

PACKING,THROTTLE LEVER

43049-3701

$7.69

46003

HANDLE

46003-3713

Unavailable

92002

BOLT,SOCKET,3X10

92002-3751

$5.46

92009

SCREW,6X16

92009-3703

$4.31

92027

COLLAR,THROTTLE LEVER

92027-3704

Unavailable

92059

TUBE,SPIRAL

92059-3010

$5.54

92081

SPRING,THROTTLE LEVER RETURN

92081-3702

$6.52

156

BOLT-WP,5X25

156R0525

$5.22

157

BOLT-WSP,5X12

157R0512

$2.78

220

SCREW-PAN-CROS,5X20

220R0520

$4.72

221

SCREW-CSK-CROS,6X25

221R0625

$4.45

410

W-PLAIN-S,5MM

410S0500

$1.59

670

O RING,8MM

670B1508

$1.29

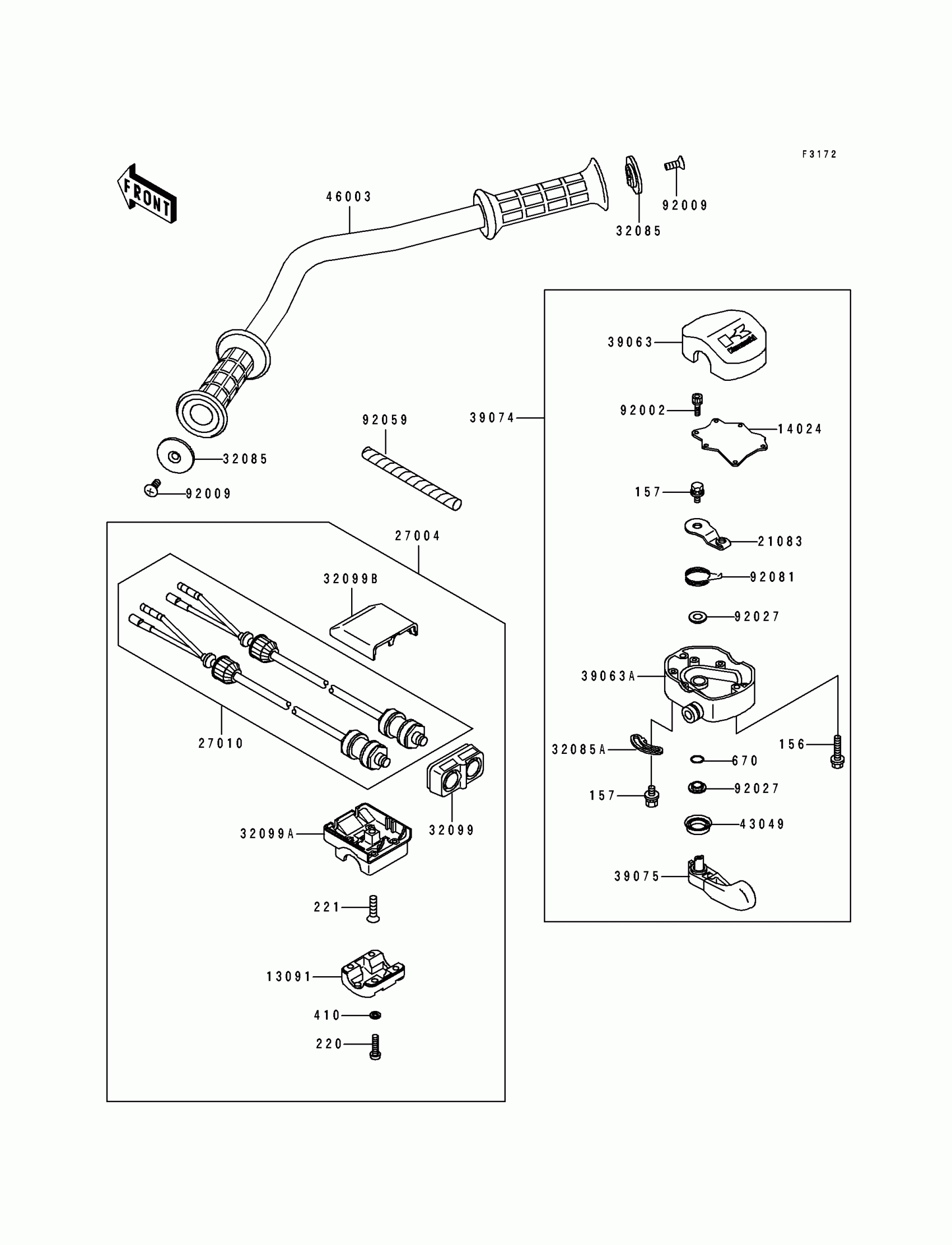

Kawasaki 550 SX Handlebar Diagram

HOLDER,SWITCH

COVER,THROTTLE LEVER

ARM,THROTTLE LEVER

SWITCH-ASSY

SWITCH,STOP&START

STOPPER

STOPPER

CASE,FR,SWITCH

CASE,LWR,SWITCH

CASE,UPP,SWITCH

HOUSING-CONTROL,UPP

HOUSING-CONTROL,LWR

LEVER-ASSY-THROTTLE

LEVER-THROTTLE

PACKING,THROTTLE LEVER

HANDLE

BOLT,SOCKET,3X10

SCREW,6X16

COLLAR,THROTTLE LEVER

TUBE,SPIRAL

SPRING,THROTTLE LEVER RETURN

BOLT-WP,5X25

BOLT-WSP,5X12

SCREW-PAN-CROS,5X20

SCREW-CSK-CROS,6X25

W-PLAIN-S,5MM

O RING,8MM
