Description

Price

11012

CAP

11012-3012

$9.11

11012A

CAP.

59176-517-YR

Unavailable

21003

STATOR

21003-3012

Unavailable

21049

COIL-EXCITING

21049-3007

Unavailable

21050

FLYWHEEL

21050-2169

Unavailable

26001

HARNESS,WIRING

26001-3006

Unavailable

26011

WIRE-LEAD,BLACK

26011-3006

Unavailable

59026

COIL-PULSING

59026-3008

$126.07

59031

COIL-CHARGING

59031-3002

Unavailable

59221

CONNECTOR-CORD

59221-506

$11.17

92002

BOLT,6X35

92002-3715

$6.61

92009

SCREW,5X38

92009-3008

Unavailable

92009A

SCREW,5X34

92011-530

Unavailable

92009B

SCREW,4X8

92011-560

Unavailable

92015

NUT,20MM

92015-535

$7.64

92022

WASHER

92022-544

$2.67

92022A

WASHER,LOCK,20MM

92022-569

$4.50

92037

CLAMP

92037-520

Unavailable

92037A

CLAMP

92037-547

Unavailable

92055

RING-O,35.2X1.9

92055-520

$5.31

92059

TUBE,10X345

92059-3032

$20.47

92071

GROMMET

92071-3001

Unavailable

92143

COLLAR

92027-3014

$8.43

220

SCREW-PAN-CROS

220B0520

$0.68

461

WASHER SPRING 5MM

461F0500

$0.69

510

WOODRUFF KEY

510A5200

$2.82

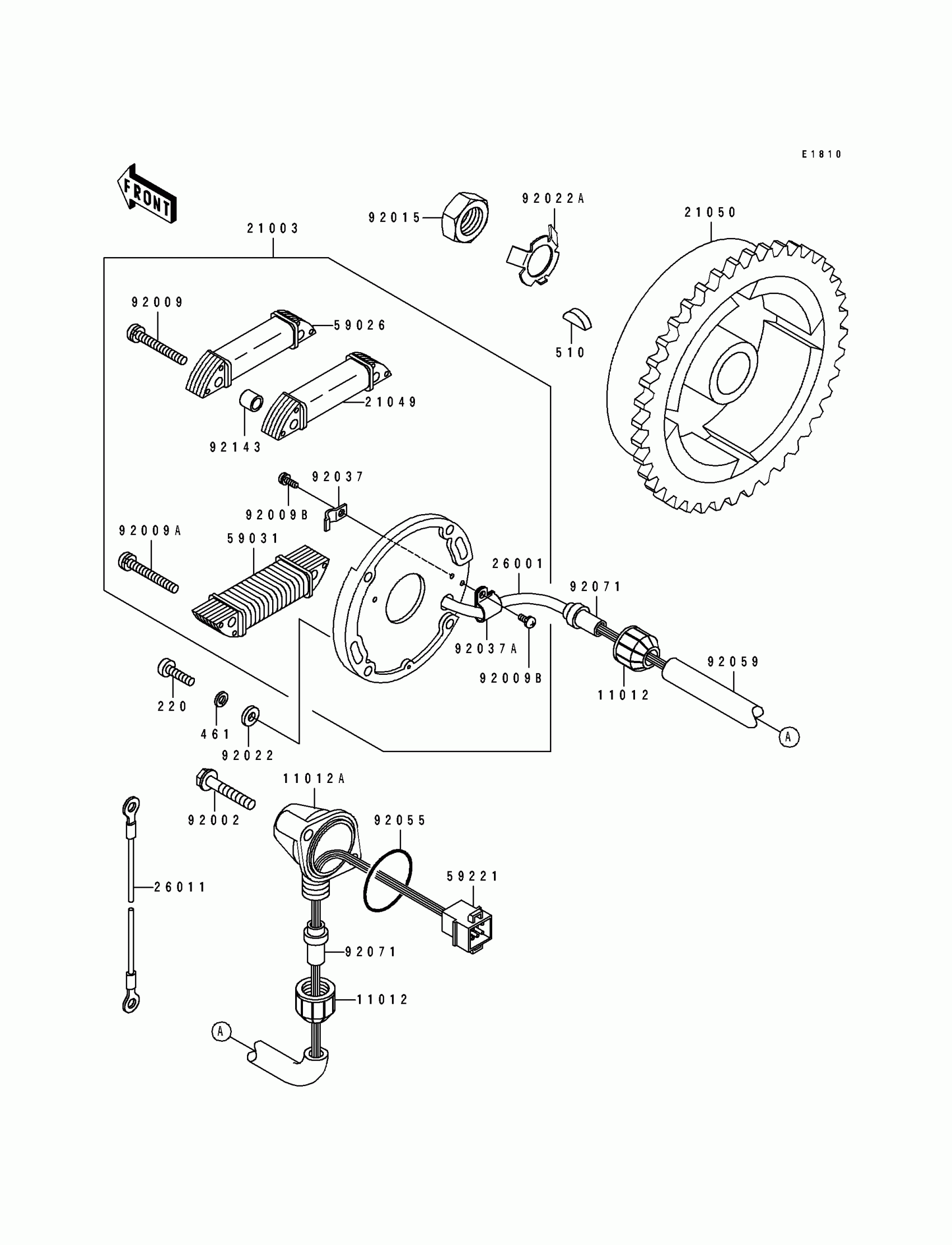

Kawasaki 550 SX Generator Diagram

CAP

CAP.

STATOR

COIL-EXCITING

FLYWHEEL

HARNESS,WIRING

WIRE-LEAD,BLACK

COIL-PULSING

COIL-CHARGING

CONNECTOR-CORD

BOLT,6X35

SCREW,5X38

SCREW,5X34

SCREW,4X8

NUT,20MM

WASHER

WASHER,LOCK,20MM

CLAMP

CLAMP

RING-O,35.2X1.9

TUBE,10X345

GROMMET

COLLAR

SCREW-PAN-CROS

WASHER SPRING 5MM

WOODRUFF KEY
