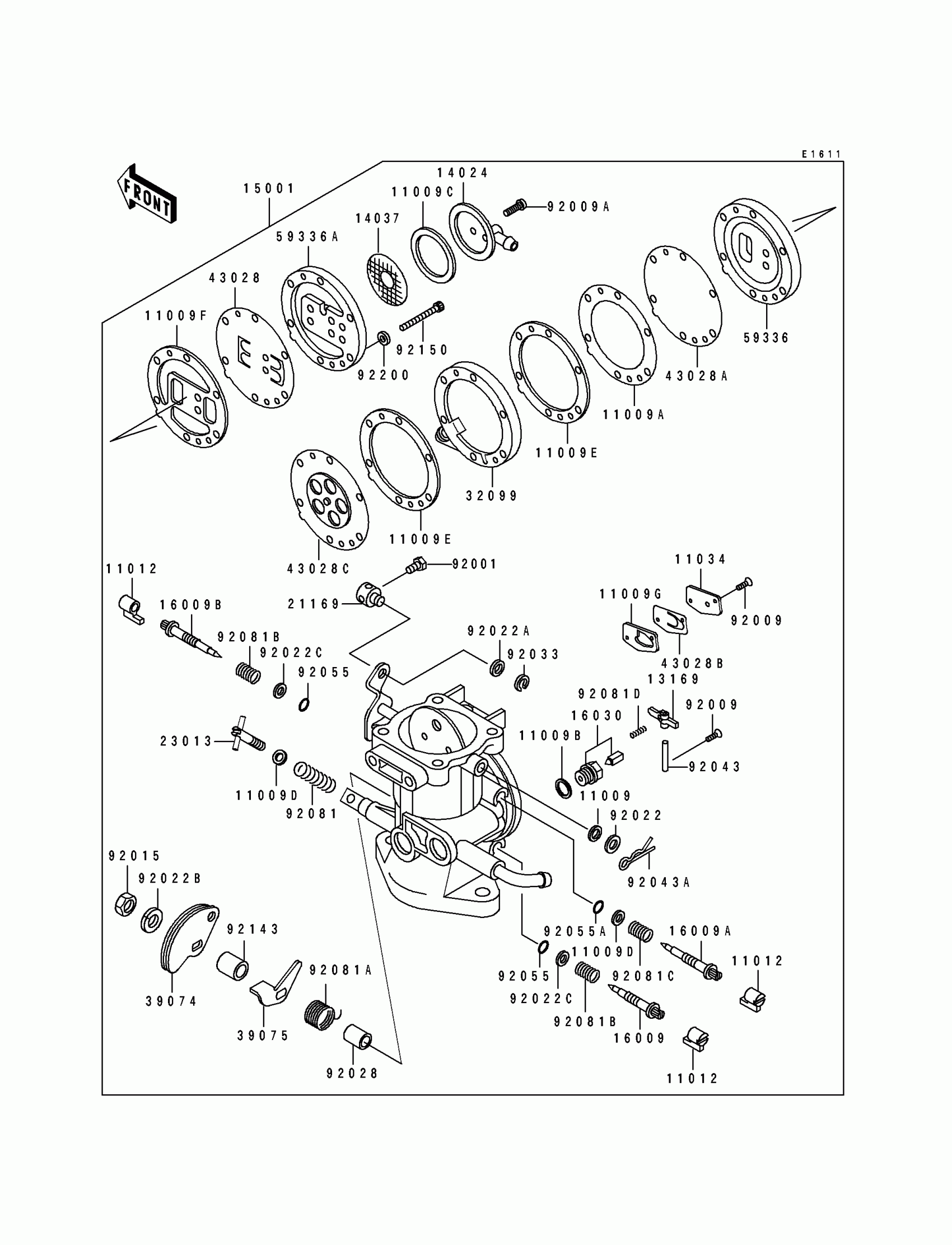

Kawasaki 550 SX Carburetor Diagram
#
11009
PACKING,CHOKE SHAFT
11009-2465
Unavailable
11009A
GASKET
11009-3036
Unavailable
11009B
WASHER FLOAT VLV SEAT
16029-004
$3.89
11009C
GASKET
92065-526
$15.19
11009D
WASHER
92065-528
Unavailable
11009E
GASKET
92065-531
Unavailable
11009F
GASKET
92065-532
Unavailable
11009G
GASKET
92065-544
Unavailable
11012
CAP,JET NEEDLE
11012-3739
Unavailable
11034
PLATE-CARB. SIDE
59086-541
$14.92
13169
ARM
59001-506
Unavailable
14024
COVER-CARB. SIDE
59036-530
$14.79
14037
FILTER
14037-504
$15.93
15001
CARBURETOR-ASSY
15001-3753
Unavailable
16009
NEEDLE-JET
16009-3708
$39.19
16009A
NEEDLE-JET,HIGH SPEED
16009-3709
Unavailable
16009B
NEEDLE-JET
16009-3710
Unavailable
16030
VALVE-FLOAT,2.0MM
16030-2066
$56.16
21169
TERMINAL,CHOKE SHAFT
21169-3008
Unavailable
23013
SCREW,THROTTLE STOP
23013-2051
$34.87
32099
BODY,DIAPHRAGM(1)
59021-514
$140.05
39074
LEVER-ASSY-THROTTLE,THROTTLE
39074-3704
$45.84
39075
LEVER-THROTTLE,STOP
39075-2104
$11.72
43028
DIAPHRAGM,PUMP
43028-3001
Unavailable
43028A
DIAPHRAGM,PUMP
43028-3002
Unavailable
43028B
DIAPHRAGM,CHECK SEAT
51069-501
Unavailable
43028C
DIAPHRAGM,MAIN
51069-502
$8.87
59336
BODY,DIAPHRAGM(2)
59336-3002
Unavailable
59336A
BODY,DIAPHRAGM(3)
59336-3003
$77.43
92001
BOLT,4X8
92001-3026
Unavailable
92009
SCREW
92009-3714
Unavailable
92009A
SCREW 4X12
92011-510
$7.65
92015
NUT,THROTTLE LEVER
92015-3717
$6.41
92022
WASHER,CHOKE SHAFT
92022-2221
$3.34
92022A
WASHER,PLAIN,6NYLON
92022-3020
Unavailable
92022B
WASHER,THROTTLE LEVER
92022-3722
Unavailable
92022C
WASHER
92022-537
Unavailable
92028
BUSHING,THRTLE SHAFT
92028-514
$26.24
92033
CIRCLIP,5M/M,SUS304
92033-3004
Unavailable
92043
FLOAT PIN
16032-006
$7.29
92043A
PIN,SNAP
92043-2121
$4.56
92055
"0" RING
92055-510
Unavailable
92055A
RING-O
92055-511
$7.29
92081
SPRING,CABLE PULLY
16040-022
Unavailable
92081A
SPRING,THROTTLE SHAFT
92081-2336
Unavailable
92081B
SPRING
92081-528
Unavailable
92081C
SPRING
92081-534
Unavailable
92081D
SPRING
92081-536
Unavailable
92143
COLLAR,THROTTLE SHAFT
92027-2098
$23.59
92150
BOLT
92150-3757
$11.10
92200
WASHER
92022-3758
$4.58
