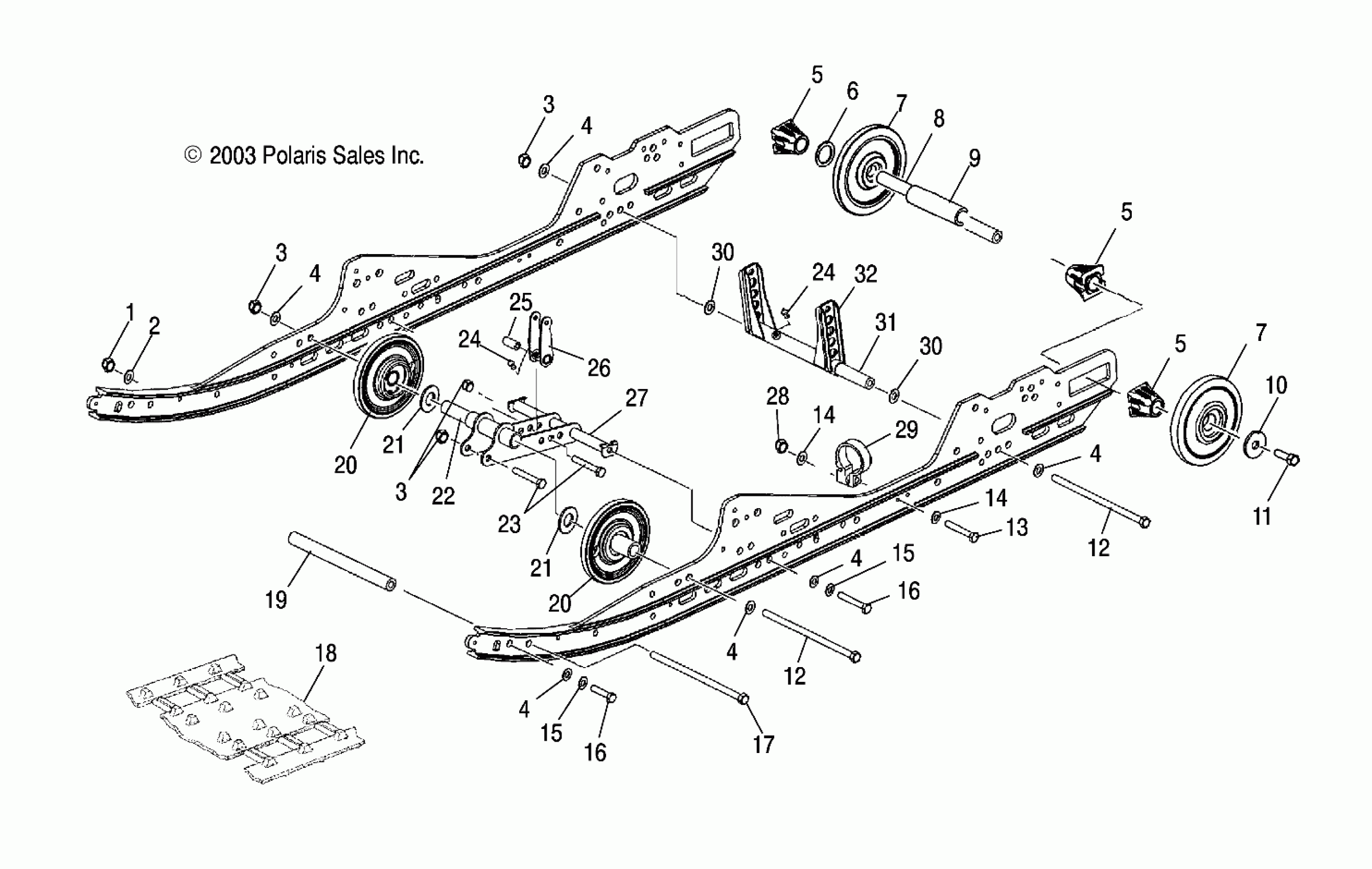

Polaris 550 PRO X FAN - S04NX5BS/BE SUSPENSION - S04NX5BS/BE (4988578857B09) Diagram

#

Description
Price

1

Nut, Nylok

7547217

$3.99

2

WASHER

7558302

$1.59

3

Nut, Nylok

7542439

$1.49

3

Nut, Nylok

7542439

$1.49

3

Nut, Nylok

7542439

$1.49

4

Washer, Flat

7555806

$1.49

4

Washer, Flat

7555806

$1.49

4

Washer, Flat

7555806

$1.49

4

Washer, Flat

7555806

$1.49

4

Washer, Flat

7555806

$1.49

4

Washer, Flat

7555806

$1.49

5

SPACER-IDLER

5432535

$11.99

5

SPACER-IDLER

5432535

$11.99

5

SPACER-IDLER

5432535

$11.99

6

BUSHING

7555918

$1.59

7

RING-RETAINING

7710444

$8.79

7

ASM., WHEEL

1594087

$72.84

7

Bearing

3514012

Unavailable

7

RING-RETAINING

7710444

$8.79

7

ASM., WHEEL

1594087

$72.84

7

Bearing

3514012

Unavailable

8

Shaft, Idler

5132066

$43.99

9

SPACER-IDLER, LONG

5333285

$11.99

10

WASHER

7556130

$6.39

11

BOLT

7517731

$1.49

12

SCREW

7517921

$23.99

12

SCREW

7517921

$23.99

13

BOLT

7515319

$4.79

14

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

14

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

15

Washer, Spring Lock

7552603

$1.49

15

Washer, Spring Lock

7552603

$1.49

16

Screw

7517247

$3.19

16

Screw

7517247

$3.19

17

Screw

7517996

Unavailable

18

CLIP, GUIDE

5222840

Unavailable

18

Track

5411379

$749.99

19

Shaft, Pivot Arm

5020723

$29.99

20

Asm., Wheel, Bogie

1590368

$72.84

20

Asm., Wheel, Bogie

1590368

$72.84

21

Spacer

5133889

Unavailable

21

Spacer

5133889

Unavailable

22

Shaft

5133232

$28.32

23

SCREW

7515417

$4.79

24

FITTING-LUBRICATION 1/4-28

7080424

$4.79

24

FITTING-LUBRICATION 1/4-28

7080424

$4.79

25

Bushing

5133233

$11.99

26

Arm, Shock Pivot

1541638-067

$49.59

27

Mount, Shock

1541711-067

$109.99

28

NUT-5/16-18 NYLOK-Y

7542324

$1.49

29

CLAMP, RESERVOIR

5132832

$23.99

30

Washer, Flat

7555893

$1.49

30

Washer, Flat

7555893

$1.49

31

SHAFT

5334026

$28.32

32

Arm, Pivot, Rear

1541713-067

$254.99
