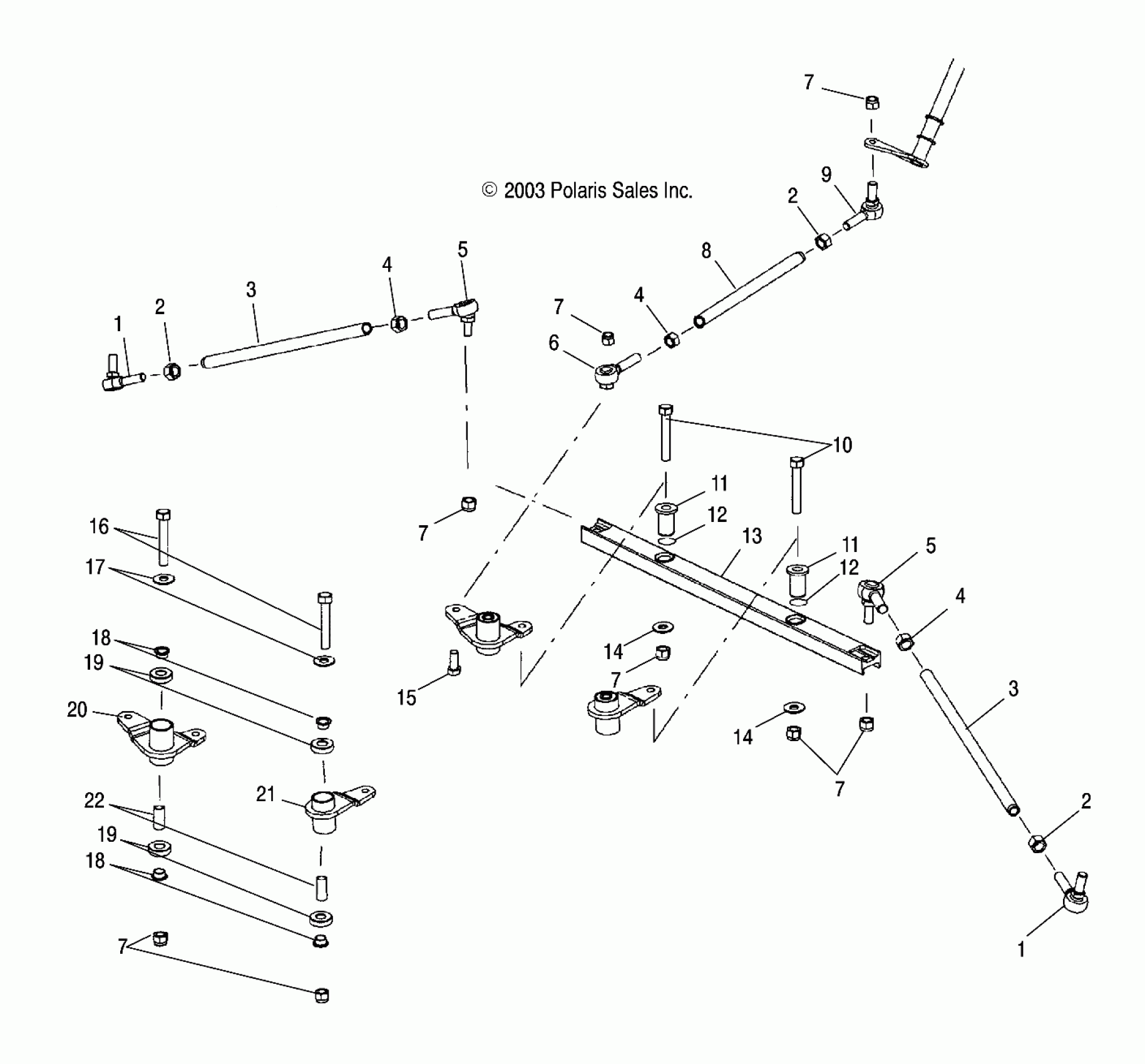

Polaris 550 PRO X FAN - S04NX5BS/BE STEERING - S04NX5BS/BE (4988578857B03) Diagram

#

Description
Price

1

Rod End, RH

7061057

$48.56

1

Rod End, RH

7061057

$48.56

2

Nut, Hex, RH

7542401

$2.39

2

Nut, Hex, RH

7542401

$2.39

2

Nut, Hex, RH

7542401

$2.39

3

Tie Rod

5333983

Unavailable

3

Tie Rod

5333983

Unavailable

4

NUT, LH

7542424

$1.49

4

NUT, LH

7542424

$1.49

4

NUT, LH

7542424

$1.49

5

Rod End, LH

7061055

$48.56

5

Rod End, LH

7061055

$48.56

6

Rod End, LH

7061083

$48.56

7

Nut, Nylok

7542439

$1.49

7

Nut, Nylok

7542439

$1.49

7

Nut, Nylok

7542439

$1.49

7

Nut, Nylok

7542439

$1.49

7

Nut, Nylok

7542439

$1.49

7

Nut, Nylok

7542439

$1.49

8

Rod, Draglink

5333982-067

$36.83

9

ROD END, RH

7061084

$48.56

10

SCREW

7517583

$4.35

11

Bushing, Spacer, Steering, Rack

5134141

Unavailable

11

Bushing, Spacer, Steering, Rack

5134141

Unavailable

12

O-RING

5411220

$6.46

12

O-RING

5411220

$6.46

13

Asm., Steering Rack

1821157

$113.32

14

WASHER

7555983

Unavailable

14

WASHER

7555983

Unavailable

15

Bolt

7512404

$3.99

16

Screw

7512435

$3.99

17

Washer, Flat

7555797

$3.99

18

BUSHING, REDUCER

5132106

$7.99

18

BUSHING, REDUCER

5132106

$7.99

19

Bearing, Ball

3514320

$15.99

19

Bearing, Ball

3514320

$15.99

20

Asm., Pitman Arm [Incl. 18,19,22]

1821043

$131.99

21

Asm., Idler Arm [Incl. 18,19,22]

1821045

$148.79

22

Tube, Spacer, Pitman/Idler Arm

5133057

$5.83
