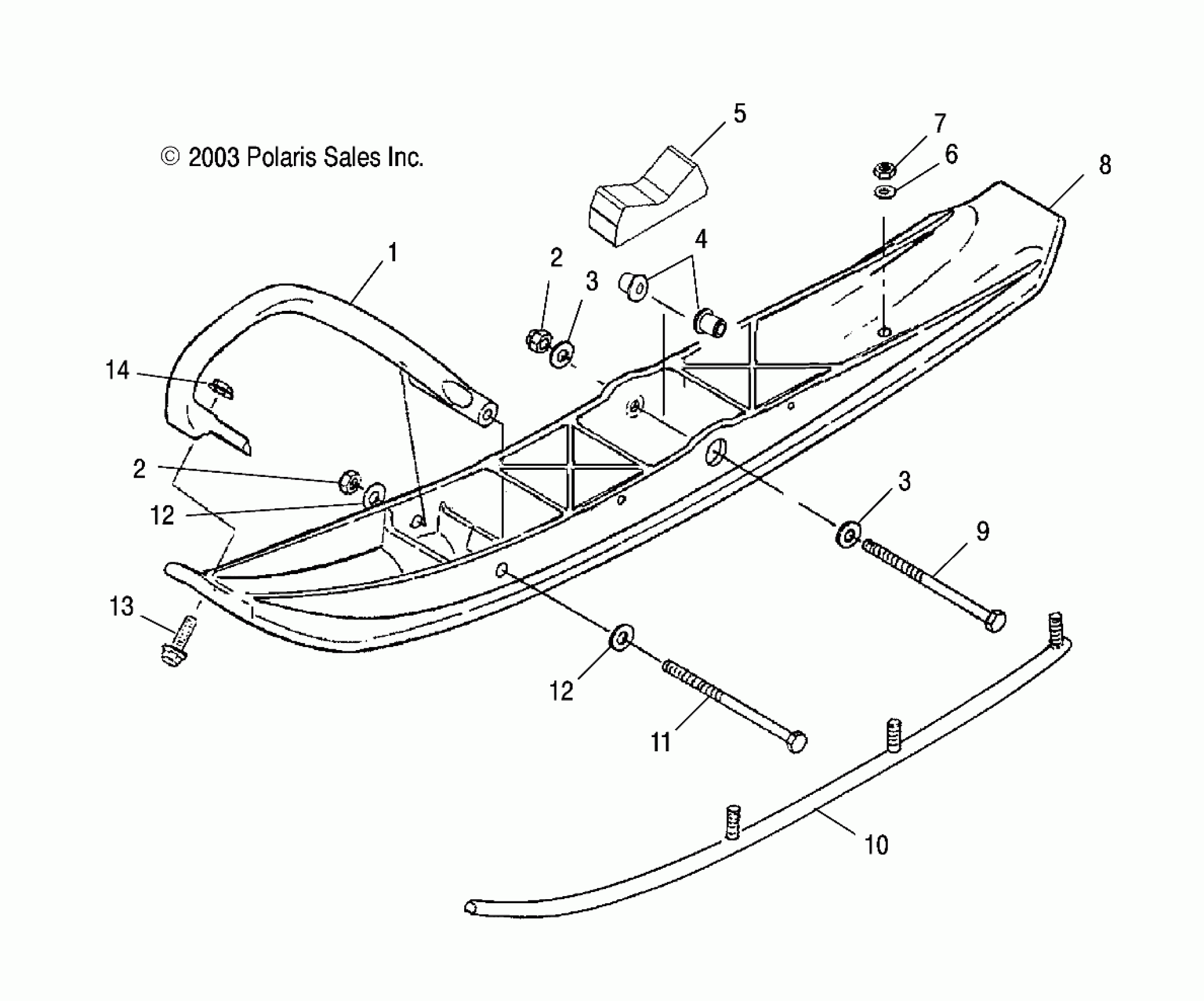

Polaris 550 PRO X FAN - S04NX5BS/BE SKI - S04NX5BS/BE (4988578857B02) Diagram

#

Description
Price

1

Toe, Ski, Plastic, Red

5434165-293

$40.46

2

Nut, Nylok

7542439

$1.49

2

Nut, Nylok

7542439

$1.49

3

WASHER

7556130

$6.39

3

WASHER

7556130

$6.39

4

Bushing

5132637

$19.99

5

Stop, Ski, Rubber

5412018

$24.27

6

Washer, Flat

7556175

$5.99

7

NUT-5/16-18 NYLOK-Y

7542324

$1.49

8

Asm., Ski

1821327-070

$236.99

9

Screw

7517968

$9.59

10

Kit, Skag, Carbide, 4 Inch, 60 Degree [Pair]

2871688

$63.99

11

Bolt

7515514

$7.19

12

WSHR-.813X.406X.105-Y

7555832

$2.39

12

WSHR-.813X.406X.105-Y

7555832

$2.39

13

Bolt

7515307

$3.99

14

Nut, Flange

7542321

$1.49
