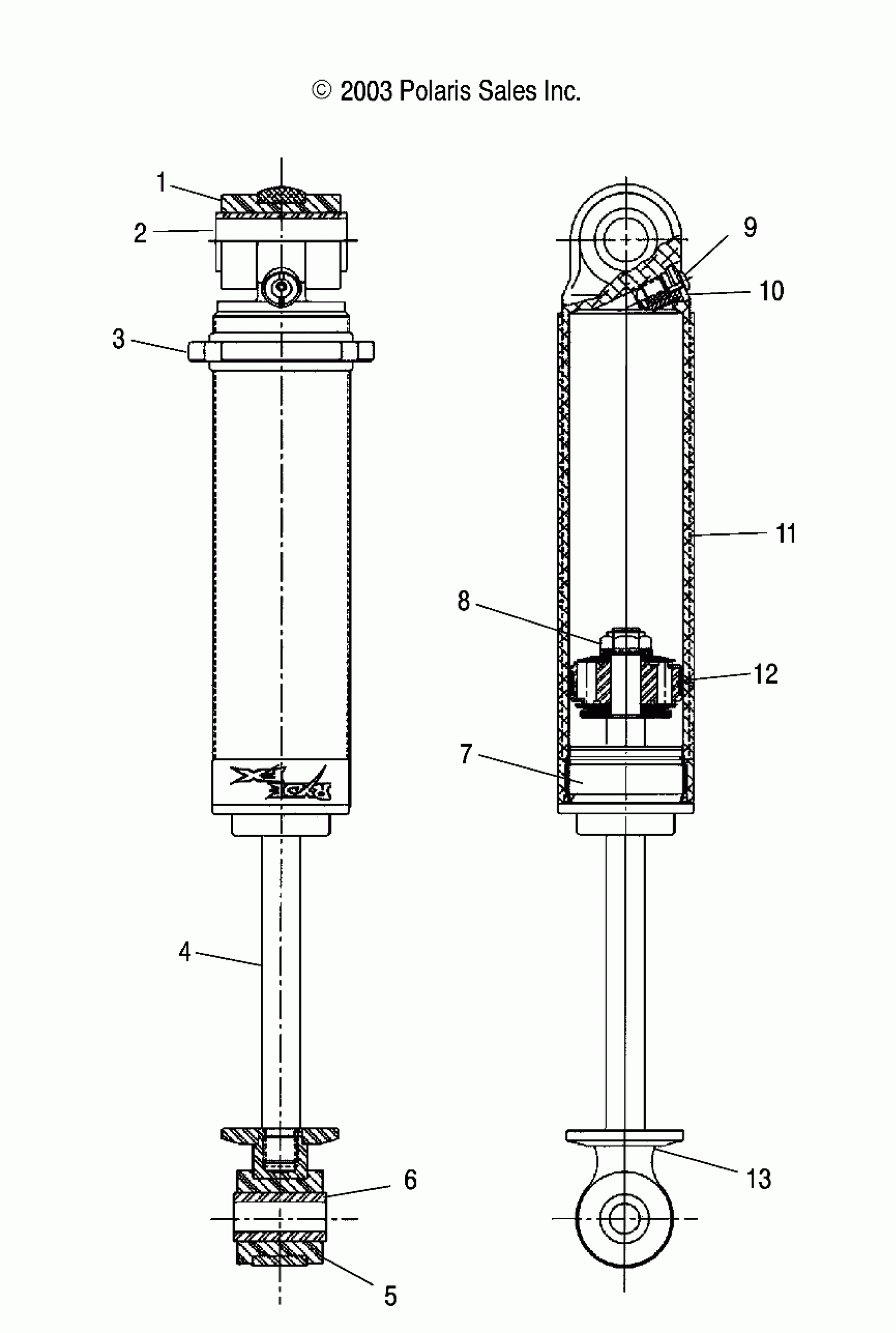

Polaris 550 PRO X FAN - S04NX5BS/BE SHOCK (FRONT TRACK) - S04NX5BS/BE (4988578857C01) Diagram

#

Description
Price

-

Shock, Front Track

7042205

$234.99

1

Bushing

1700074

Unavailable

2

Sleeve

1700071

$15.99

3

Nut, Spring Retainer

1700033

$23.81

4

Shaft

1700214

$43.99

5

Bushing

1700075

$11.99

6

Sleeve

1700069

$15.99

7

Asm., Cylinder Head

1700156

$74.99

7

O-Ring, Cylinder Head

1700051

Unavailable

8

Nut

1700057

$9.59

9

Screw, Valve

1700056

$6.94

10

Asm., Pressure Valve

1700184

Unavailable

10

O-Ring, Pressure Valve

1700047

$7.13

11

Body

1700213

$128.99

12

Washer, Back-Up

1700078

$9.59

12

Piston, Banded

1700100

$28.15

12

Band, Wear, Piston

1700031

$28.32

12

Washer, Top-Out

1700077

$10.39

13

Mount, Upper

1700011

$56.65
