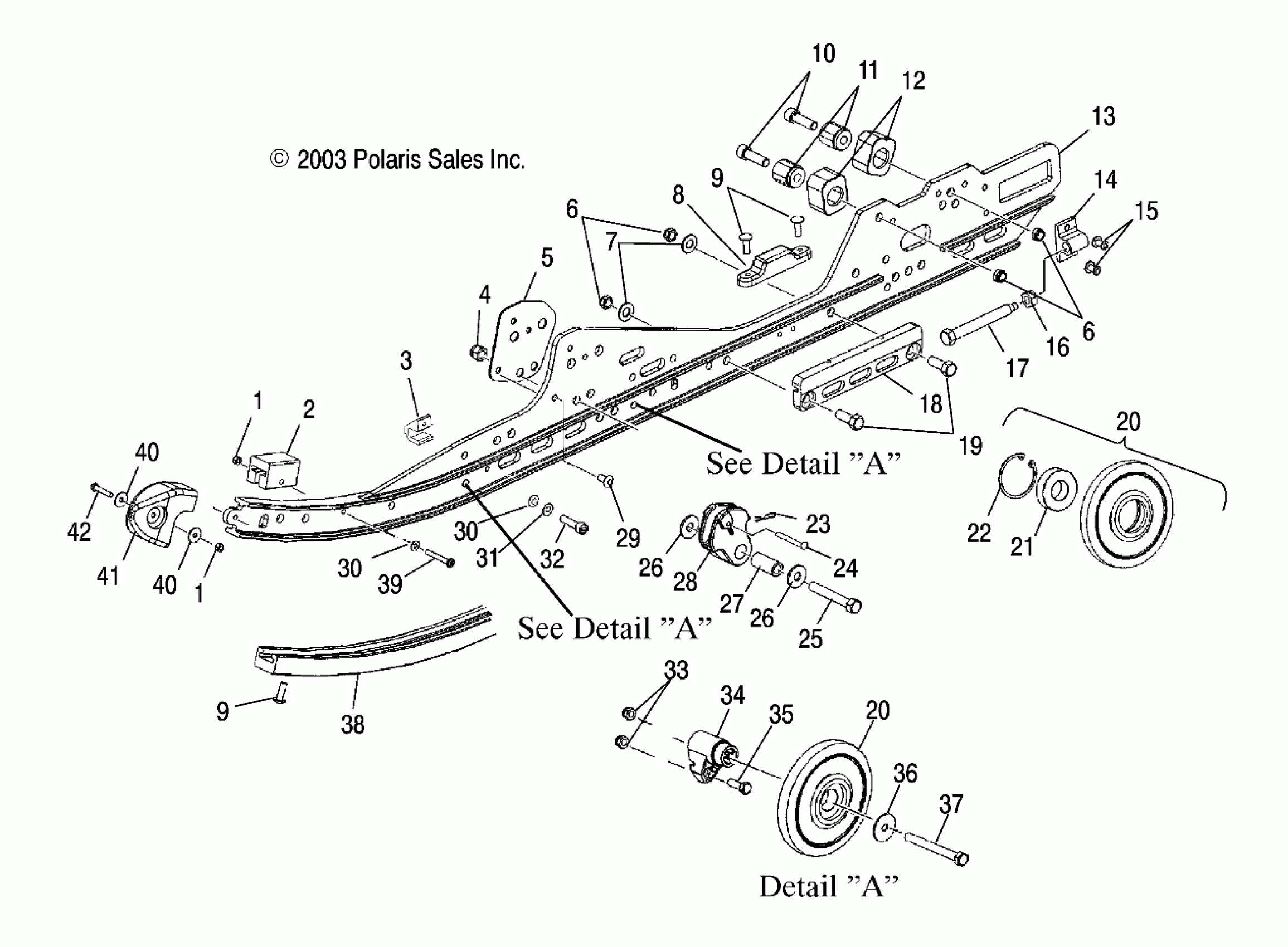

Polaris 550 PRO X FAN - S04NX5BS/BE RAIL MOUNTING (SUSPENSION) - S04NX5BS/BE (4988578857B08) Diagram

#

Description
Price

1

Nut, Nylok

7541925

$1.49

1

Nut, Nylok

7541925

$1.49

2

BUMPER, JOUNCE, FRONT

5521499

$8.89

3

Clamp, Hose

5132997

$13.19

4

Nut, Nylok

7542439

$1.49

5

Bracket, Rail Reinforcement

5245991

$13.19

6

Nut, FLEXLOC

7542411

$3.19

6

Nut, FLEXLOC

7542411

$3.19

7

Washer, Flat

7555806

$1.49

8

BUMPER

5432166

$5.59

9

Screw

7515199

$1.49

9

Screw

7515199

$1.49

10

Bolt

7515545

$5.59

11

MOUNT, BUMPER

5131113

$28.32

12

BUMPER, PIVOT ARM

5410925

$12.94

13

Asm., Rail, 121, LH [Incl. 2,8,12,14,41]

1541827

$354.99

13

Asm., Rail, 121, RH [Incl. 2,8,12,14,41]

1541828

Unavailable

14

Block, Idler Bolt Adjusting

5132444

$28.32

15

RIVET

7621501

$2.39

16

Nut, Jam

7547156

$9.59

17

Screw

7517773

$28.56

18

Plate, Rail Reinforcement

5133359

Unavailable

19

Bolt

7512457

$3.99

20

Asm., Wheel, Bogie [Incl. 21,22]

1590317

$48.56

20

Asm., Wheel, Bogie [Incl. 21,22]

1590317

$48.56

21

BEARING [1 PER WHEEL]

3514303

$11.99

22

RET.RING-TRUARC [1 PER WHEEL]

7718407

$4.79

23

PIN, HITCH

7661644

$2.39

24

Pin, Clevis

7661123

$3.99

25

Bolt

7515438

$4.79

26

WASHER

7555983

Unavailable

26

WASHER

7555983

Unavailable

27

SPACER

5333948

$6.39

28

Guide, Spring Wire

5434389

$28.32

29

RIVET

7661845

$1.49

30

Washer, Flat

7555783

$3.99

30

Washer, Flat

7555783

$3.99

31

Washer, Lock

7552615

$4.99

32

Screw

7512014

$3.59

33

NUT-5/16-18 NYLOK-Y

7542324

$1.49

34

Block, Mount, Wheel

5631065

$28.32

35

BOLT

7515317

$4.79

36

Washer, Spring

7556179

$7.99

37

Screw

7515346

$5.59

38

Hi-Fax

5521632

$39.98

39

Screw

7510504

$6.76

40

WASHER

7555792

$4.79

40

WASHER

7555792

$4.79

41

Cap, Rail Tip

5434355

Unavailable

42

BOLT

7512007

$3.99
