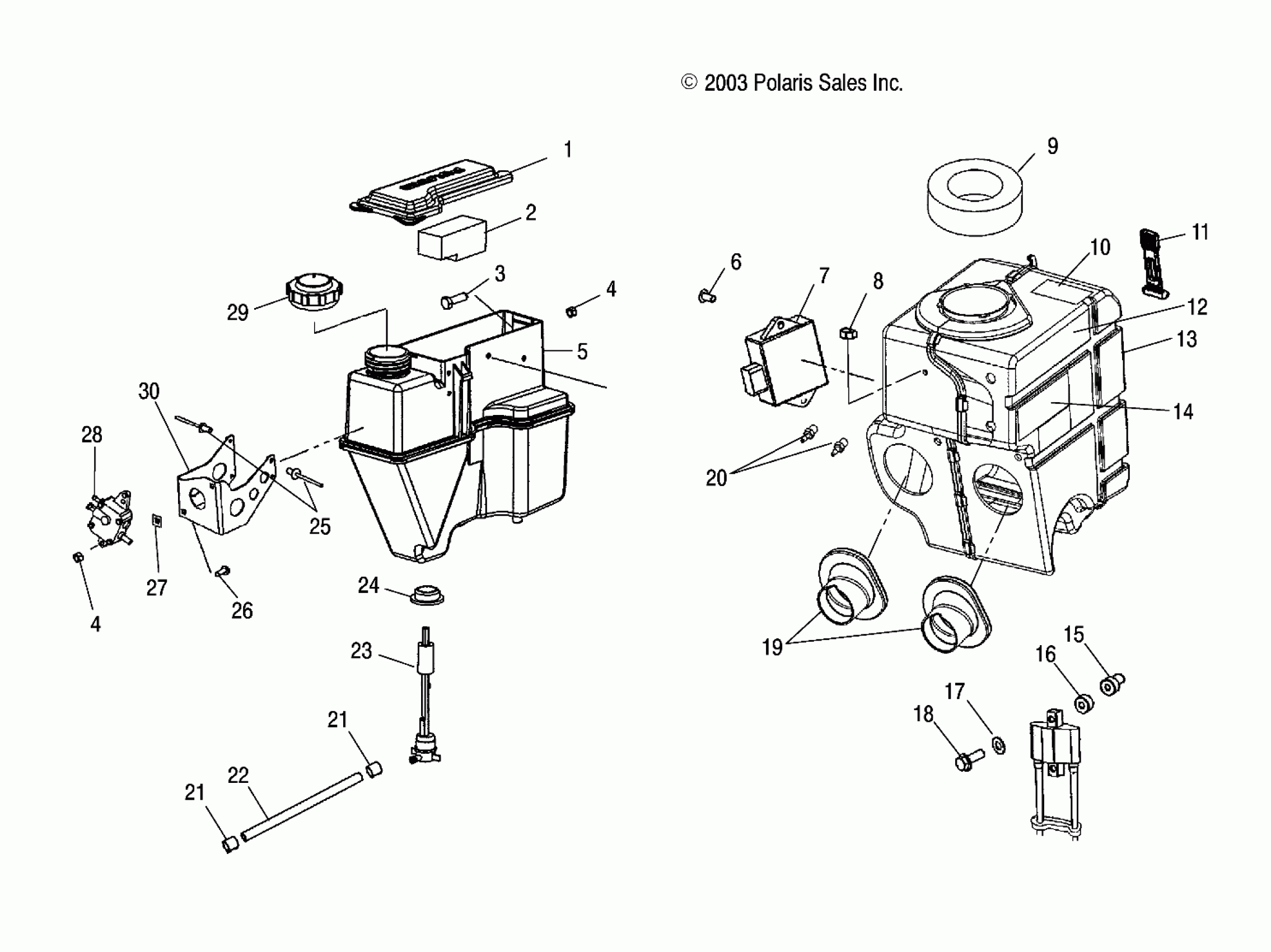

Polaris 550 PRO X FAN - S04NX5BS/BE OIL TANK/AIR BOX - S04NX5BS/BE (4988578857C04) Diagram

#

Description
Price

1

Cover, Tool Box

5434089

$27.19

2

Foam

5812209

Unavailable

3

Screw

7512297

$5.59

4

Nut, Nylok

7542122

$1.49

4

Nut, Nylok

7542122

$1.49

5

Bottle, Oil/Tool Box w/Mount

1261199

Unavailable

5

Asm., Oil Tank w/Sending Unit [Incl. 1,23]

1253474

Unavailable

6

Screw

7512095

$4.79

7

SYSTEM, CDI [SEE MAGNETO PG. C14, REF. 5]

-------

Unavailable

8

Clip

7670102

$2.39

9

Foam, Chimney

5811983

$20.22

10

Decal, Caution

7075351

Unavailable

11

STRAP-AIRBOX TOP

5433150

$24.27

12

Decal, Greasing

7073426

$7.27

13

Asm., Air Silencer [Incl. 19 & Decals]

1253534

$99.19

14

Decal, Belt Removal

7171037

Unavailable

15

Nut, Well

7547103

$8.79

16

Washer, Nylon

7555932

$2.39

17

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

18

Screw

7517610

$1.59

19

Boot, Carburetor

5412189

Unavailable

20

Fitting, Hose

7052127

$3.19

21

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

21

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

22

HOSE

8450003-1525

Unavailable

23

Sender, Oil w/Front Terminals

4010660

$60.70

24

Grommet, Oil Sender

7052305

$4.84

25

RIVET

7621479

$1.99

26

Bolt, Carriage

7512263

$3.99

27

Nut, Speed

7670021

$6.99

28

ASM., FUEL PUMP [SEE FUEL PUMP PG. C12, REF. 3]

-------

Unavailable

29

Cap, Oil

1240094

$36.41

30

Bracket, Fuel Pump

5246113

$34.71
