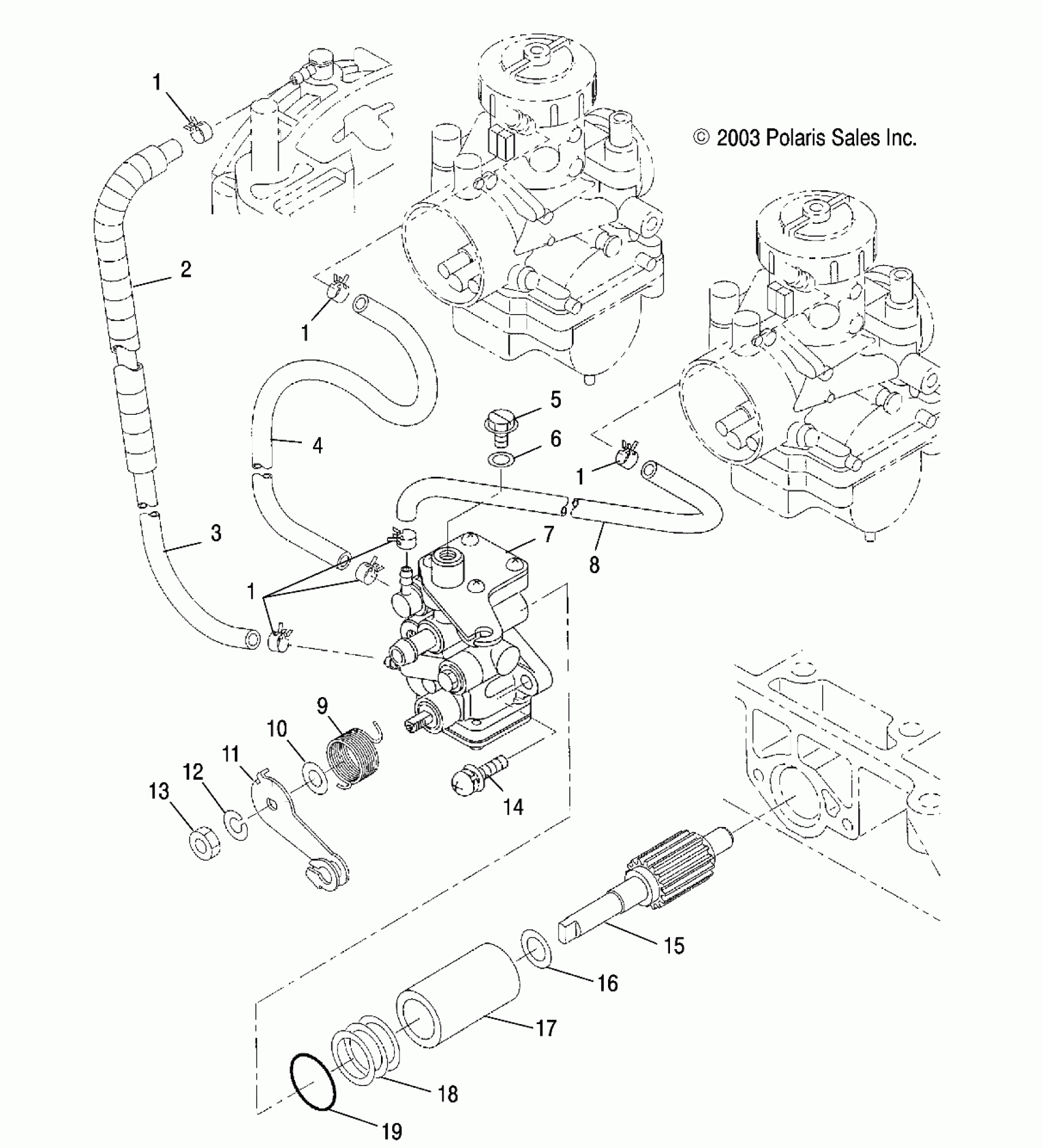

Polaris 550 PRO X FAN - S04NX5BS/BE OIL PUMP - S04NX5BS/BE (4988578857C13) Diagram

#

Description
Price

1

Clamp, Hose

3083141

$1.49

1

Clamp, Hose

3083141

$1.49

1

Clamp, Hose

3083141

$1.49

1

Clamp, Hose

3083141

$1.49

2

TUBE

3087114

Unavailable

3

Pipe, Rubber

3087113

Unavailable

4

Pipe, Vinyl

3085157

$29.99

5

Screw, Air Vent

3083125

Unavailable

6

Packing

3083126

$4.03

7

Asm., Oil Pump [Incl. 5-7,9-13,19]

3089223

Unavailable

8

PIPE, VINYL

3087185

Unavailable

9

SPRING, RETURN

3089228

$71.99

10

COLLAR, CAM SHAFT

3083445

$2.39

11

LEVER, CONTROL

3089227

Unavailable

12

Washer, Spring

3083121

$299.99

13

Nut

3083120

$3.19

14

Asm., Screw and Washer

3083783

$2.39

15

Gear, Small

3083131

$89.99

16

SPACER

3083130

$1.59

17

Bushing

3083353

$31.99

18

SPACER 3, .6MM

3083673

Unavailable

18

SPACER 2, .3MM

3083672

Unavailable

18

SPACER 1, .15MM

3083671

Unavailable

19

O-Ring

3083127

Unavailable
