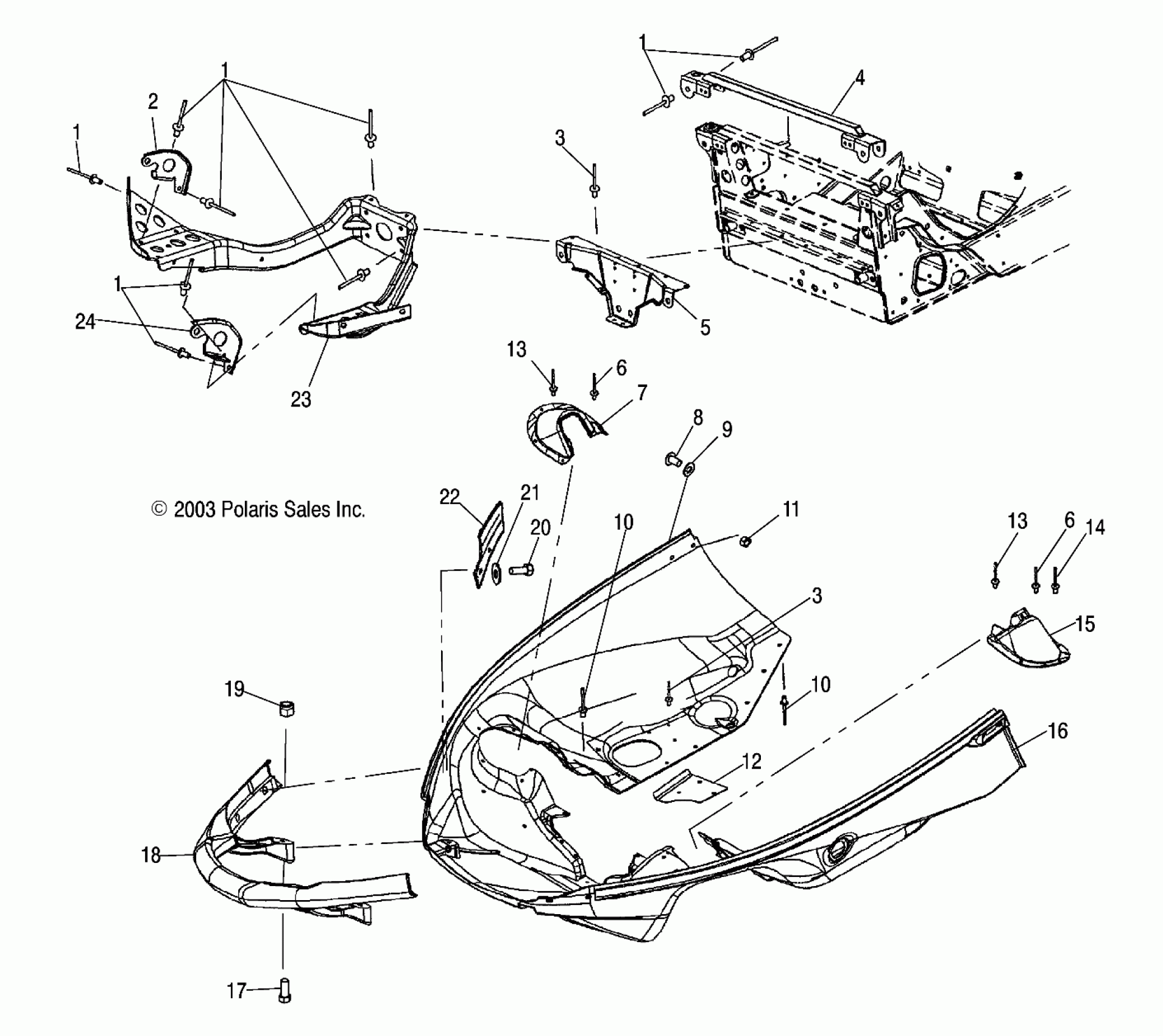

Polaris 550 PRO X FAN - S04NX5BS/BE NOSEPAN - S04NX5BS/BE (4988578857A06) Diagram

#

Description
Price

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

2

Hinge, Pivot, Lower, RH

5243992-067

$104.99

3

RIVET

7621472

$1.49

3

RIVET

7621472

$1.49

4

Brace, Cross

1013719-067

$34.71

5

BRACKET, RADIUS ROD SUPPORT [SEE FRONT SUSPENSION PG. A14, REF. 2]

-------

Unavailable

6

RIVET

7621431

$1.49

6

RIVET

7621431

$1.49

7

Foil

5812041

Unavailable

7

Cover, Shock Tower, RH

5434714

Unavailable

8

Screw

7515166

$3.19

9

WASHER

7555827

$3.99

10

RIVET

7621467

$1.49

10

RIVET

7621467

$1.49

11

Nut, Nylok

7542122

$1.49

12

Shield, Heat Exhaust, Extended

5245853

$11.59

13

RIVET

7621479

$1.99

13

RIVET

7621479

$1.99

14

RIVET

7621418

$1.49

15

Cover, Shock Tower, LH

5434713

$5.75

16

Nosepan

5434344-453

$345.24

17

Bolt

7512163

$3.99

18

Asm., Bumper, Front

5433518-070

$64.75

19

NUT, FLANGED, NYLOK

7542153

$1.59

20

SCR-1/4-20X.88,HXWR TAPR,GR5,Y

7517312

$1.49

21

WASHER, SPRING LOCK

7552801

$1.59

22

Guide, Hood, LH

5244888

Unavailable

22

Guide, Hood, RH

5244889

Unavailable

23

Brace, Pan, Lower

5244050

$137.60

24

Hinge, Pivot, Lower, LH

5243991-067

$104.99
