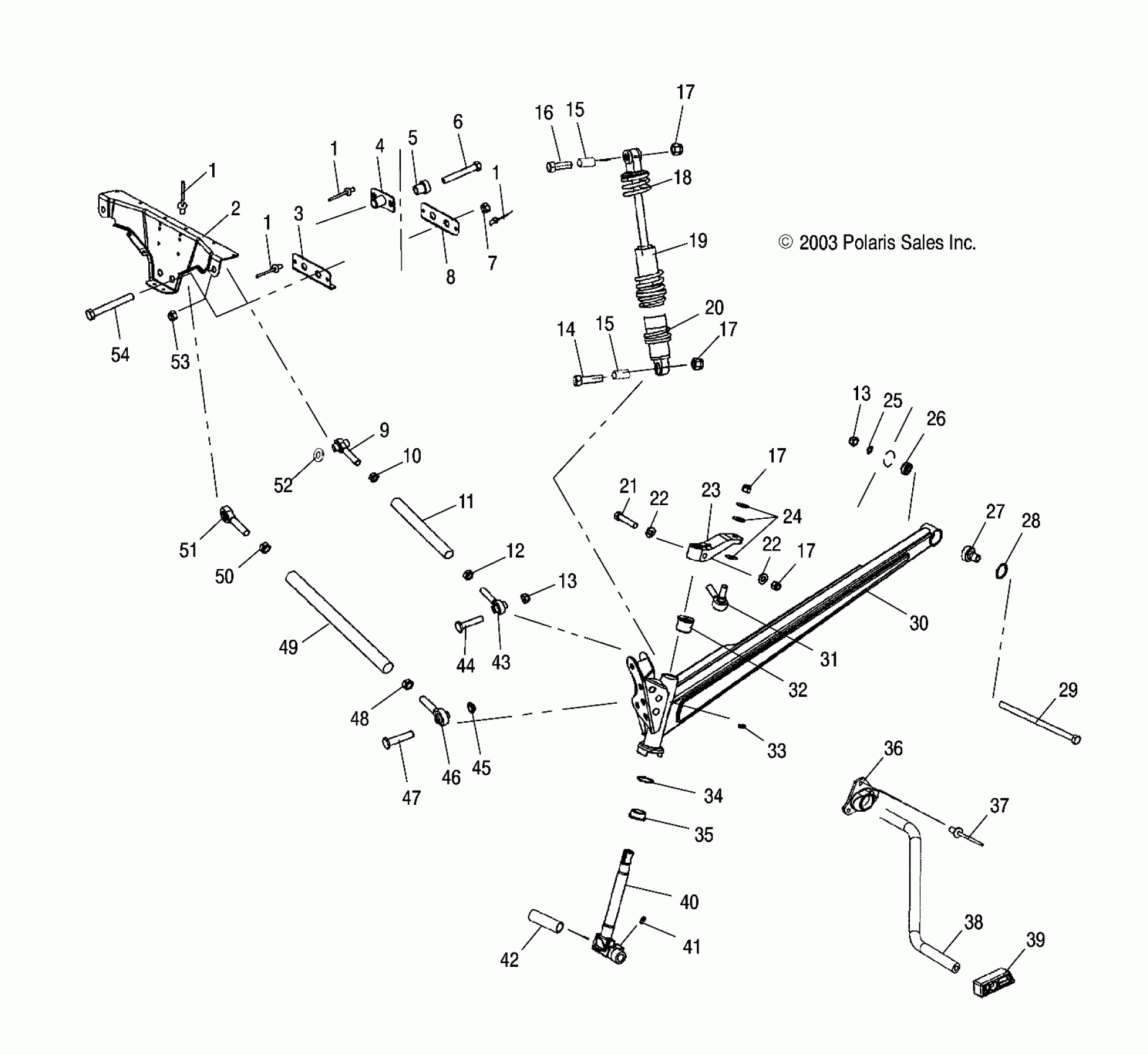

Polaris 550 PRO X FAN - S04NX5BS/BE FRONT SUSPENSION - S04NX5BS/BE (4988578857A13) Diagram

#

Description
Price

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

2

Bracket, Radius Rod Support

5245740-067

$164.79

3

Bracket, Radius Rod, Lower Strap

5245250

$11.59

4

Support, Radius Rod, Reinforce

1013733

$34.71

5

Bushing

5132897

$4.63

6

Bolt

7517980

$7.99

7

Nut, FLEXLOC

7542703

Unavailable

8

Plate, Lower, Inner

5245307

$7.43

9

Rod End, LH

7061107

$36.31

10

Nut, LH

7547117

Unavailable

11

Tube, Rod, Radius, Upper

5333984-385

Unavailable

12

Nut, Jam

7542520

$2.39

13

Nut, Nylok

7547066

$1.59

13

Nut, Nylok

7547066

$1.59

14

Screw

7515415

$1.49

15

Spacer

1700066

Unavailable

15

Spacer

1700066

Unavailable

16

SCREW

7517583

$4.35

17

Nut, Nylok

7542439

$1.49

17

Nut, Nylok

7542439

$1.49

17

Nut, Nylok

7542439

$1.49

17

Nut, Nylok

7542439

$1.49

18

RETAINER, SPRING, SLOTTED

5020618

$24.99

19

Shock, IFS

7042183

Unavailable

20

Spring, Compression

7042195-293

Unavailable

21

Screw

7515433

$1.59

22

WSHR-.813X.406X.105-Y

7555832

$2.39

22

WSHR-.813X.406X.105-Y

7555832

$2.39

23

Kit, Steering Arm [Incl. 2]

2874341

Unavailable

24

Washer, Flat

7555797

$3.99

25

WASHER, FLAT

7555820

$3.99

26

Cup, Trailing Arm Mount

5133990

$7.19

27

Bearing, Spherical

7061094

Unavailable

28

RING, RETAINER

7710437

$3.19

29

Screw

7512099

$19.99

30

Asm., Trailing Arm, LH [Incl. 27,28]

1821147-385

Unavailable

30

Asm., Trailing Arm, RH [Incl. 27,28]

1821148-385

$298.99

31

Rod End, RH

7061057

$48.56

32

Bushing, Flange

3514376

Unavailable

33

Fitting, Zerk

7080433

$1.49

34

Bushing

7556207

Unavailable

35

Bushing, Flange

3514377

Unavailable

36

Bushing, Torsion Bar

5433234

$23.99

37

Rivet

7621452

$1.49

38

Bar, Torsion

5246062-067

Unavailable

39

Slide, Torsion Bar

5434481

$24.27

40

Shaft, Spindle w/Steering Stop

6230225-067

$219.99

41

Fitting, Lubrication

7080306

$3.19

42

BUSHING, PIVOT

5010158

$19.99

43

Rod End, RH

7061108

Unavailable

44

Bolt

7517907

$4.23

45

Nut, Nylok

7547065

$3.99

46

Rod End, RH

7061106

$43.99

47

Bolt

7517906

Unavailable

48

Nut, Jam

7542711

$2.39

49

Tube, Rod, Radius, Lower

5333985-385

Unavailable

50

Nut, Jam, LH

7547028

$2.39

51

Rod End, LH

7061105

Unavailable

52

Washer

7555928

Unavailable

53

Nut, FLEXLOC

7542503

$10.39

54

Bolt

7512656

$6.23
