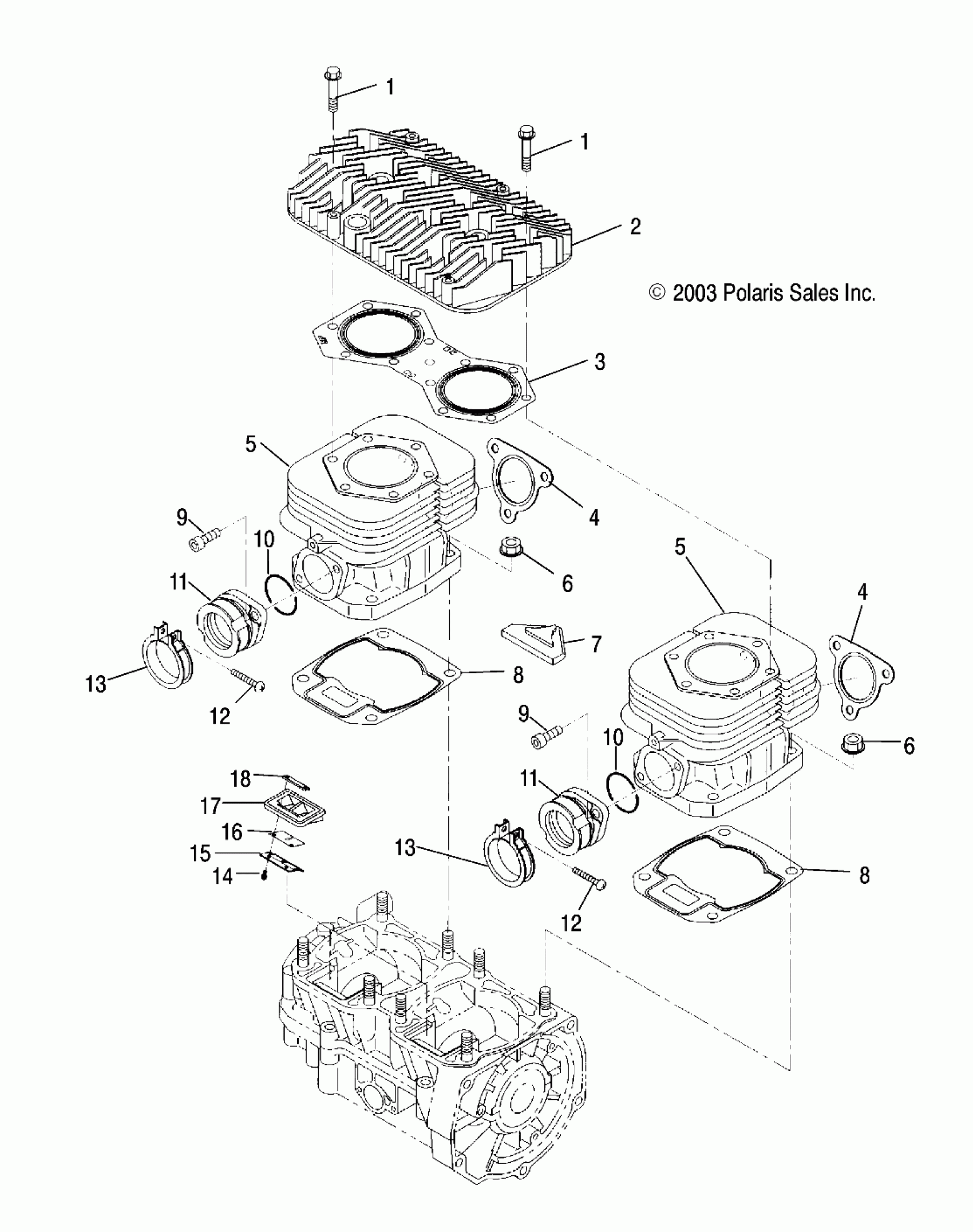

Polaris 550 PRO X FAN - S04NX5BS/BE CYLINDER - S04NX5BS/BE (4988578857C07) Diagram

#

Description
Price

1

BOLT, FLANGE

3084271

Unavailable

1

BOLT, FLANGE

3084271

Unavailable

2

Head, Cylinder

3089482

$236.17

3

GASKET, HEAD

3085704

Unavailable

4

GASKET, EXHAUST

3085714

$29.99

4

GASKET, EXHAUST

3085714

$29.99

5

Cylinder Unit

3089226

$639.99

5

Cylinder Unit

3089226

$639.99

6

Nut, Flange

3082911

$1.99

6

Nut, Flange

3082911

$1.99

7

Cover, Baffle, Cylinder

3085692

$24.27

8

GASKET, CYLINDER

3085666

Unavailable

8

GASKET, CYLINDER

3085666

Unavailable

9

BOLT, SOCKET HEAD

3081330

$3.99

9

BOLT, SOCKET HEAD

3081330

$3.99

10

O-RING

3085619

$20.22

10

O-RING

3085619

$20.22

11

Adaptor [Incl. 10]

3085670

Unavailable

11

Adaptor [Incl. 10]

3085670

Unavailable

12

ASM., SCREW AND WASHER

3081497

$2.39

12

ASM., SCREW AND WASHER

3081497

$2.39

13

Asm., Adapter Band [Incl. 12]

3083166

$19.84

13

Asm., Adapter Band [Incl. 12]

3083166

$19.84

14

ASM., SCREW AND WASHER

3085717

$4.75

15

STOPPER

3086387

$12.94

16

Valve

3085715

$8.89

17

Asm., Valve, Reed [Incl. 14-16,18]

3086386

$60.70

18

Plate

3086388

Unavailable
