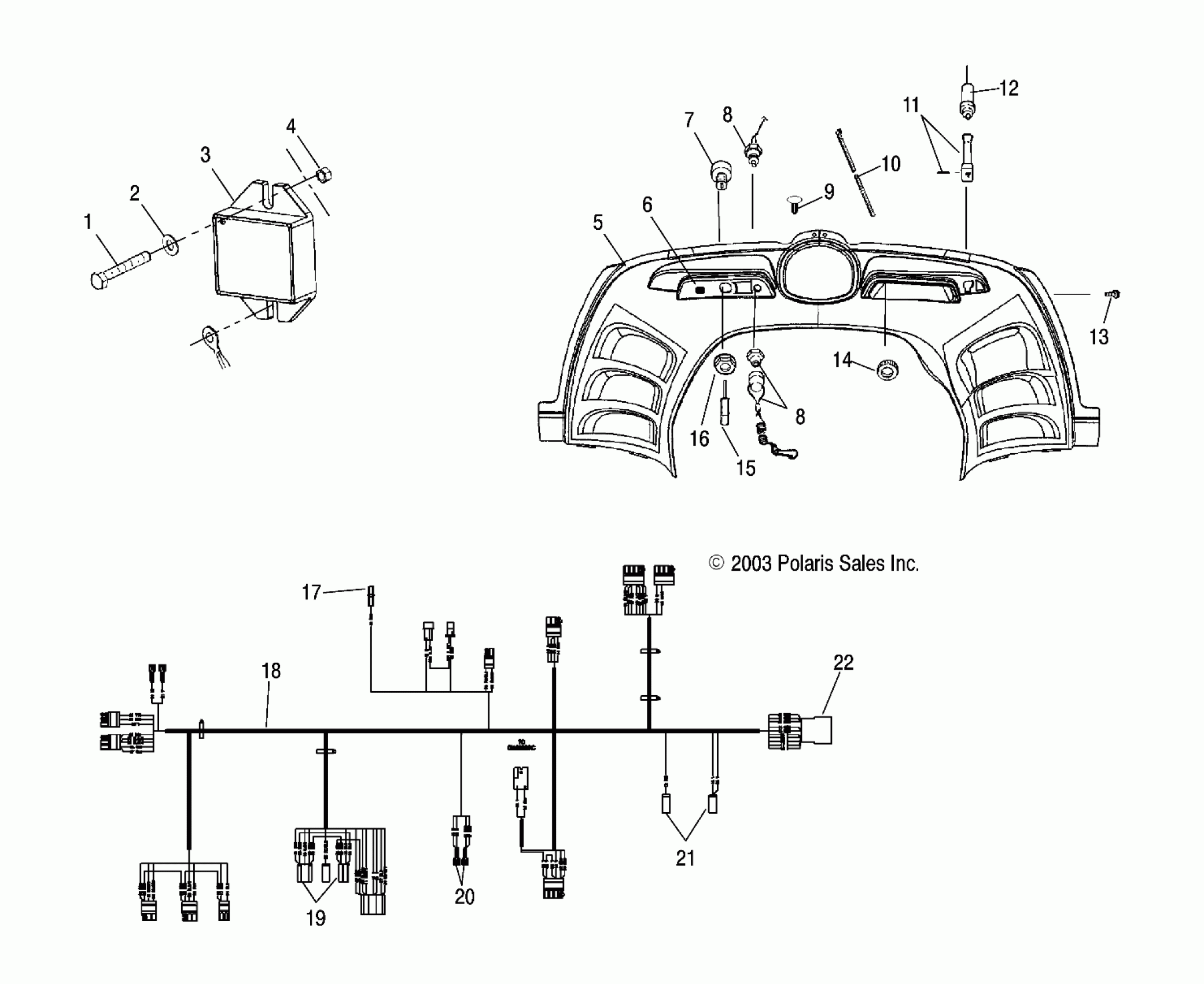

Polaris 550 PRO X FAN - S04NX5BS/BE CONSOLE - S04NX5BS/BE (4988578857A12) Diagram

#

Description
Price

1

Bolt

7512031

$2.23

2

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

3

Regulator, AC, 14.3V

4010793

$101.17

4

Nut, Nylok

7541925

$1.49

5

Console

5434103

Unavailable

6

HAIRPIN, COTTER

7661124

$3.99

6

Switch, Heater, Hi/Lo

4110263

Unavailable

7

Kit, Ignition Switch

2201614

$89.03

8

Switch, Tether

4010849

$72.84

8

Switch, Tether

4010849

$72.84

9

CLIP-FIR TREE,DART,6.35MM

7670090

$1.49

10

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

11

Kit, Kill Switch [Incl. Pin]

2200388

Unavailable

12

Cable, Choke Control [Incl. 11,14]

7080290

$105.22

13

Screw

7515199

$1.49

14

Nut, Choke

5432944

$8.79

15

Cap w/Key NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on underside of switch body behind console. Key dot code found o

5410611

Unavailable

16

Nut, Ignition

7547035

$8.79

17

Housing, Socket

4020133

Unavailable

18

Harness, Main, E/R

2461160

$384.99

19

Housing, Pack

4020063

$3.19

20

Receptacle

4020061

Unavailable

21

Housing 1 Circuit

4020153

$1.49

22

Housing

4020057

$3.51
