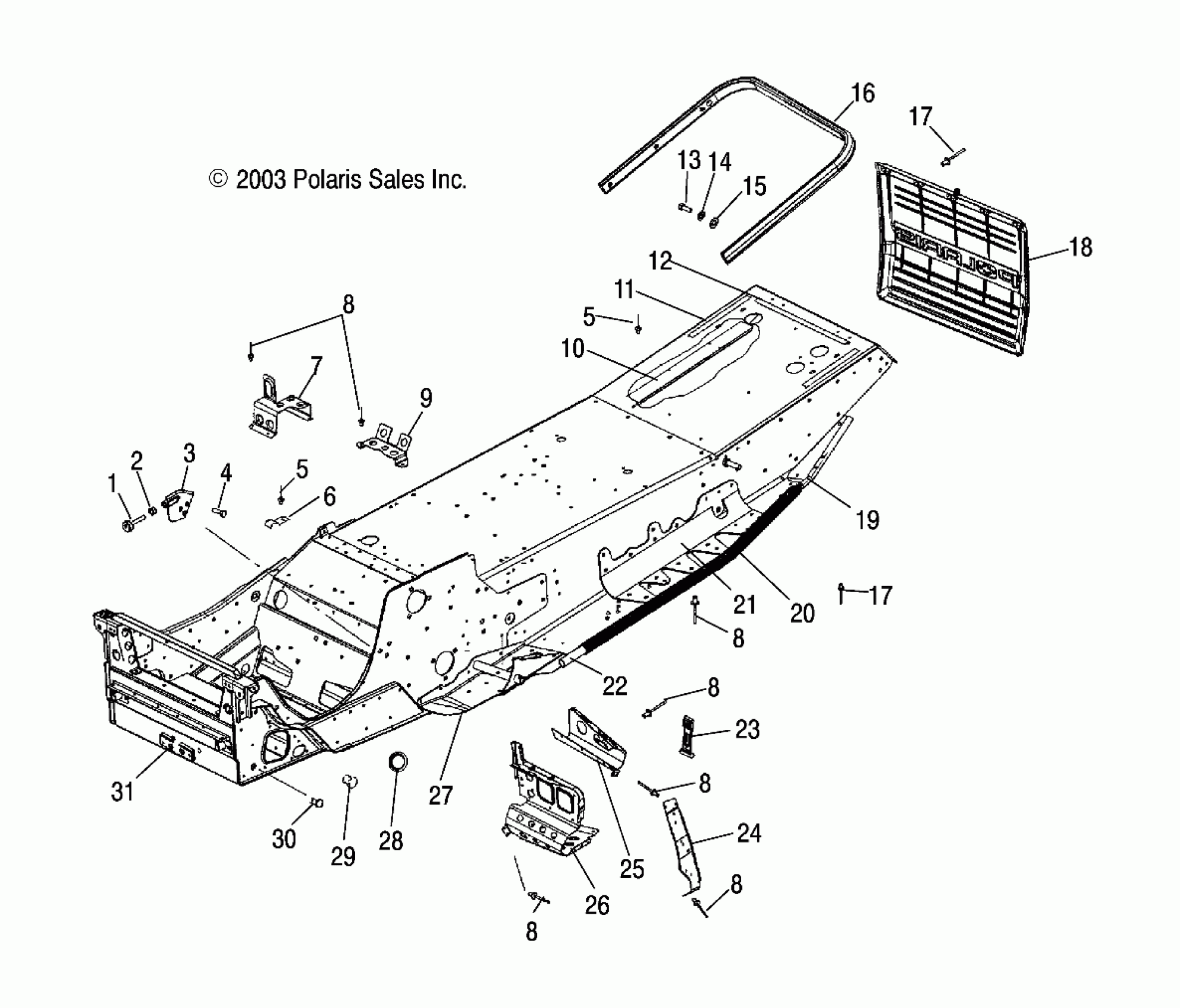

Polaris 550 PRO X FAN - S04NX5BS/BE CHASSIS - S04NX5BS/BE (4988578857A03) Diagram

#

Description
Price

-

Asm., Chassis

1014017-1176

Unavailable

1

Stop, Torque

3021104

$20.22

2

NUT

7542404

$1.59

3

Stop, Torque

1013507

$34.71

4

Screw

7517854

$5.59

5

Rivet

7621432

$1.49

5

Rivet

7621432

$1.49

6

Clip, Wiring

7080665

Unavailable

7

Bracket, Oil Bottle, Lower

5245801

$25.59

8

RIVET-3/16-.090-.290

7661637

$1.49

8

RIVET-3/16-.090-.290

7661637

$1.49

8

RIVET-3/16-.090-.290

7661637

$1.49

8

RIVET-3/16-.090-.290

7661637

$1.49

8

RIVET-3/16-.090-.290

7661637

$1.49

8

RIVET-3/16-.090-.290

7661637

$1.49

9

Bracket, Mount, Airbox

5246313

$18.23

10

Exchanger, Wear Strip

5132346

$95.99

11

Gasket Seat Base

5812290

$1.49

12

Gasket Seat Base, 1/4 Inch

5812360

$1.83

13

Bolt

7512232

$1.49

14

WASHER, SPRING LOCK

7552801

$1.59

15

Washer, Flat

7558301

$1.49

16

Asm., Bumper, Rear

2632165-309

Unavailable

17

RIVET

7621418

$1.49

17

RIVET

7621418

$1.49

18

Flap, Snow, Black w/Chrome

5434356-1106

Unavailable

19

Tube, Tunnel Reinforcement, Rear

5245432

Unavailable

20

Grip, Tunnel, LH

5133971

$45.59

20

Grip, Tunnel, RH

5133972

$45.59

21

Brace, Tunnel, Fishbone, LH

5245820

$58.39

21

Brace, Tunnel, Fishbone, RH

5245821

$58.39

22

Tube, Tunnel Reinforcement, Front

5245431

$10.32

23

STRAP-AIRBOX TOP

5433150

$24.27

24

Support, Footrest, LH

5246310

$19.83

24

Support, Footrest, RH

5246311

$32.37

25

Mount, Console, Toe Clip, LH

5245457

Unavailable

25

Mount, Console, Toe Clip, RH

5245458

Unavailable

26

Footrest, LH

5245288

Unavailable

26

Footrest, RH

5247205

Unavailable

27

Kit, Mount, Trailing Arm, LH

2202436

Unavailable

27

Kit, Mount, Trailing Arm, RH

2202437

Unavailable

28

Caplug

7080934

$1.83

29

PLUG-HOLE

7080398

$4.84

30

PLUG, HOLE

7080416

$5.65

31

Bracket, Radius Rod Strap, Lower

5245250

$11.59
