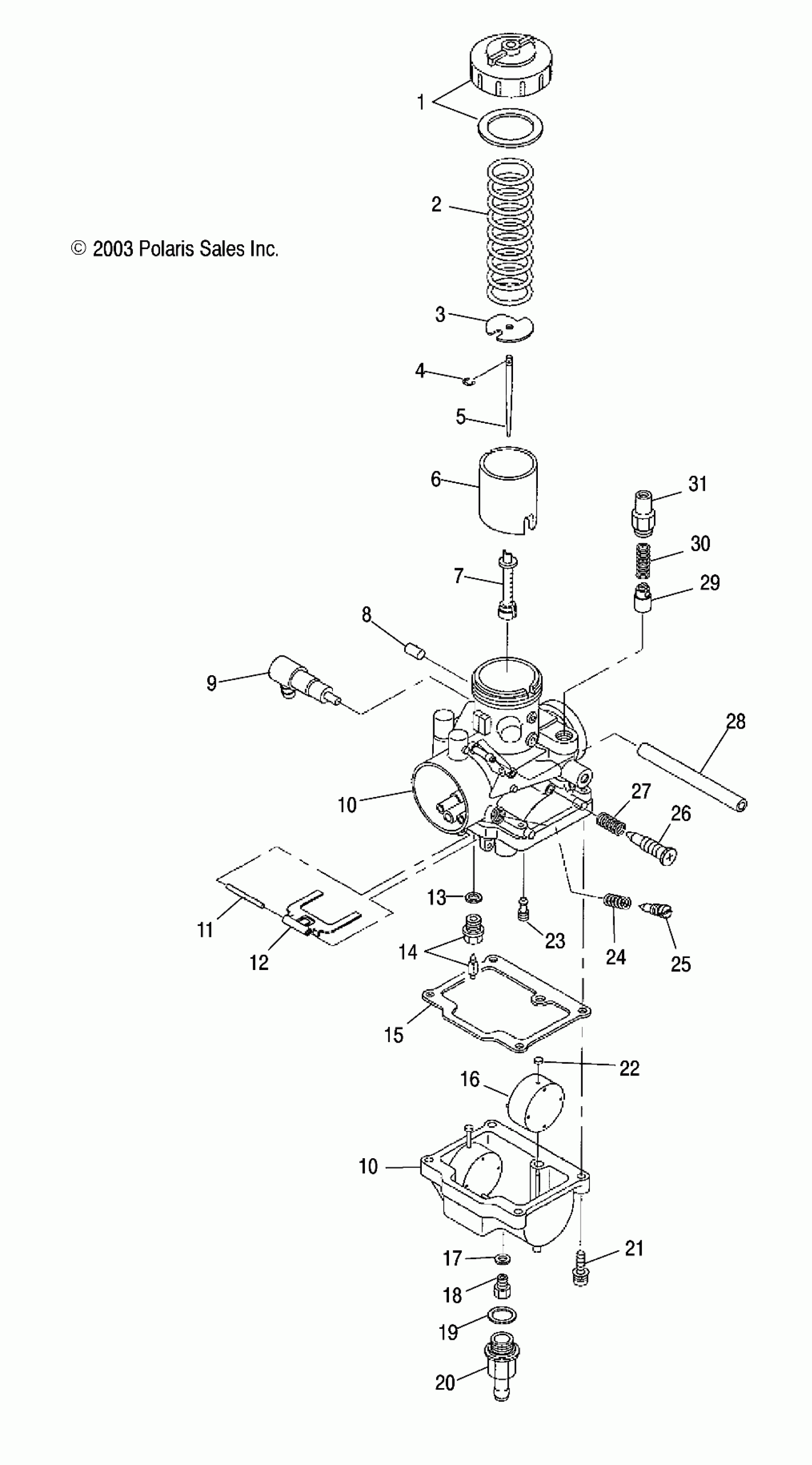

Polaris 550 PRO X FAN - S04NX5BS/BE CARBURETOR - S04NX5BS/BE (4988578857C09) Diagram

#

Description
Price

1

Asm., Mixing Chamber Top [Incl. Gasket]

3130877

Unavailable

2

SPRING, THROTTLE

3130439

$13.59

3

Plate, Throttle

3130879

Unavailable

4

E-RING

3130508

$6.46

5

Needle, Jet, J8-6BGY33

3131416

Unavailable

6

VALVE, THROTTLE, 3.0

3130372

$52.60

7

Jet, Needle Q-2

3130894

Unavailable

8

CAP

3130479

$14.56

9

Valve, Check

3083337

Unavailable

10

Asm., Carburetor [Mag Side][Incl. All]

3131520

$395.22

10

Asm., Carburetor [PTO Side][Incl. All]

3131521

$395.22

10

Asm., Carburetor [Mag Side][Incl. All]

3131520

$395.22

10

Asm., Carburetor [PTO Side][Incl. All]

3131521

$395.22

11

PIN, FLOAT

3130361

$8.89

12

Float, Arm

3130018

$24.27

13

Packing, Needle Valve

3130017

$4.03

14

Valve, Needle, 1.5

3131146

$48.56

15

Gasket, Float Chamber

3130020

$16.17

16

Asm., Float

3130430

$43.56

17

WASHER

3130014

$1.59

18

Jet, Main, #280 [PTO Side]

3130131

$7.27

18

Jet, Main, #270 [Mag Side]

3130130

$7.27

19

O-RING

3130239

Unavailable

20

Nipple

5020476

$10.63

21

Asm., Screw and Washer

3130025

$3.19

22

Cap

3130237

$4.03

23

Jet, Pilot, #40

3130067

$10.99

24

Spring, Air Adjuster

3130012

$8.89

25

Screw, Air

3130011

$19.99

26

SCREW, THROTTLE STOP

3130437

Unavailable

27

Spring, Throttle, Adjuster

3130010

$8.89

28

Hose

3131288

$10.71

29

Asm., Plunger

3130328

$32.37

30

Spring, Plunger

3130884

Unavailable

31

Cap, Plunger

3130199

$28.32
