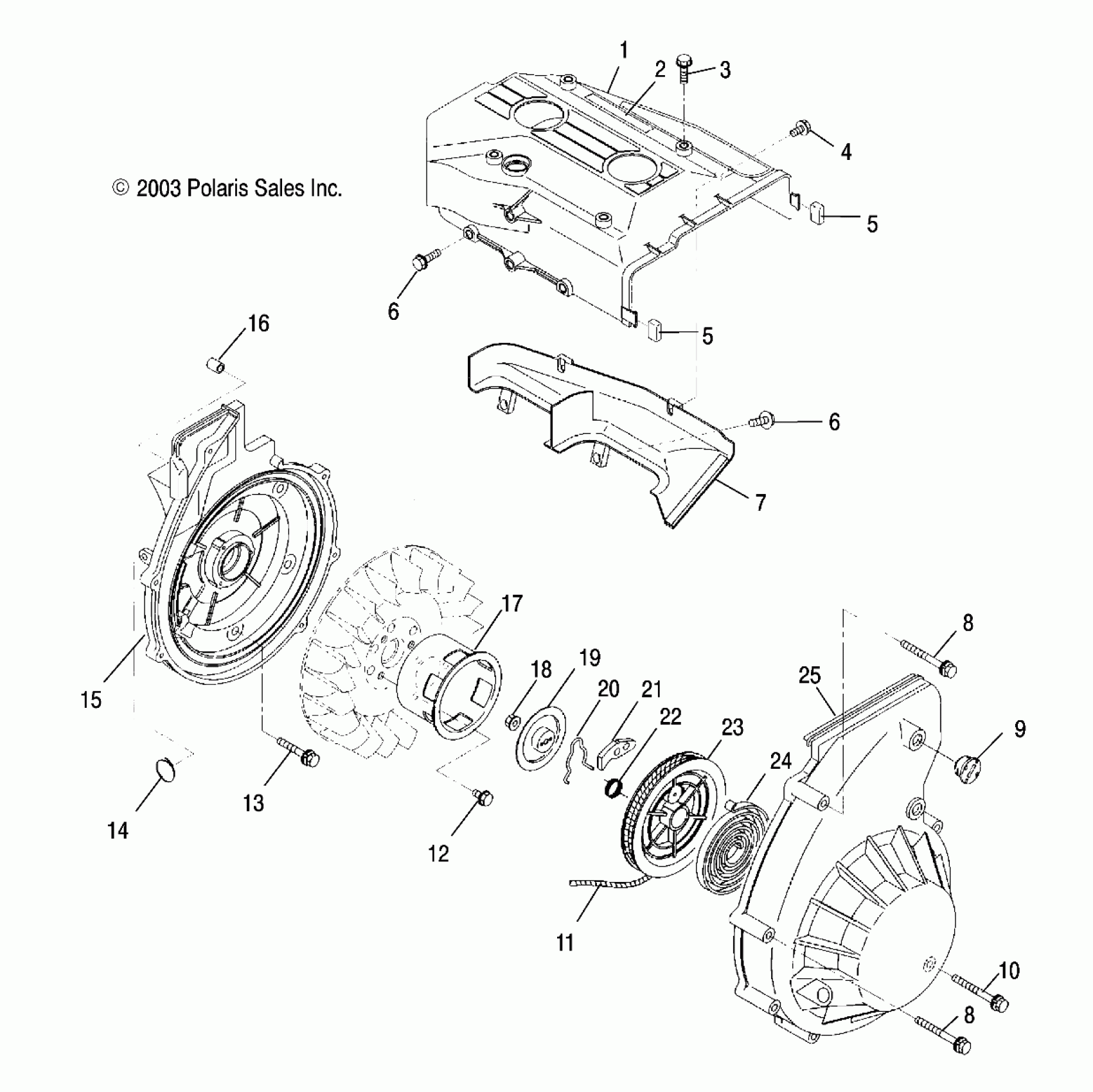

Polaris 550 PRO X FAN - S04NX5BS/BE BLOWER HOUSING and RECOIL STARTER - S04NX5BS/BE (4988578857C11) Diagram

#

Description
Price

1

Baffle, Cylinder 1

3086991

$119.99

2

Decal, "POLARIS" Engine Shroud

7077756

Unavailable

3

Bolt, Flange

3084566

$3.19

4

Bolt, Flange

3085693

$2.39

5

Cap, Baffle, Cylinder

3085690

$9.70

5

Cap, Baffle, Cylinder

3085690

$9.70

6

Bolt, Flange

3085694

$2.63

6

Bolt, Flange

3085694

$2.63

7

Baffle, Cylinder 2

3085691

Unavailable

8

Asm., Bolt and Washer

3083550

Unavailable

8

Asm., Bolt and Washer

3083550

Unavailable

9

Plug, Rubber

3086792

$24.27

10

Asm., Bolt and Washer

3082030

$3.97

11

Rope, Starter

3085723

Unavailable

12

Asm., Bolt and Washer

3085688

$2.99

13

Asm., Bolt and Washer

3084225

$3.99

14

Band, Wire

3084823

$12.79

15

Housing, Blower

3087020

$178.08

16

Pin, Straight

3084857

Unavailable

17

Pulley, Starting

3087181

$36.41

18

Nut, Flange

3083381

$2.99

19

Plate, Friction

3083464

$28.32

20

Spring, Friction

3083379

$24.27

21

Ratchet

3087207

$11.99

22

Spring, Return

3083463

$4.03

23

Asm., Reel

3083377

$56.65

24

Spring, Spiral

3083376

$179.11

25

Asm., Case, Starter

3087180

$242.84

25

Starter, Recoil [Incl.11,18-25]

3087206

Unavailable
