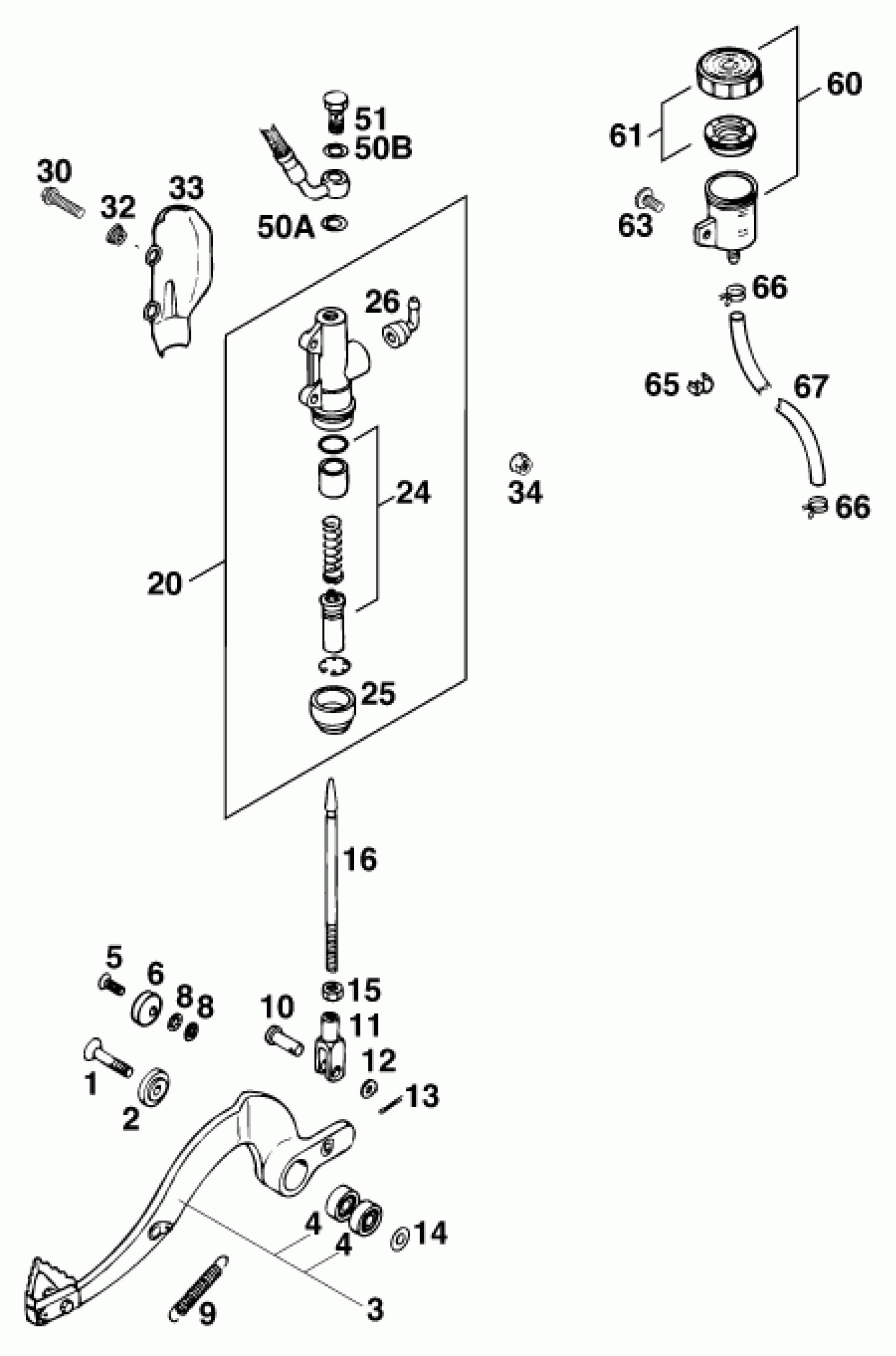

KTM 550 MXC M/Ö <1996> REAR BRAKE CONTROL Diagram

#

Description
Price

1

FLAT HEAD SCREW DIN7991-M 8X40

0991080403

$3.08

2

WASHER FOR BRAKE LEVER

56503061300

$2.61

3

50203060544

Unavailable

4

Grooved ball bearing 608 2RS C

0625006087

$21.40

5

FLAT HEAD SCR. DIN7991-M 6X16

0991060163

$2.05

6

BRAKE STOP LEVER

50203063000

$4.20

8

TOOTH LOCK WASH. DIN6797-A 6,4

0797060003

$1.49

9

RETURN SPRING FOR BRAKE LEVER

54503062000

$3.48

10

BOLT FOR FORK 4STR.

58003067000

$6.62

11

FORK F.BRAKE PEDAL

58003069000

$17.19

12

WINDOW PANE 8,4X14X1MM

50203028000

$1.49

13

PIN DIN94 2x20

0094020203

$1.49

14

washer DIN 125 A -8.4

0125080003

$1.49

15

Hexagon nut DIN934 M8

0934080003

$2.05

16

PRESSURE ROD ALU L=120 MM'89

54503068000

$4.72

20

MAIN BRAKE CYLINDER '89

54513101044

$126.73

24

REPAIR KIT PISTON 13MM

54513150000

$46.46

25

RUBBER SLEEVE

54513151000

$17.48

26

ANGLE PIECE

54513155000

$14.58

30

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

32

COLLAR BUSHING

50213161000

$3.08

33

BRAKE CYL. PROTECTOR ''BREMBO'

54513038000

$7.00

34

SELF LOCKING NUT M6

56509064000

Unavailable

49

CU-SEAL RING DIN7603-10X16X1,5

42013026000

$2.05

50

CU-SEAL RING DIN7603-10X16X1

42013226000

$2.05

51

HOLLOW SCREW M10X1X19

50213025000

$6.54

60

BRAKE FLUID RESERVOIR '89

54513030044

$20.56

61

SCREW CAP FOR RESERVOIR

54513031044

Unavailable

63

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

65

CLAMP D=6/8MM, BLACK

55011022100

$2.05

66

YDNAC-clamp 10101 (10.4MM)

58007017000

$3.08

67

HOSE FOR RESERVOIR 6X1,5

58007016101

Unavailable
