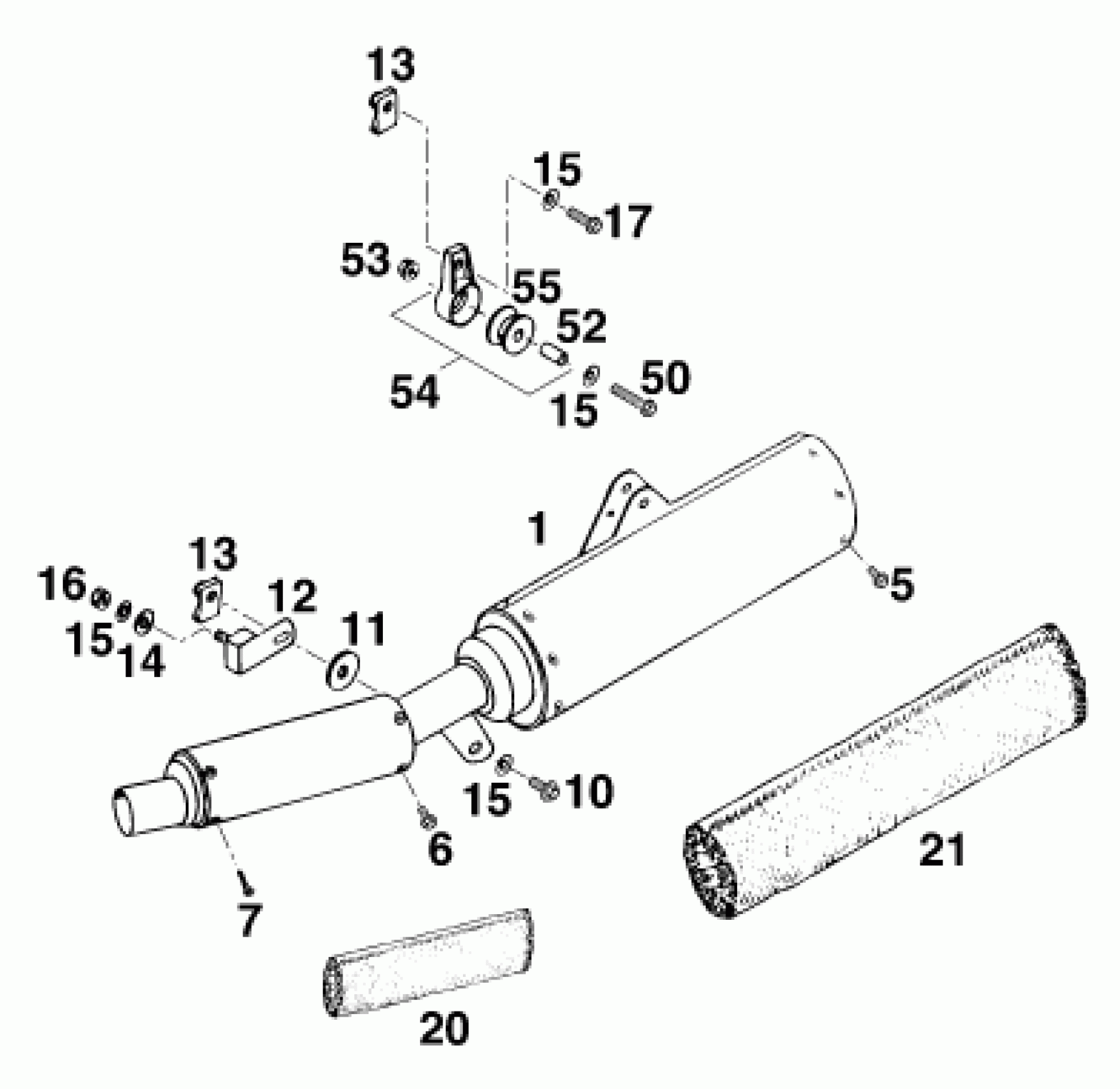

KTM 550 MXC M/Ö <1996> EXHAUST SYSTEM Diagram

#

Description

Price

1

* EXH.PIPE 500/540 MX NICKEL'9

56505070500

Unavailable

5

HH SCREW DIN933 M8x16

0933080163

$1.49

6

TOOTHLOCK WASHER DIN6797-J 8,4

0797080003

$1.49

7

washer DIN 125 A -8.4

0125080003

$1.49

8

SELF LOCKING NUT DIN0985-M 8

0985080003

$2.05

9

INSOLATE WASHER 8,5X28X3

51005067000

$2.05

10

RUBBER GROMMET 30X15-M8X12-(1)

43205262000

$9.77

10

RUBBER GROMMET 30X20-M8X12

51005062100

$12.89

11

TENSION SPRING L=55MM

51005063000

$5.98

14

SILICON SLEEVE D=29/31MM

50205057000

$32.90
