- 550 INDY LXT ES/NORTH EDITION (R01) - S23CED5TSL/TSU
SUSPENSION, REAR and TRACK - S23CED5TSL/TSU (C0119074)

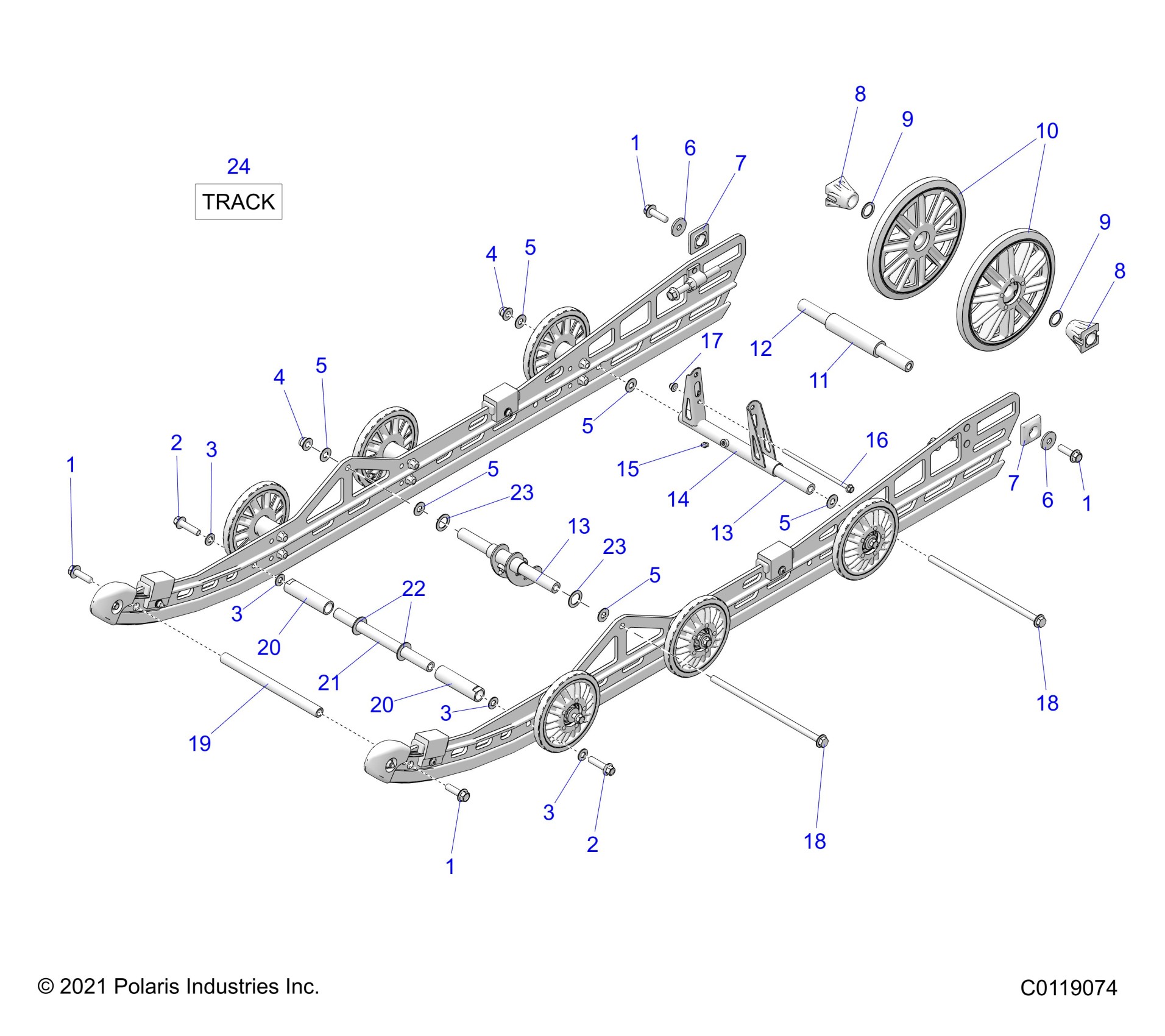

Polaris 550 INDY LXT ES/NORTH EDITION (R01) - S23CED5TSL/TSU SUSPENSION, REAR and TRACK - S23CED5TSL/TSU (C0119074) Diagram
#
1
SCR-M10X1.5X35 HXFL ZOD P30
7518957
$3.19
1
SCR-M10X1.5X35 HXFL ZOD P30
7518957
$3.19
1
SCR-M10X1.5X35 HXFL ZOD P30
7518957
$3.19
1
SCR-M10X1.5X35 HXFL ZOD P30
7518957
$3.19
2
SCR-HXFL-M10X1.5X40 10.9ZODP80
7519216
$4.79
2
SCR-HXFL-M10X1.5X40 10.9ZODP80
7519216
$4.79
3
WASHER-3/8 FW SAE STL THRU-HRD
7556153
$1.99
3
WASHER-3/8 FW SAE STL THRU-HRD
7556153
$1.99
3
WASHER-3/8 FW SAE STL THRU-HRD
7556153
$1.99
3
WASHER-3/8 FW SAE STL THRU-HRD
7556153
$1.99
4
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
$1.59
4
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
$1.59
5
WSHR-10.5X24X1.2446 ZOD HRD
7556545
$3.19
5
WSHR-10.5X24X1.2446 ZOD HRD
7556545
$3.19
5
WSHR-10.5X24X1.2446 ZOD HRD
7556545
$3.19
5
WSHR-10.5X24X1.2446 ZOD HRD
7556545
$3.19
5
WSHR-10.5X24X1.2446 ZOD HRD
7556545
$3.19
5
WSHR-10.5X24X1.2446 ZOD HRD
7556545
$3.19
6
WASHER-SPRING.406X1.25X.125ZOD
7556490
$4.79
6
WASHER-SPRING.406X1.25X.125ZOD
7556490
$4.79
7
SPACER, IDLER
5436496
$6.39
7
SPACER, IDLER
5436496
$6.39
8
SPACER-IDLER
5432535
$11.99
8
SPACER-IDLER
5432535
$11.99
9
BUSHING-MACH,.800X1.125X.06-Y
7555918
$1.59
9
BUSHING-MACH,.800X1.125X.06-Y
7555918
$1.59
10
ASM., WHEEL, BLACK
1590499-070
$57.13
10
RING-RETAINING [1 PER WHEEL]
7710444
$8.79
10
BEARING-.7874X1.6535X.4724,NTN [1 PER WHEEL]
3514384
$19.84
11
SPACER-IDLER, CENTER
5333283
$19.99
12
SHAFT-IDLER M10X1.5
5137224
$28.32
13
SHAFT-CROSS, RMK
5137418
$32.37
13
SHAFT-CROSS, RMK
5137418
$32.37
14
ARM, REAR PIVOT ARM, BLK
1544229-329
$52.60
15
FITTING-LUBRICATION 1/4-28
7080424
$4.79
16
SCR-HXFL M6X1.0X150 8.8 ZOD
7519201
$19.99
17
NUT-M6X1.0, FLG-NYLOC-OLIVE D
7547339
$1.49
18
SCR-HXFL-M10X1.25X250 10.9 ZOD
7519327
$19.99
18
SCR-HXFL-M10X1.25X250 10.9 ZOD
7519327
$19.99
19
SFT-M10X1.5IDX17.47ODX220.1 LG
5136572
$33.87
20
SPACER, SHOCK CENTERING, METRIC
5336325
$13.75
20
SPACER, SHOCK CENTERING, METRIC
5336325
$13.75
21
SHAFT-17.450X214.77
5137312
$33.87
22
WSHR-.719X1.250X.065-Y
7556210
$3.99
23
WSHR-19.5X30X1.20 Y TH
7557211
$3.99
23
WSHR-19.5X30X1.20 Y TH
7557211
$3.99
24
TRACK, 144 IN. X 1.352 COBRA [NORTH CED5BSU ONLY]
5414013
$927.99
24
CLIP-TRACK,LNG GUIDE
5251274
Unavailable
24
CLIP-TRACK, FLAT
5251273
Unavailable
