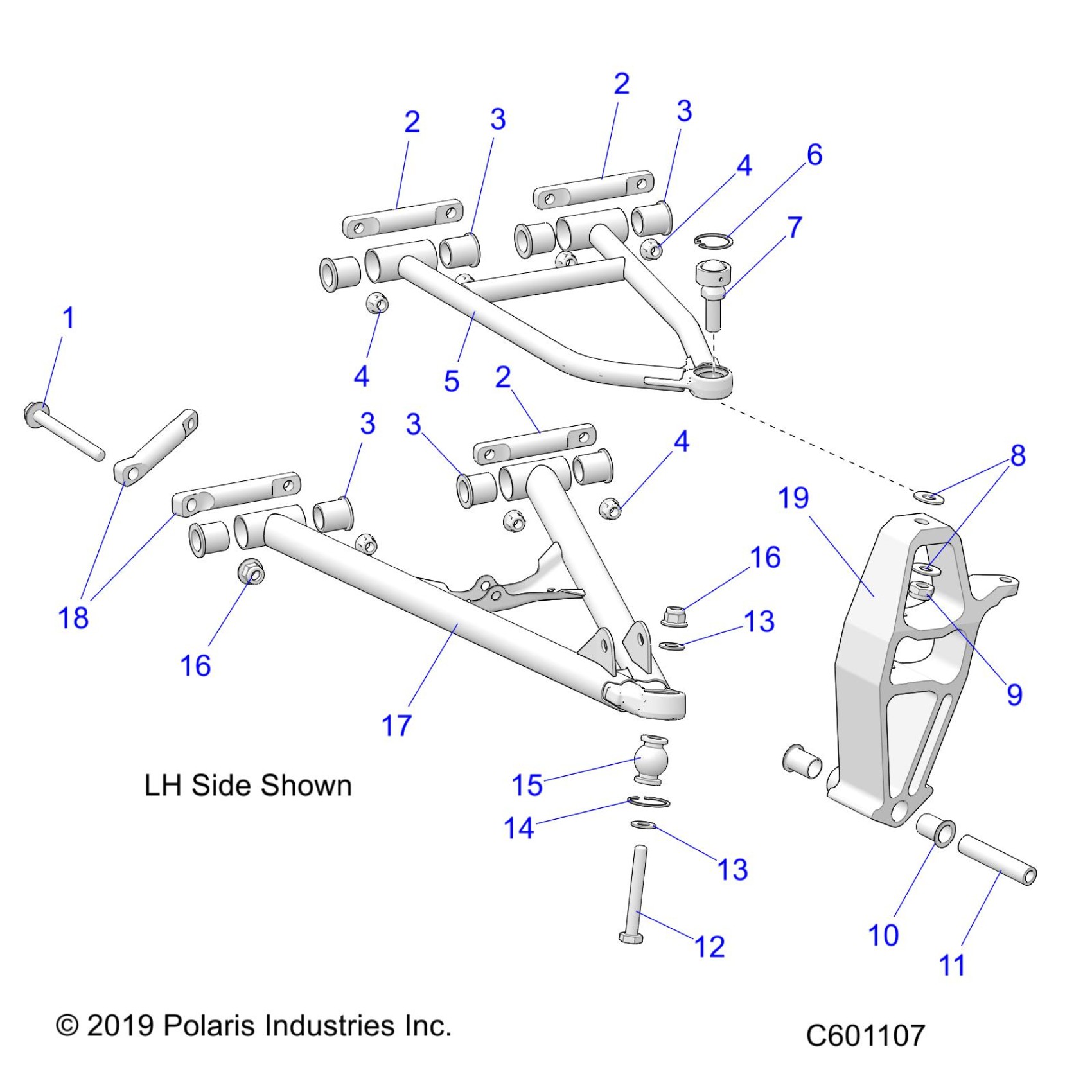

Polaris 550 INDY LXT ES/NORTH EDITION (R01) - S23CED5TSL/TSU SUSPENSION, CONTROL ARMS and SPINDLE - S23CED5TSL/TSU (C601107) Diagram

SCR-M10X1.5X95 HX FLG 10.9 ZOD

7518917

$4.79

SHAFT, PIVOT

5141028

$32.37

SHAFT, PIVOT

5141028

$32.37

SHAFT, PIVOT

5141028

$32.37

BUSHING, PIVOT

5438792

$2.39

BUSHING, PIVOT

5438792

$2.39

BUSHING, PIVOT

5438792

$2.39

BUSHING, PIVOT

5438792

$2.39

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

UPPER CONTROL ARM, RH, BLACK [CONTROL ARM ONLY]

1823810-067

$242.05

UPPER CONTROL ARM, LH, BLACK [CONTROL ARM ONLY]

1823809-067

$242.05

RING-RET INT 1.125"

7710642

$2.39

BEARING-SPHERICAL UCA 31MM

7061179

$33.32

WASHER-M12X25X1.6 THRU HARD ZOD

7556994

$3.19

NUT, NYLOK

7547464

$3.19

BUSHING-SKI PIVOT

5438460

$15.99

BUSHING

5136910

$7.99

SCR-M10X1.5X75 10.9 HCS ZOD

7519015

$5.59

WSHR-FL .406X.812X.065-Y

7555806

$1.49

WSHR-FL .406X.812X.065-Y

7555806

$1.49

RING, RETAINING

7710539

$2.39

KIT-BEARING SPHERICAL LWR 10MM

2204229

$31.99

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$3.99

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$3.99

LOWER CONTROL ARM, RH, BLACK [CONTROL ARM ONLY]

1823806-067

$309.83

LOWER CONTROL ARM, LH, BLACK [CONTROL ARM ONLY]

1823805-067

$309.83

SHAFT-PIVOT LCA FRT

5141029

$32.37

ASM., SPINDLE, F/C, RH [INCL. 10]

1823876

$244.99

ASM., SPINDLE, F/C, LH [INCL. 10]

1823875

$244.99
