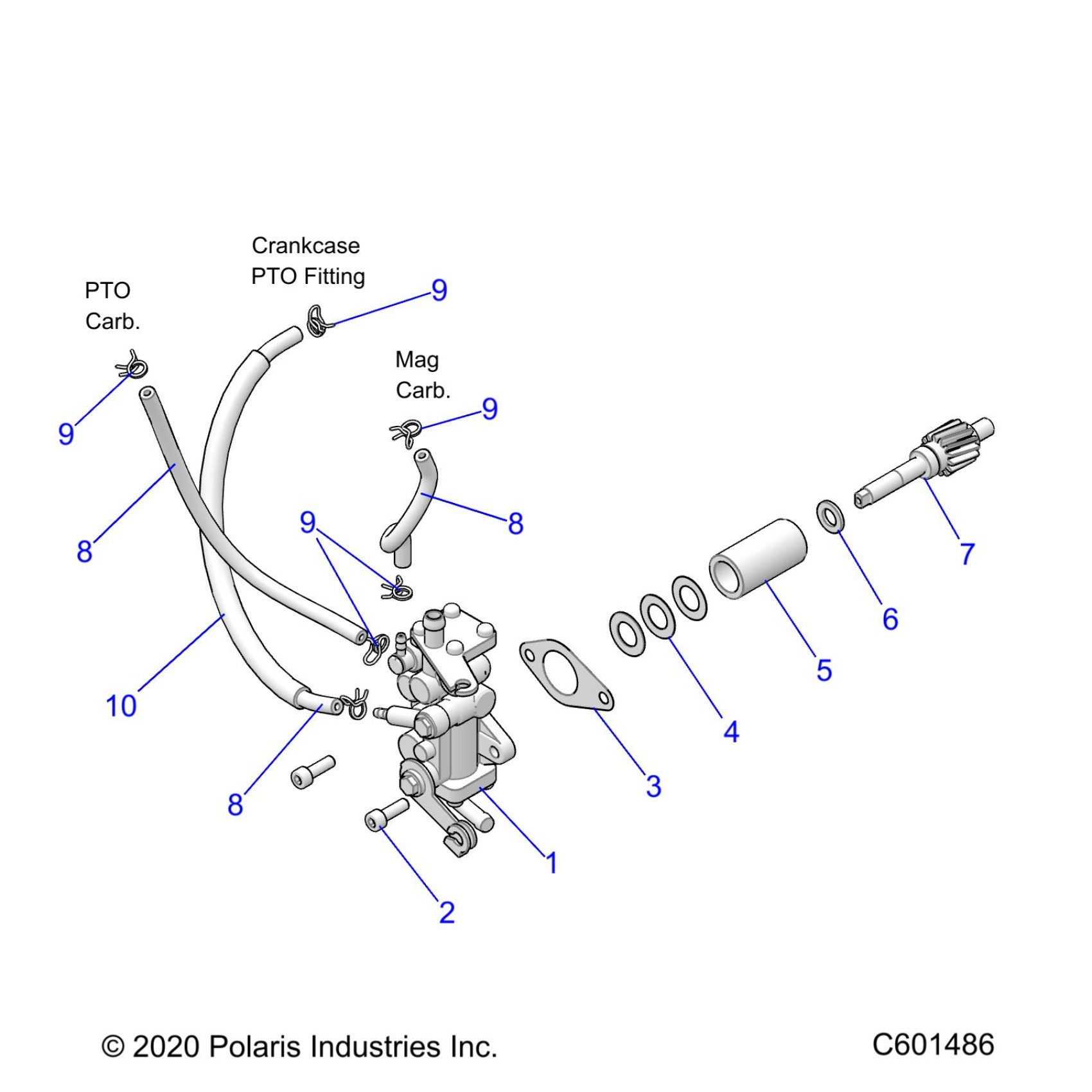

Polaris 550 INDY LXT ES/NORTH EDITION (R01) - S23CED5TSL/TSU ENGINE, OIL PUMP - S23CED5TSL/TSU (C601486) Diagram

#

Description
Price

-

ASM-TUBE,OIL,180MM PTO HOSE AND CLAMPS

8450184

$9.70

-

ASM-TUBE,OIL,130MM MAG HOSE AND CLAMPS

8450186

$7.27

-

ASM-TUBE,OIL,220MM IMPULSE HOSE, CONVOLUTE, AND CLAMPS

8450188

$10.51

1

ASM-OIL PUMP

1205792

$299.99

2

SCREW-CAP,M5X16

7520789

$3.19

3

GASKET-OIL PUMP

5814696

$12.94

4

SHIM-0.15

5141619

$3.22

4

SHIM-0.30

5141620

$3.22

4

SHIM-0.60

5141621

$4.03

5

BUSH-OIL PUMP

5143729

$14.99

6

SPACER

5141622

$2.39

7

GEAR-OIL PUMP

5141635

$89.99

8

LINE, OIL, 600 CM, SERVICE SVC

8450061-600

$56.65

8

LINE, OIL, 600 CM, SERVICE SVC

8450061-600

$56.65

8

LINE, OIL, 600 CM, SERVICE SVC

8450061-600

$56.65

9

CLAMP-7 MM ID

7080603

$1.59

9

CLAMP-7 MM ID

7080603

$1.59

9

CLAMP-7 MM ID

7080603

$1.59

9

CLAMP-7 MM ID

7080603

$1.59

10

TUBING, CONVOLUTED SVC

8360056-25

$4.03
