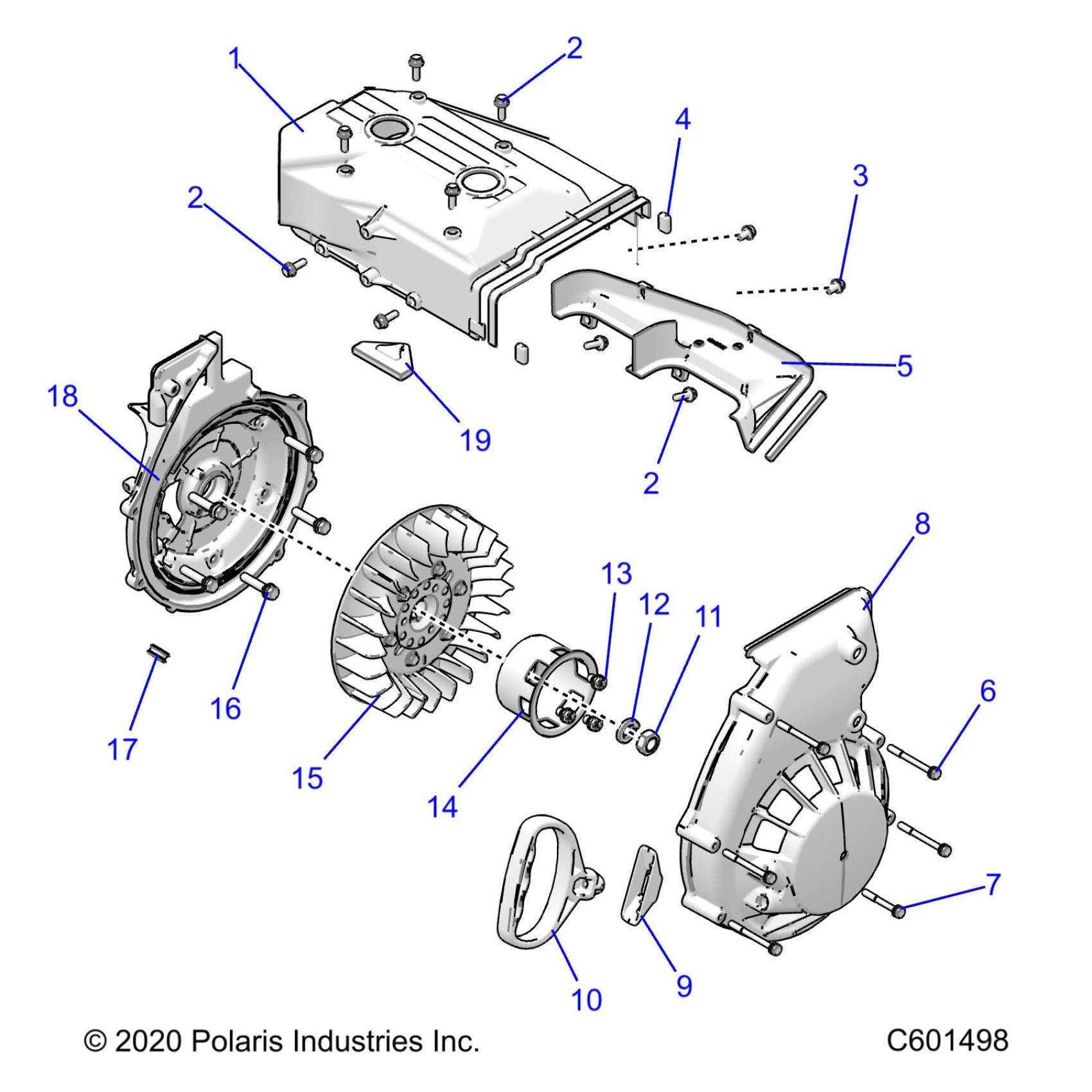

Polaris 550 INDY LXT ES/NORTH EDITION (R01) - S23CED5TSL/TSU ENGINE, BLOWER HOUSING and RECOIL STARTER - S23CED5TSL/TSU (C601498) Diagram

#

Description
Price

1

BAFFLE-HEAD

3023400

$119.99

2

SCREW-HXFL-M6X1.0X20 8.8 ZPC

7518141

$4.79

2

SCREW-HXFL-M6X1.0X20 8.8 ZPC

7518141

$4.79

2

SCREW-HXFL-M6X1.0X20 8.8 ZPC

7518141

$4.79

3

SCREW-HXFL-M6X1.0X12 8.8 ZPB

7517704

$7.19

4

CAP, CYLINDER BAFFLE

3085690

$9.70

5

BAFFLE-CYLINDER

3023401

$89.99

6

BOLT, M6x65

7520782

$8.79

7

BOLT,M6X50

7520783

$3.99

8

ASM-RECOIL

3023393

$179.11

9

ISOLATOR, RECOIL HANDLE

5414288

$4.84

10

HANDLE, RECOIL, BLACK

5435154-070

$8.89

11

NUT-FLYWHEEL

7547895

$3.99

12

SPRING-WASHER

7557228

$3.19

13

BOLT,M8X12

7520784

$2.99

14

PULLEY-STARTER

5141617

$36.41

15

ASM-FLYWHEEL

3023396

$589.99

16

BOLT,M8X40

7520778

$3.19

17

GROMMET, WIRE HARNESS

-------

Unavailable

18

HOUSING-BLOWER

3023514

$178.08

19

COVER-BAFFLE,CYL

5416455

$6.46
