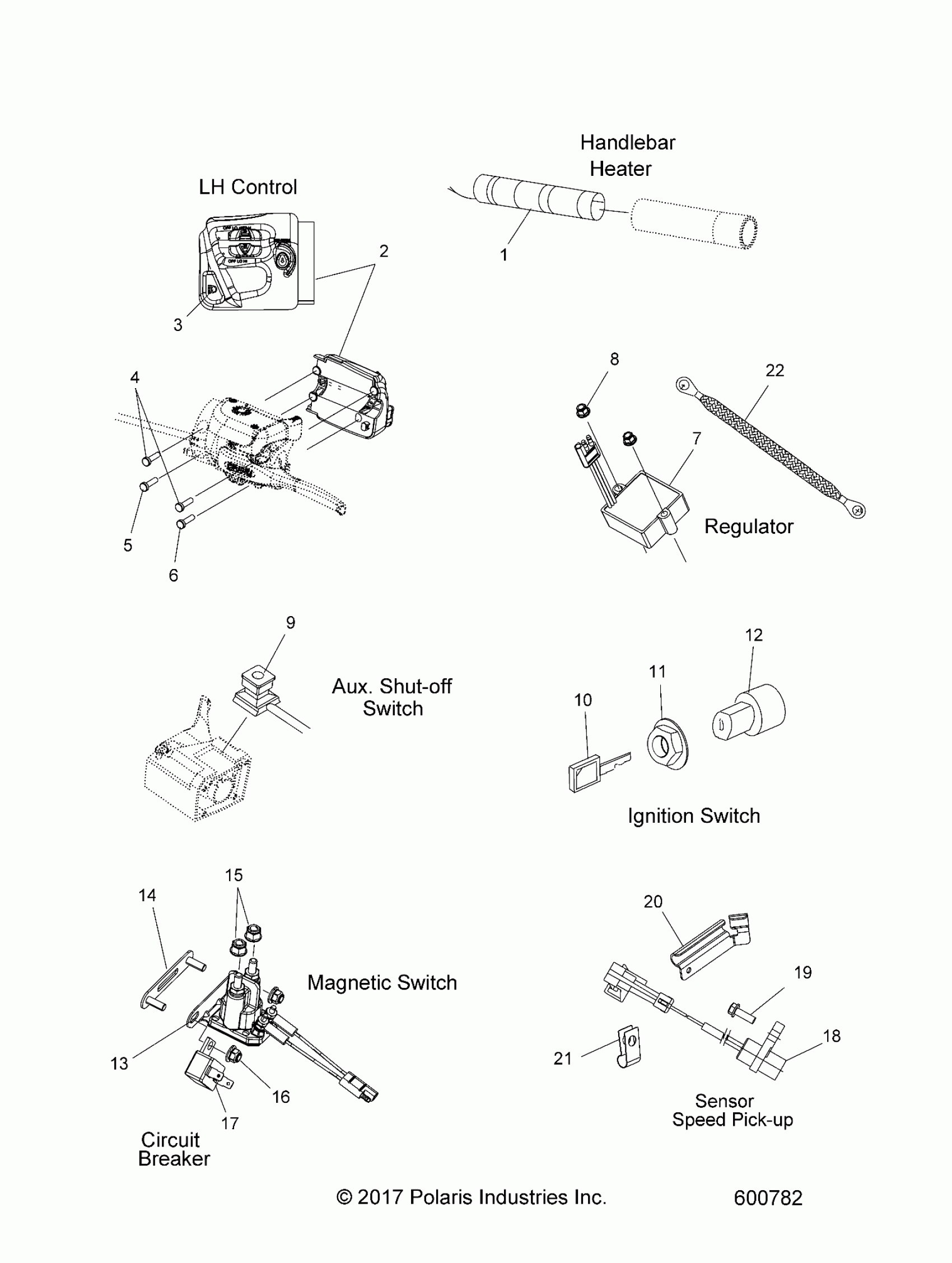

Polaris 550 INDY LXT ES/NORTH EDITION (R01) - S23CED5TSL/TSU ELECTRICAL, SWITCHES and COMPONENTS - S23CED5TSL/TSU (600782) Diagram

HEATER, GRIP, LO/MED/HI

2413079

$58.08

ASM., LH CONTROL, REV. [INCL. 3]

2010371

$76.89

BUTTON, SWITCH, HI/LO, LH CONTROL

5438874

$34.99

SCR-10X.75 TX PN PLST-243

7517441

$2.39

SCR-10X1.12 TX PN PLS-Y

7512078

$1.49

SCR-#10X1 1/2 TX PN PLASTITE-B

7517566

$3.99

REGULATOR-AC/DC SELF START

4013459

$238.79

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

SWITCH, AUXILLARY SHUT-OFF, HON

4015322

$134.99

Cap w/Key NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on underside of switch body behind console. Key dot code found o

5410611

Unavailable

Nut, Ignition

7547035

$8.79

KIT, IGNITION SWITCH, ES, COMPLT. [INCL. 10-12]

2205055

$76.89

SWITCH, MAGNETIC

4012358

$52.60

ASM., STUD PLATE

1017255

$13.75

NUT-1/4-20 NYLOC FLANGED-Y

7542153

$1.59

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

BREAKER, CIRCUIT, 12 AMP.

2411592

$28.32

SENSOR, SPEED PICKUP LG

2412968

$116.17

SCR-1/4-20X.75,TR/TX-M

7518280

$1.49

CLAMP-SPEED SENSOR WIRE

5266053

$8.79

CLAMP-CABLE

7080367

$2.39

STRAP, GROUNDING, SHORT

2412988

$49.99
