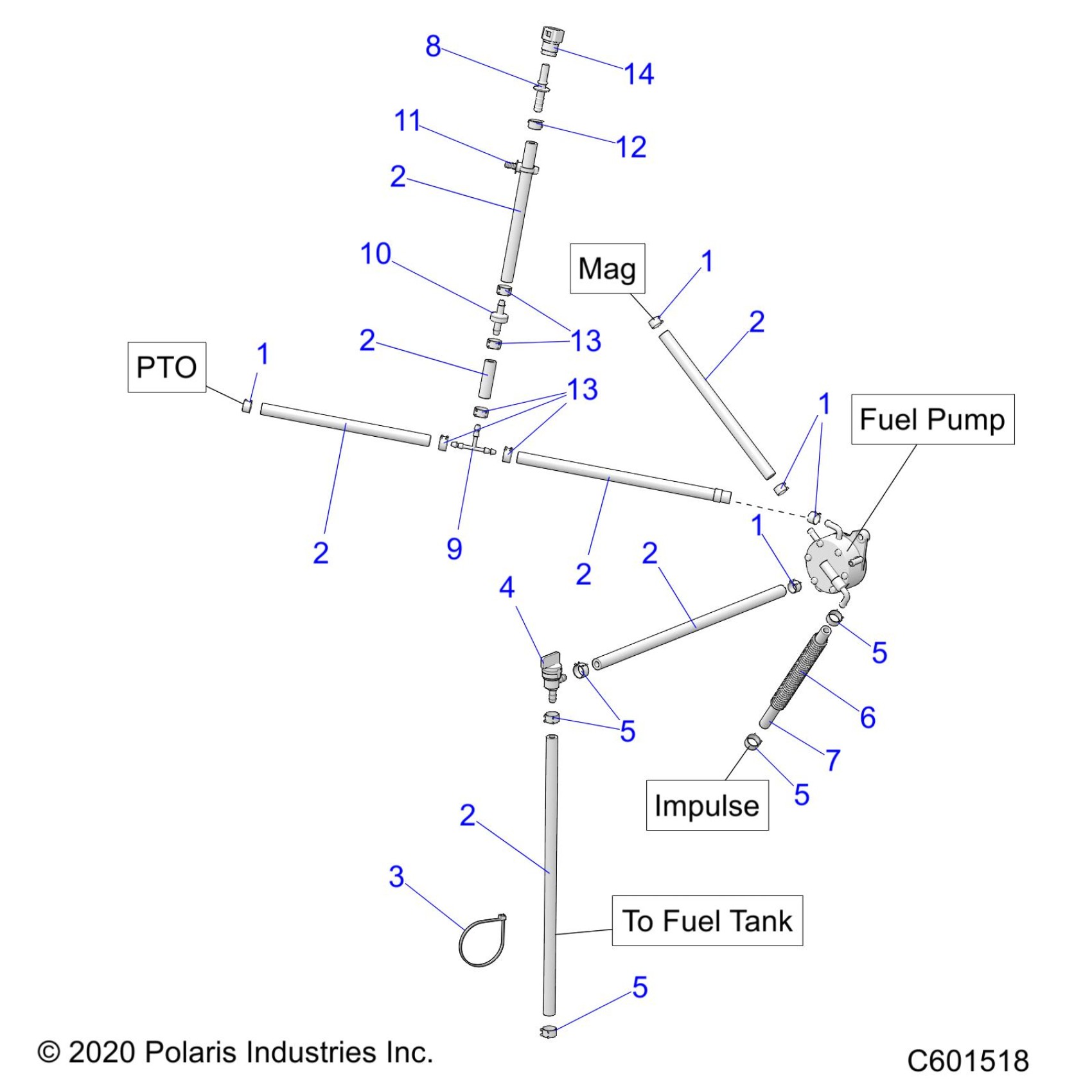

Polaris 550 INDY LXT ES/NORTH EDITION (R01) - S22CED5TSL/TSU FUEL SYSTEM, FUEL PUMP and FUEL LINES - S22CED5TSL/TSU (C601518) Diagram

ASM., FUEL PUMP SEE-FUEL SYSTEM, FUEL PUMP MOUNTING PG.

-------

Unavailable

ASM-SUB IMPULSE HOSE INCL. HOSE, CLAMPS, CONDUIT

1206314

$9.70

ASM-SUB MAG CARB HOSE INCL. HOSE, CLAMPS

1206315

$24.27

ASM-SUB PTO CARB HOSE INCL. HOSE, T-FITTING, CHECK VALVE, FITTING, CLAMPS

1206316

$89.99

ASM-SUB TANK VALVE PUMP HOSE INCL. HOSE, VALVE, CLAMPS

1206317

$49.99

CLAMP, HOSE, SILVER

7080558

$3.99

CLAMP, HOSE, SILVER

7080558

$3.99

CLAMP, HOSE, SILVER

7080558

$3.99

CLAMP, HOSE, SILVER

7080558

$3.99

HOSE, FUEL [SVC]

8450117-150

Unavailable

HOSE, FUEL [SVC]

8450117-150

Unavailable

HOSE, FUEL [SVC]

8450117-150

Unavailable

HOSE, FUEL [SVC]

8450117-150

Unavailable

HOSE, FUEL [SVC]

8450117-150

Unavailable

HOSE, FUEL [SVC]

8450117-150

Unavailable

HOSE, FUEL [SVC]

8450117-150

Unavailable

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

VALVE, FUEL, PLASTIC, 90 DEGREE

7052249

$24.27

HOSE CLAMP, RED

7080003

$1.49

HOSE CLAMP, RED

7080003

$1.49

HOSE CLAMP, RED

7080003

$1.49

HOSE CLAMP, RED

7080003

$1.49

Conduit, Convoluted [SVC]

8360052-305

Unavailable

LINE, FUEL [SVC]

8450040-150

Unavailable

FITTING-HOSE PTO CARB

5457302

$5.65

FITTING-TEE, 1/4-1/4-BRB-NY

7052075

$9.59

VALVE, CHECK, VACUUM

7052390

$7.27

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

CLAMP-HOSE, 17/32, GREEN

7081432

$3.99

HOSE CLAMP, RED

7080003

$1.49

HOSE CLAMP, RED

7080003

$1.49

CAP-END PTO CARB HOSE

5457303

$12.94
