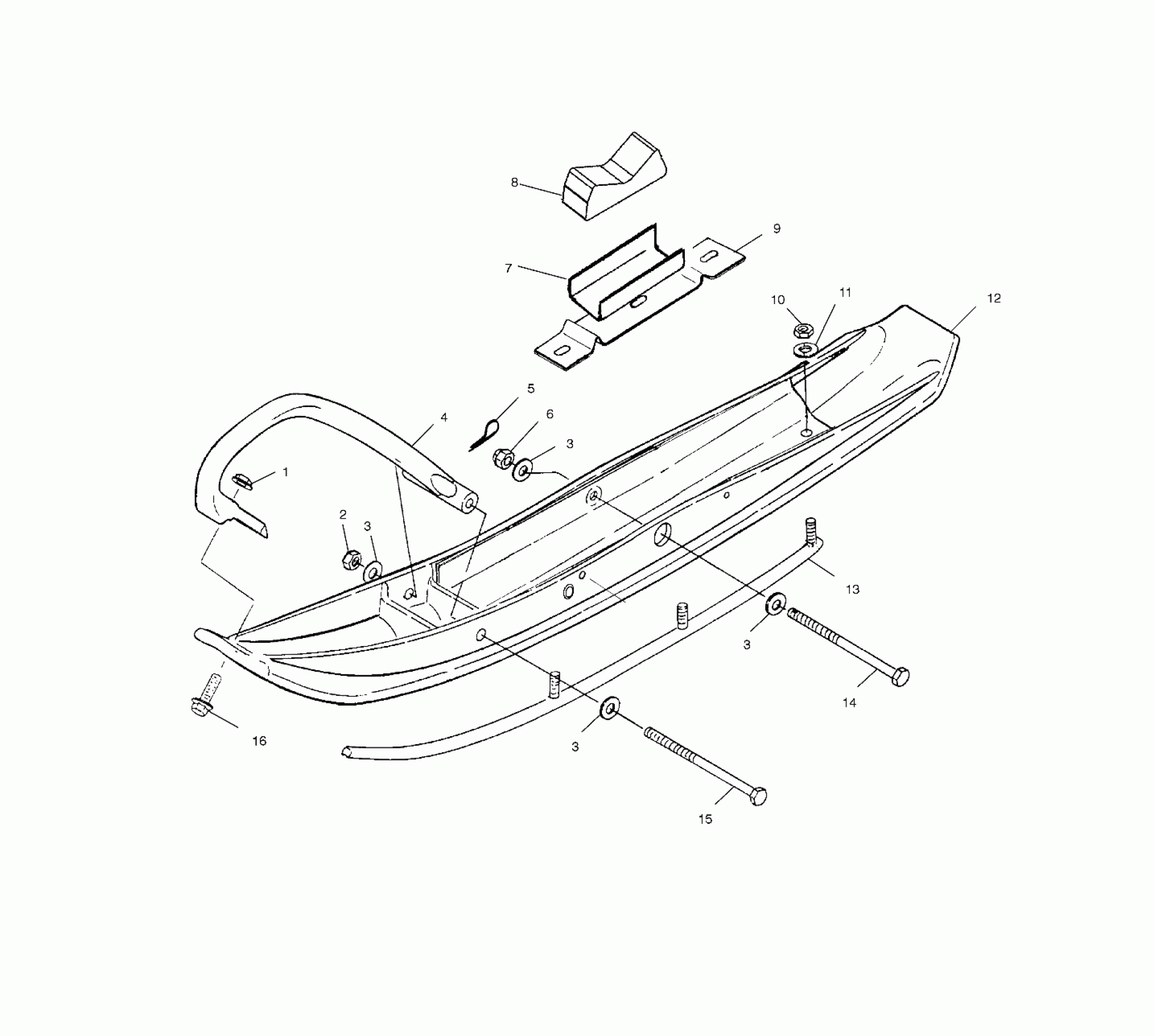

Polaris 550 F/C CLASSIC - S02ND5BS SKI - S02ND5BS (4968736873B001) Diagram

#

Description
Price

1

NUT LOCK(10)

7542321

$1.49

2

NUT-LOCK(10)

7542439

$1.49

3

WSHR-.813X.406X.105-Y

7555832

$2.39

3

WSHR-.813X.406X.105-Y

7555832

$2.39

3

WSHR-.813X.406X.105-Y

7555832

$2.39

3

WSHR-.813X.406X.105-Y

7555832

$2.39

4

TOE-PLASTIC SKI,BLK

5434165-070

$40.46

5

PIN, COTTER(10) Substituted by 7661205

7661209

Unavailable

6

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

7

RETAINER-SKI RUBBER

5243824

$27.99

8

STOP,RUBBER (If built before 9/28/01)

5411094

Unavailable

8

Stop, Rubber (If built after 9/28/01)

5412018

$24.27

9

SUPPORT,SKI,RUBBER,BLK

5241912-067

Unavailable

10

NUT-5/16-18 NYLOK-Y

7542324

$1.49

11

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

12

ASM-CMP SKI BLANK W/RK SDL,BLK

1820821-070

Unavailable

13

SKAG,3" 90� COMP (Pair)

2872566

$55.99

14

SCREW,(10)

7512596

$19.99

15

BOLT(10)

7515514

$7.19

16

BOLT(10)

7515307

$3.99
