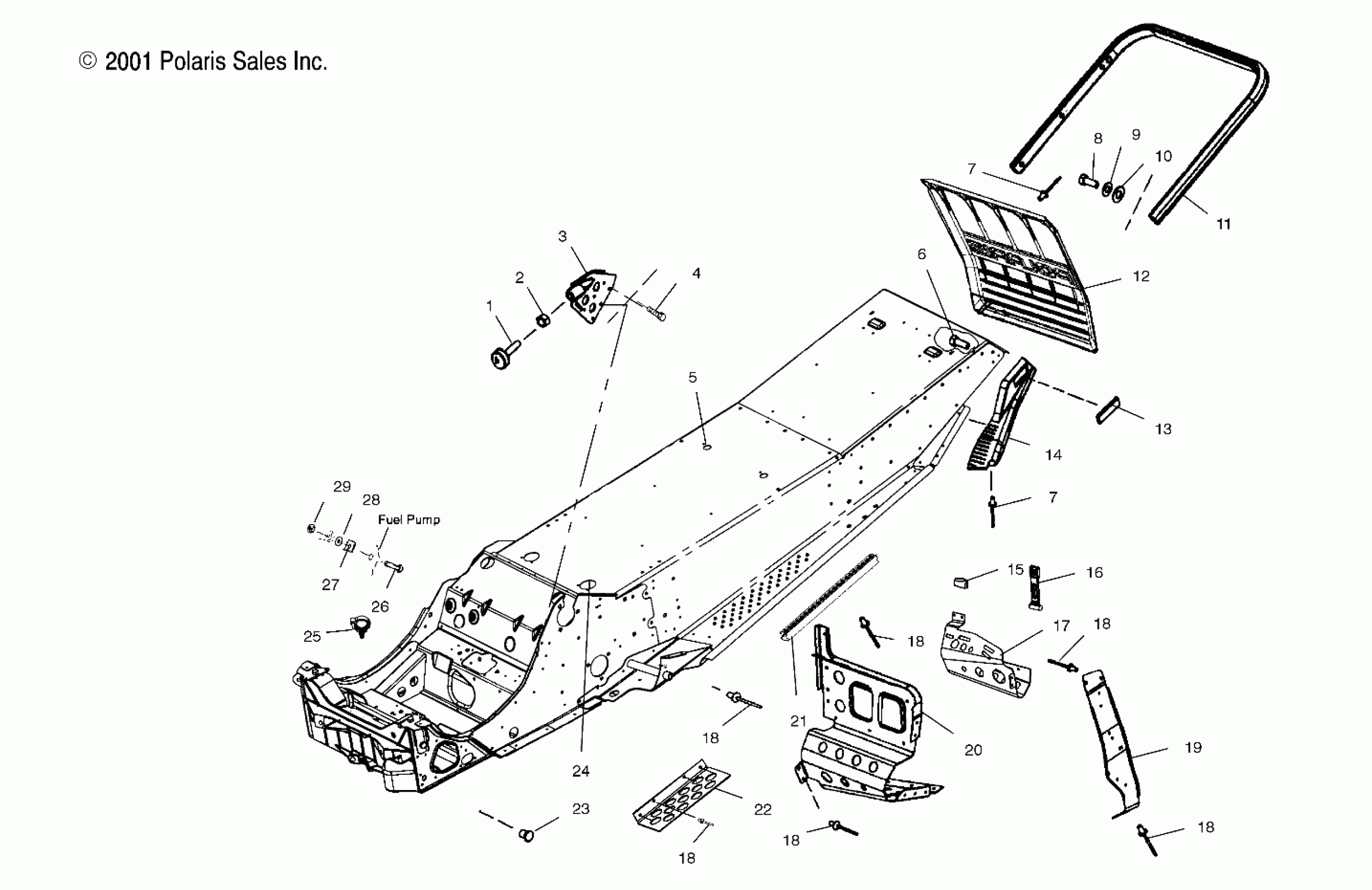

Polaris 550 F/C CLASSIC - S02ND5BS CHASSIS - S02ND5BS (4968736873A003) Diagram

#

Description
Price

-

ASM-CHASSIS,SVC,EDGE,NATURAL

1013686-309

Unavailable

1

STOP,TORQUE COURSE 3/8-16

3021104

$20.22

2

NUT(10)

7542404

$1.59

3

WELD-TORQUE STOP,FUJI

1013399

$27.19

4

SCREW

7517632

$5.59

5

CAPLUG, 3/4"(10)

7080592

Unavailable

6

SCREW(10)

7517441

$2.39

7

RIVET(50)

7621472

$1.49

7

RIVET(50)

7621472

$1.49

8

BOLT(10)

7512240

$3.99

9

LOCK WASHER(10)

7552801

$1.59

10

WASHER(10)

7558301

$1.49

11

BUMPER,REAR

2632165-309

Unavailable

12

FLAP,SNOW,EDGE,BLK W/CHROME

5433961-1118

Unavailable

13

REFLECTOR ASM,RED

2670133

$5.75

14

ASM-SNOWSKIRT/REFL,LH,BLK

2632443-070

$64.75

14

ASM-SNOWSKIRT/REFL,RH,BLK

2632444-070

$55.99

15

EXTRUSION,CLUTCHGUARD

5521238

$6.46

16

STRAP-AIRBOX TOP

5433150

$24.27

17

MOUNT-CONSOLE,TOE CLIP,LH

5245457

Unavailable

17

MOUNT-CONSOLE,TOE CLIP,RH

5245458

Unavailable

18

RIVET-3/16-.090-.290

7661637

$1.49

18

RIVET-3/16-.090-.290

7661637

$1.49

18

RIVET-3/16-.090-.290

7661637

$1.49

18

RIVET-3/16-.090-.290

7661637

$1.49

18

RIVET-3/16-.090-.290

7661637

$1.49

18

RIVET-3/16-.090-.290

7661637

$1.49

19

SUPPORT-FOOTREST,LH

5242741

$19.68

19

SUPPORT-FOOTREST,RH

5242742

$32.37

20

FOOTREST-LH,.080

5245288

Unavailable

20

Footrest, RH

5242740

Unavailable

21

BRACE-TUNNEL ROLL

5245118

$23.81

22

GUARD-BELT,EDGE

5245066

$8.98

23

PLUG, HOLE(10)

7080416

$5.65

24

CAPLUG-1 5/8"

7080934

$1.83

25

CLIP, PLASTIC(10)

4020139

$4.79

26

BOLT-CARRIAGE(10)

7512275

$3.99

27

SPEED NUT(10)

7670021

$6.99

28

WASHER,NYLON

7555932

$2.39

29

NUT-LOCK(10)

7542122

$1.49
