Description

Price

1

SEAL-OIL

3610030

$20.22

1

SEAL-OIL

3610030

$20.22

2

NUT-CHAIN ADJUSTER,3/8-16

5132237

$9.59

3

SCREW(10)

7512470

Unavailable

4

PIN,CHAIN TIGHTENER

7662210

Unavailable

4

BEARING

3553002

$11.99

4

WHEEL,C/C IDLER

5630123

Unavailable

4

WASHER THRUST(10)

7558702

$1.59

4

TIGHTENER,CHAINCASE

1332213

$159.99

4

BLOCK,TIGHTENER,W/ANGLE

5630958

$159.99

5

BEARING,BALL

3514309

$15.87

5

BEARING,BALL

3514309

$15.87

6

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

6

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

7

SPKT,19T,3/4W,15 SPL,HV,PM

3221095

$44.99

8

WASHER, SLOTTED(10)

7571620

$7.19

9

NUT

7542811

Unavailable

10

COTTER PIN(10)

7661401

$1.49

11

GASKET,O-RING,CHAINCASE

5411497

$20.22

12

KIT,SHIFT FORK/SHAFT (Incl. 13,19)

2200363

Unavailable

12

Fork, Shift

5130805

Unavailable

13

PIN, SHIFT FORK(10)

7661826

$5.65

13

PIN, SHIFT FORK(10)

7661826

$5.65

14

COVER-CC,REV,MACH,7.92 (If built after 4/01/01)

5133117

Unavailable

14

CVR,CC,REV,MACH,7.92,V-PRO (If built before 4/01/01)

5132594

Unavailable

15

ASM-DIPSTICK,W/MAGNET,EDGE

1332250

$44.99

16

SCREW(10)

7512242

$2.39

17

Seal, Oil

3610029

$8.89

18

RING, RETAINER(10)

7710415

$3.99

19

WELD-SHIFT SHAFT,BLK

1341388-067

Unavailable

20

WASHER,THRUST(10)

7555877

$3.99

20

WASHER,THRUST(10)

7555877

$3.99

21

GEAR,SPUR PINION

1341075

$149.99

21

Bearing, Needle

3554508

$16.99

22

CHAIN,HYVO 72P,3/4W Substituted by 3221132

3221110

$164.99

23

SPROCKET,PINION

1341241

Unavailable

23

Bearing, Needle

3554508

$16.99

24

SCREW(10)

7512019

$3.99

25

SHAFT,PINION,W/WRENCH FLATS

5131770

Unavailable

26

BRACKET-CHAIN RETENTION,7.05

5243162

Unavailable

27

BOLT(10)

7515477

$34.99

28

Asm., Jackshaft (See Drive Train Pg. B6, Ref. 17)

-------

Unavailable

29

CHAINCASE-7.92 CD,ALUM

5132773

Unavailable

30

PLUG(10)

7052115

$5.65

31

WASHER, REVERSE(10)

7555871

$5.59

32

SPKT.ASM,39T,3/4W,REV,HVPM

1341243

Unavailable

33

Coupler, Drive

5130720

Unavailable

34

ASM-REVERSE GEAR

1341410

$559.99

35

SPRING-COMPRESSION

7041887

$44.99

36

RETAINER,DRIVE COUPLER

5130727

Unavailable

37

LOCK WASHER(10)

7552901

$1.49

38

SCREW(10)

7517581

$1.59

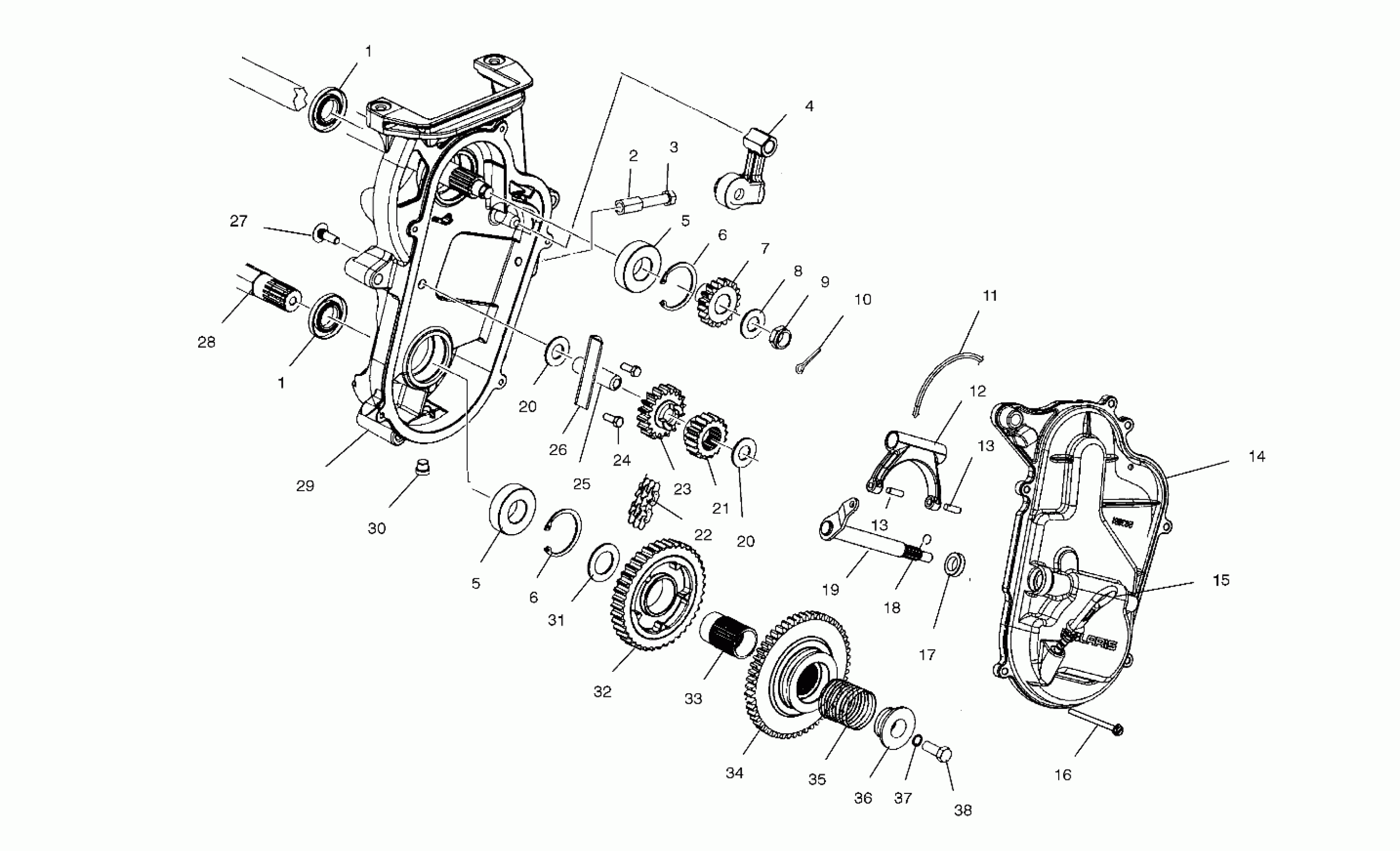

Polaris 550 F/C CLASSIC - S02ND5BS CHAINCASE - S02ND5BS (4968736873B005) Diagram

SEAL-OIL

SEAL-OIL

NUT-CHAIN ADJUSTER,3/8-16

SCREW(10)

PIN,CHAIN TIGHTENER

BEARING

WHEEL,C/C IDLER

WASHER THRUST(10)

TIGHTENER,CHAINCASE

BLOCK,TIGHTENER,W/ANGLE

BEARING,BALL

BEARING,BALL

RET.RING-TRUARC(N5000-206)-P

RET.RING-TRUARC(N5000-206)-P

SPKT,19T,3/4W,15 SPL,HV,PM

WASHER, SLOTTED(10)

NUT

COTTER PIN(10)

GASKET,O-RING,CHAINCASE

KIT,SHIFT FORK/SHAFT (Incl. 13,19)

Fork, Shift

PIN, SHIFT FORK(10)

PIN, SHIFT FORK(10)

COVER-CC,REV,MACH,7.92 (If built after 4/01/01)

CVR,CC,REV,MACH,7.92,V-PRO (If built before 4/01/01)

ASM-DIPSTICK,W/MAGNET,EDGE

SCREW(10)

Seal, Oil

RING, RETAINER(10)

WELD-SHIFT SHAFT,BLK

WASHER,THRUST(10)

WASHER,THRUST(10)

GEAR,SPUR PINION

Bearing, Needle

CHAIN,HYVO 72P,3/4W Substituted by 3221132

SPROCKET,PINION

Bearing, Needle

SCREW(10)

SHAFT,PINION,W/WRENCH FLATS

BRACKET-CHAIN RETENTION,7.05

BOLT(10)

Asm., Jackshaft (See Drive Train Pg. B6, Ref. 17)

CHAINCASE-7.92 CD,ALUM

PLUG(10)

WASHER, REVERSE(10)

SPKT.ASM,39T,3/4W,REV,HVPM

Coupler, Drive

ASM-REVERSE GEAR

SPRING-COMPRESSION

RETAINER,DRIVE COUPLER

LOCK WASHER(10)

SCREW(10)
