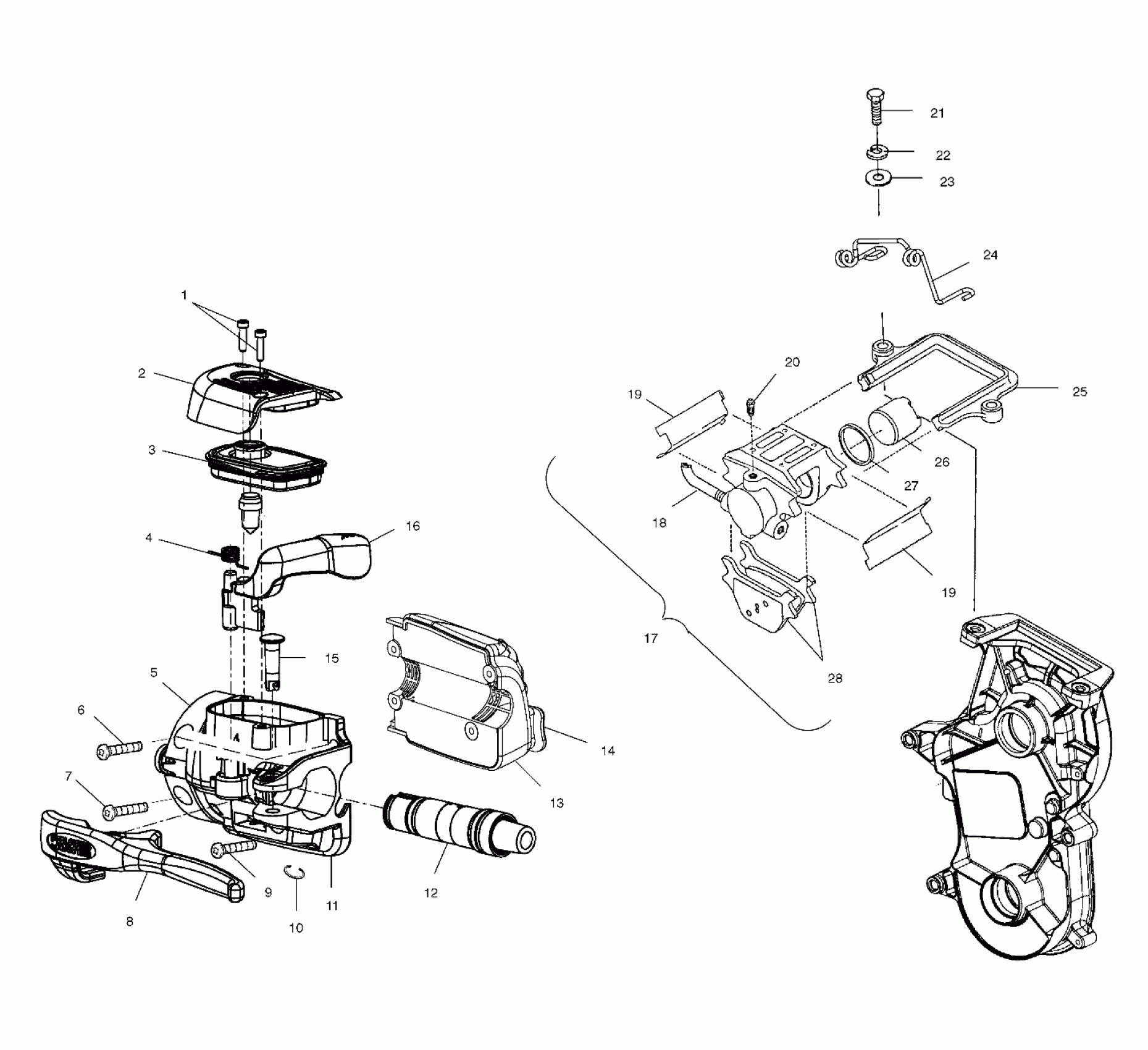

Polaris 550 F/C CLASSIC - S02ND5BS BRAKE - S02ND5BS (4968736873A012) Diagram

#

Description
Price

1

KIT,COVER SCREW,(HAYES)

2201254

$19.99

2

KIT,COVER ASM,(HAYES) (Incl. 1,3)

2201255

$89.03

3

GASKET

-------

Unavailable

4

KIT,PARKLEVER SPRING

2201250

$24.27

5

ASM-MASTER CYL 5/8 WILWOOD (Incl. 2,4,8,11,12,15)

2010209

$304.98

6

SCREW(10)

7517441

$2.39

7

SCREW(10)

7512078

$1.49

8

KIT-LEVER,3 NOTCH/PIN/RING

2201943

$52.60

9

SCREW(10)

7517566

$3.99

10

KIT-SNAP RING

2201945

$8.79

11

SWITCH,BRAKE LIGHT

4010157

Unavailable

11

KIT-BODY,PIVOT PIN,SNAP RING

2201948

$304.98

12

KIT-5/8" CARTRIDGE SUB ASM

2201944

Unavailable

13

CONTROL ASM,LH,(BASIC)

2010167

$93.08

14

BUTTON SWITCH HI/LO

5433291

Unavailable

15

KIT-PIVOT PIN,ALUM W/SNAP RING

2201946

$24.27

16

KIT,PARKLEVER & SPRING (Incl. 4)

2201251

$44.51

17

BRAKE CALIPER,HYBRID,AIR (Incl. 26,27,28)

1910350

Unavailable

18

LINE-BRAKE,EDGE,BRAIDED

1910546

Unavailable

19

KIT,CLIP SPRING (Qty. 2)

2200467

Unavailable

19

KIT,CLIP SPRING (Qty. 2)

2200467

Unavailable

20

KIT, INLET

1930735

$9.11

21

BOLT(10)

7515521

$3.99

22

WASHER(10)

7552603

$1.49

23

WASHER(10)

7555801

$3.99

24

GUIDE-ROPE

5244413

Unavailable

25

KIT,CALIPER BRKT.

1930733

Unavailable

26

KIT, PISTON SEAL (Incl. 27)

1930734

Unavailable

27

SEAL

2200466

$32.37

28

KIT,BRAKE,PAD TYPE 81(LARGE) (Incl. 19)

2201430

Unavailable

28

KIT,BRAKE,PAD TYPE 81(SMALL) (Incl. 19)

2201429

Unavailable
