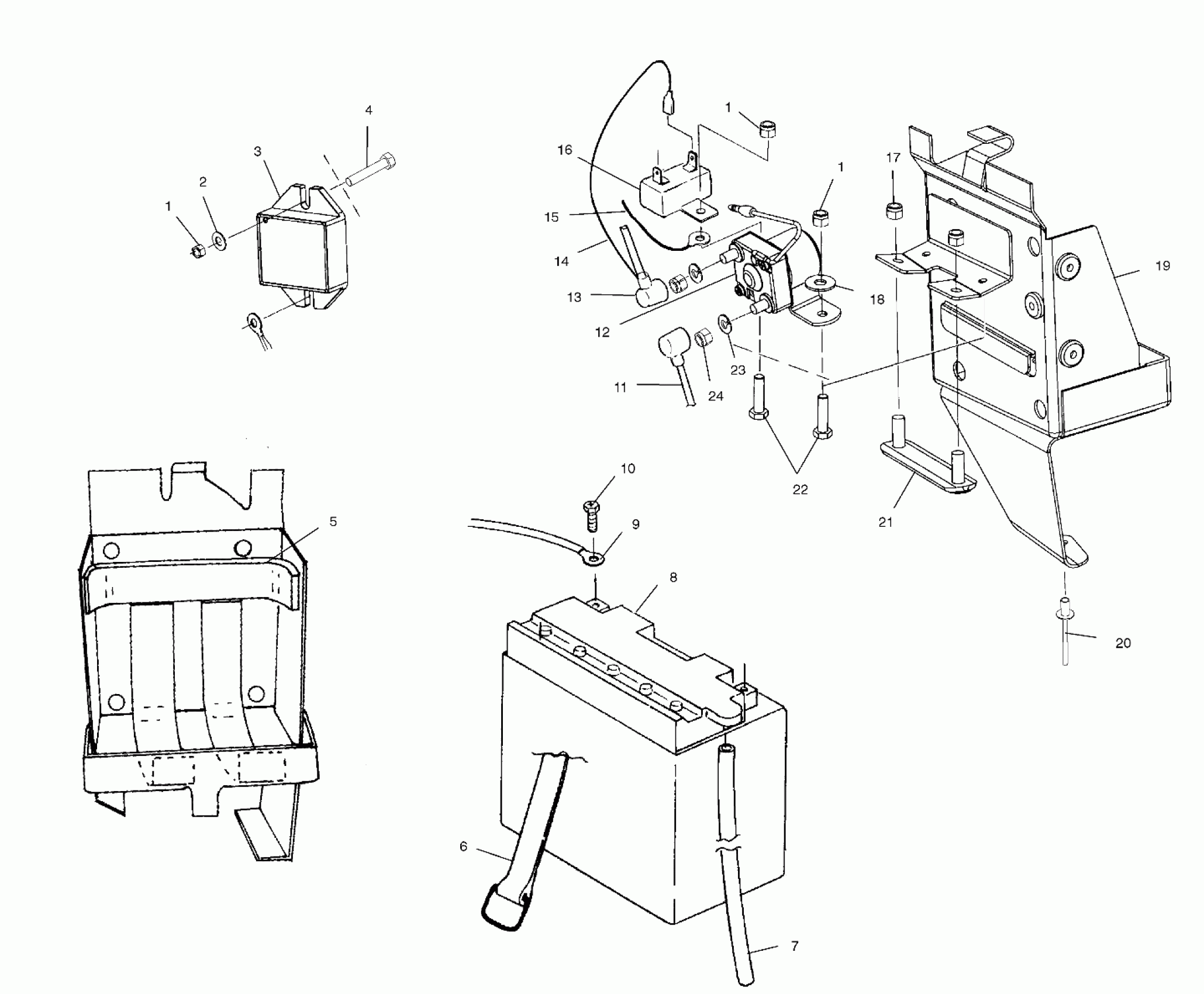

Polaris 550 F/C CLASSIC - S02ND5BS BATTERY BOX - S02ND5BS (4968736873C002) Diagram

#

Description
Price

1

NUT(10)

7541925

$1.49

1

NUT(10)

7541925

$1.49

1

NUT(10)

7541925

$1.49

2

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

3

REGULATOR,AC/DC 14.3V

4010355

$116.17

4

SCREW, HX/SEMS

7517263

Unavailable

5

PAD-BATTERY

5810290

$7.27

6

STRAP ASM,BATT.HOLD.

2450020

$29.03

7

TUBE,BATTERY VENT

5432077

Unavailable

8

Battery

4140006

$99.99

9

CABLE,11",BATT.,BLK.

4010114

Unavailable

10

BOLT,BATT,KIT(SHORT)

2200361

$3.99

11

CABLE,SOL/STRT,BLK,16.5"

4010107

Unavailable

12

Switch, Magnetic (See Starting Motor Pg. C3, Ref. 15)

-------

Unavailable

13

INSULATOR-CABLE

5410346

$6.39

14

CABLE ASM,SOLENOID

2460393

$36.41

15

WIRE,JUMPER,SOL/BATT,8.5"

4010108

Unavailable

16

CIRCUIT BREAKER

2434008

Unavailable

17

NUT-LOCK(10)

7542122

$1.49

18

WASHER, FLAT(10)

7558201

$5.79

19

WELD-BATTERY BOX,EDGE,BLK

1013679-067

Unavailable

20

RIVET, BLIND(50)

7621467

$1.49

21

WELD-STUD PLATE,BATTERY BOX

1013385

Unavailable

22

SCREW(10)

7511930

$2.39

23

Washer, Spring (See Starting Motor Pg. C3, Ref. 16)

-------

Unavailable

24

Nut (See Starting Motor Pg. C3, Ref. 14)

-------

Unavailable
