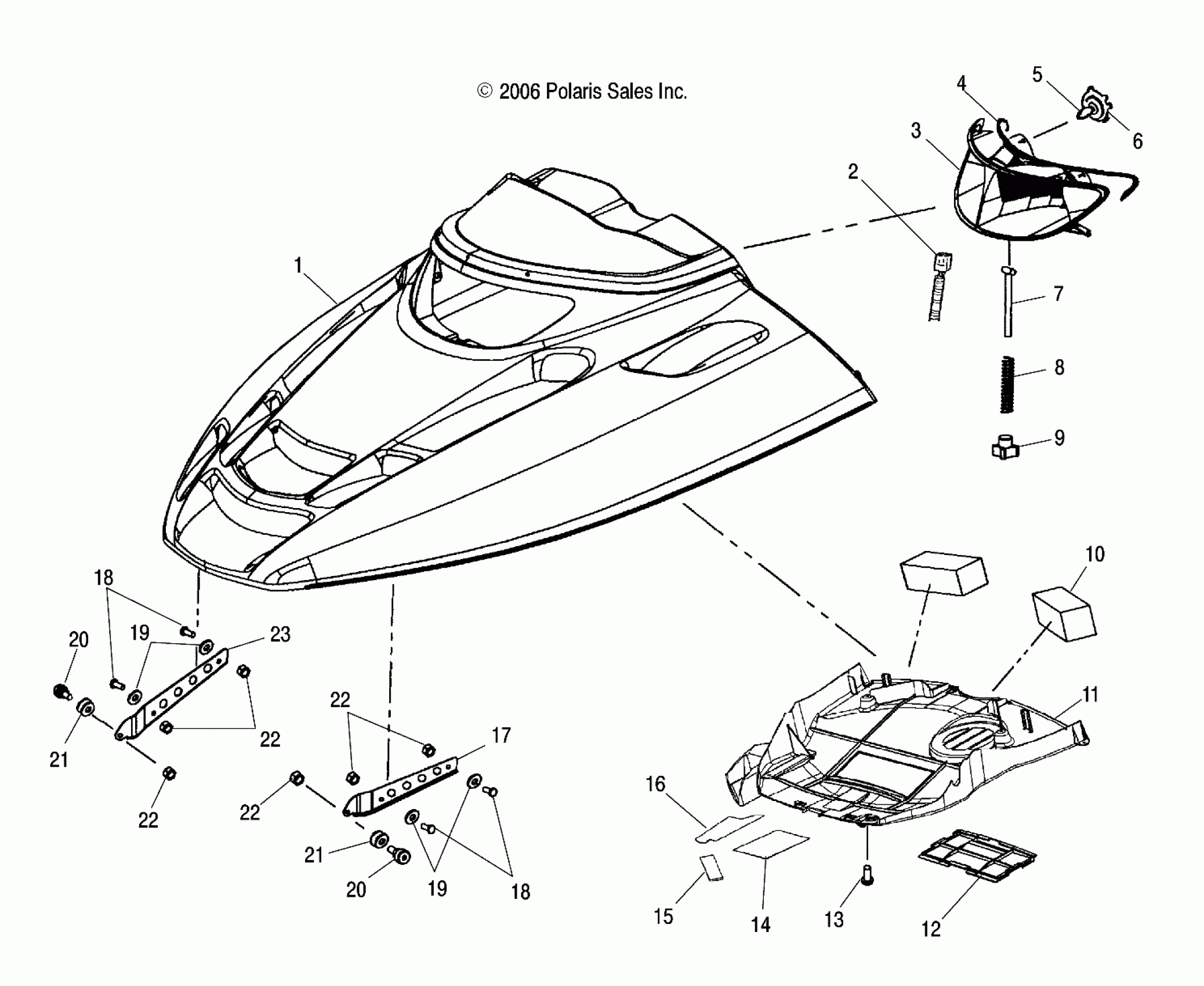

Polaris 550 EDGE LX - S07ND5BS HOOD - S07ND5BS (49SNOWHOODSUPER) Diagram

#

Description
Price

1

Asm., Hood, Edge, Pearl White

2633399-352

$654.76

2

Harness, Headlight

2461015

$66.39

3

Asm. Headlamp [Incl. Bulbs]

2410132

Unavailable

4

Seal, Headlight

5812450

$44.99

5

Bulb [60/55W]

2870448

$24.99

6

Retainer, Headlamp Bulb

4032063

Unavailable

7

Bolt, Tee Adjuster

7517872

Unavailable

8

Spring, Headlight Adjust

7041954

$3.22

9

KNOB-HEADLIGHT,ADJUST,LOCKINGB

7080887

$4.84

10

Foam, Prefilter

5811793

$24.27

11

Asm., Plenum, Foil [Incl. 14-16]

2633400

Unavailable

12

Cover, Access, Headlight

5433660

$24.27

13

SCREW

7512068

$2.39

14

Foil, Plenum, Brake Duct

5813091

$2.15

15

Foil, 4.5x1.0

5811948

Unavailable

16

Foil, Plenum

5812324

Unavailable

17

Hinge, Upper, Black, LH

5243567-067

Unavailable

18

BOLT

7512240

$3.99

18

BOLT

7512240

$3.99

19

Washer, Flat

7558301

$1.49

19

Washer, Flat

7558301

$1.49

20

Bolt

7512113

$3.99

20

Bolt

7512113

$3.99

21

Spacer

5332403

$4.84

21

Spacer

5332403

$4.84

22

Nut, Nylok

7542122

$1.49

22

Nut, Nylok

7542122

$1.49

22

Nut, Nylok

7542122

$1.49

22

Nut, Nylok

7542122

$1.49

23

Hinge, Upper, Black, RH

5243568-067

Unavailable
