Description

Price

1

Grip, Handlebar

5432634

$24.27

1

Grip, Handlebar

5432634

$24.27

2

PIN-RETAINING .186X1.780-AL

7661624

$12.79

3

RET.RING-INDUSTRIAL(2000-25)-Z

7710503

$3.99

4

LEVER, THROTTLE

5432970

$29.03

4

ASM., LEVER W/HEATER, HI/LO

2010171

$84.98

5

Switch, Auxiliary Shut-Off

4110106

$94.99

6

ADAPTOR, BLOCK, THROTTLE

5433345

$15.99

7

Plug

5431096

$2.02

7

Plug

5431096

$2.02

8

Handlebar, Black

5243355-067

$94.99

9

SCREW

7517238

$4.79

10

Collar, Console, RH

5434488

Unavailable

11

Cover, Handlebar, Black

5436562-070

$77.99

12

Slide, Handlebar Cover, Black

5433160-070

$28.32

13

Clip, Dart

4010287

$3.99

14

Collar, Console, LH

5434487

$24.99

15

HEATER, GRIP, LO/MED/HI

2410812

$52.60

16

Button, Switch, Hi/Lo, LH

5433291

Unavailable

17

Asm., Control, LH

2010206

Unavailable

18

SCREW, 1.50

7517566

$3.99

19

SCREW, 1.12

7512078

$1.49

20

SCREW, .75

7517441

$2.39

21

Block, Handlebar, Black

5630187-067

$44.99

22

Nut, Nylok

7542122

$1.49

23

Cable, Throttle

7081172

$109.99

24

Screw

7511848

$3.99

24

Screw

7511848

$3.99

25

HOLDER, WIRE

5432261

$24.27

26

WASHER

7555727

$1.49

27

SCREW, SET

7512465

$3.99

28

BLOCK, THROTTLE/BRAKE

5431592

$49.99

29

RING-RETAINING EXTERNAL

7710401

$3.99

30

WASHER

7555730

$3.99

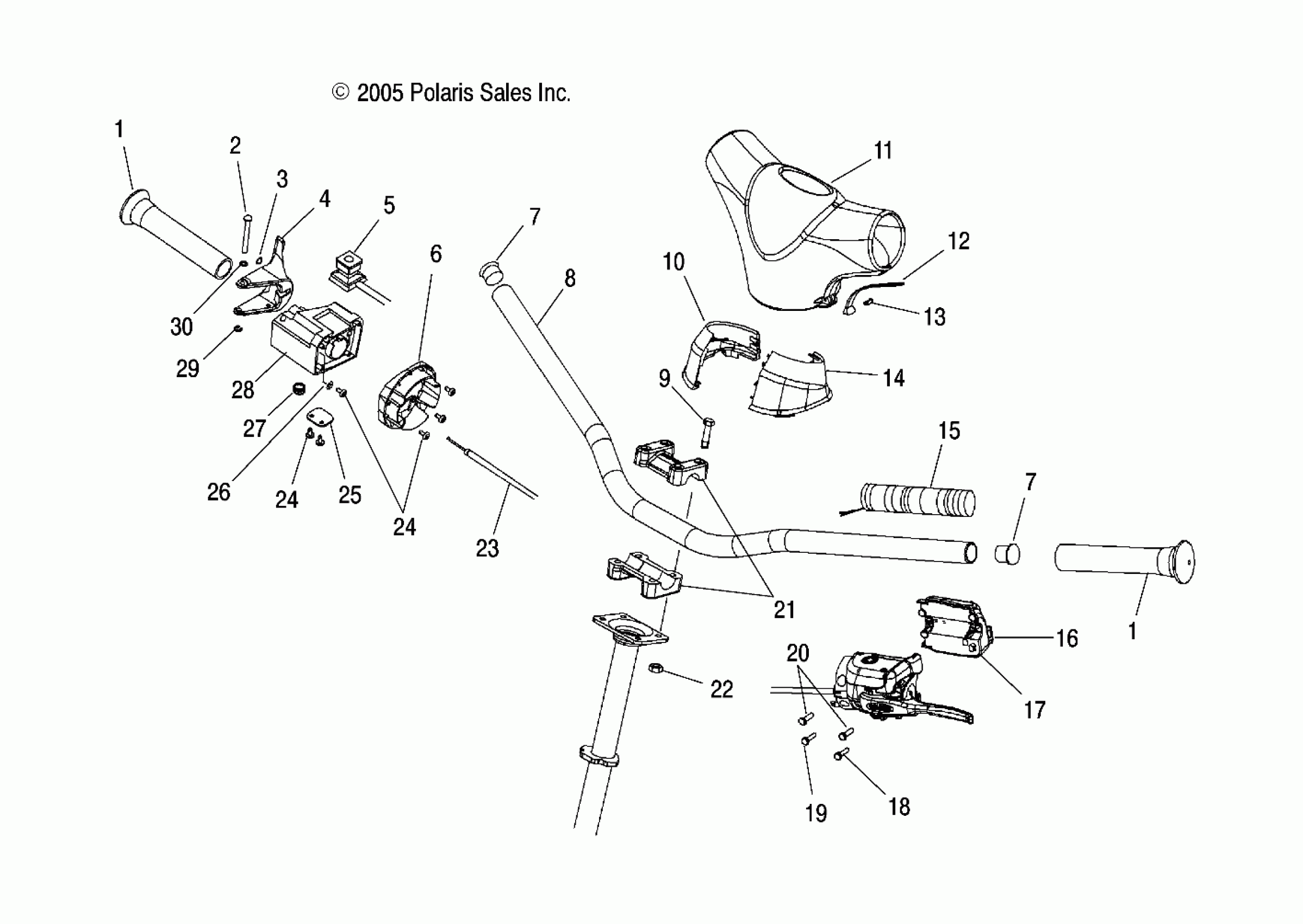

Polaris 550 EDGE LX - S07ND5BS HANDLEBAR - S07ND5BS (49SNOWHANDLEBAR550) Diagram

Grip, Handlebar

Grip, Handlebar

PIN-RETAINING .186X1.780-AL

RET.RING-INDUSTRIAL(2000-25)-Z

LEVER, THROTTLE

ASM., LEVER W/HEATER, HI/LO

Switch, Auxiliary Shut-Off

ADAPTOR, BLOCK, THROTTLE

Plug

Plug

Handlebar, Black

SCREW

Collar, Console, RH

Cover, Handlebar, Black

Slide, Handlebar Cover, Black

Clip, Dart

Collar, Console, LH

HEATER, GRIP, LO/MED/HI

Button, Switch, Hi/Lo, LH

Asm., Control, LH

SCREW, 1.50

SCREW, 1.12

SCREW, .75

Block, Handlebar, Black

Nut, Nylok

Cable, Throttle

Screw

Screw

HOLDER, WIRE

WASHER

SCREW, SET

BLOCK, THROTTLE/BRAKE

RING-RETAINING EXTERNAL

WASHER
