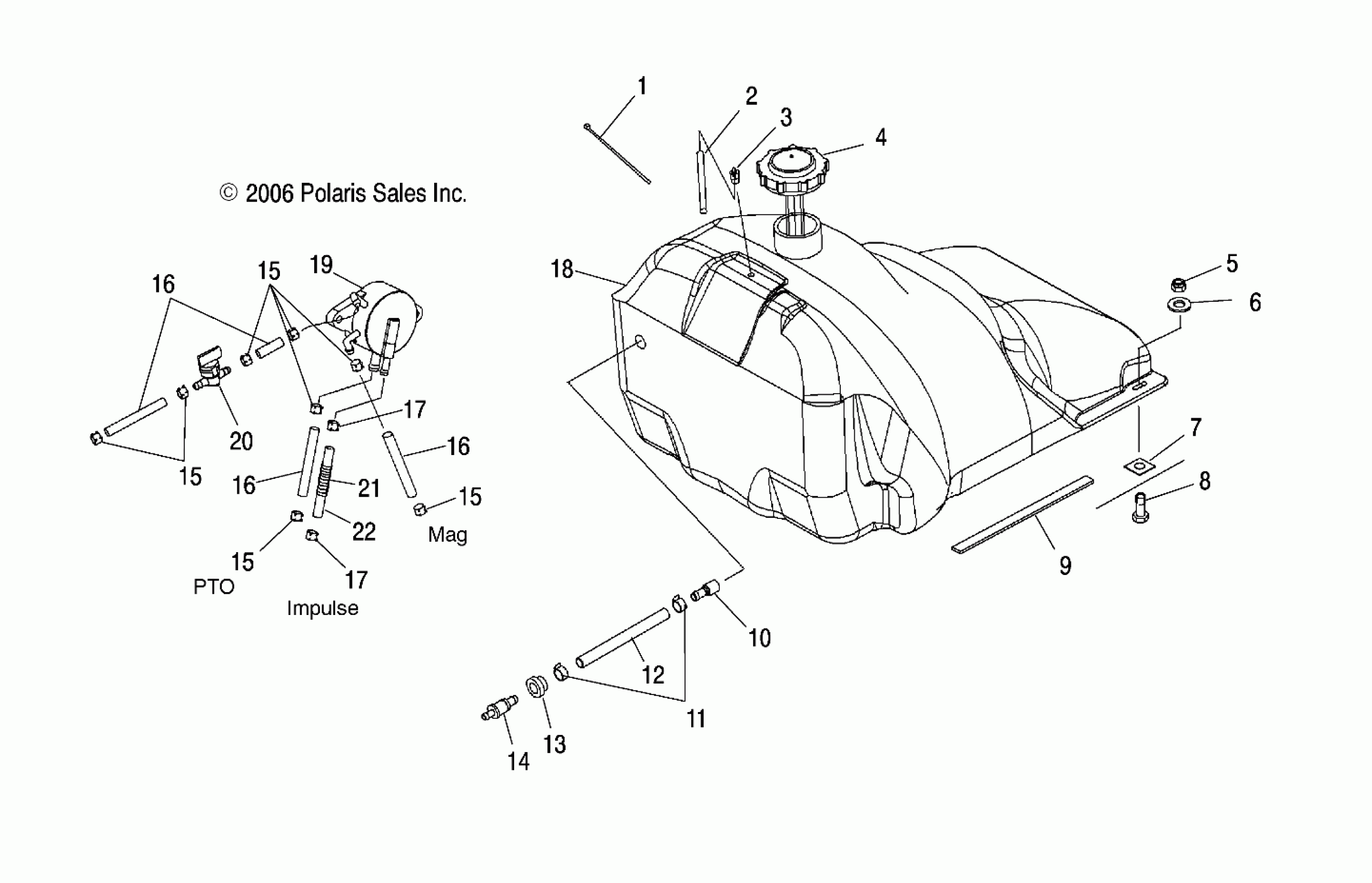

Polaris 550 EDGE LX - S07ND5BS FUEL SYSTEM - S07ND5BS (49SNOWFUELSUPER) Diagram

#

Description
Price

1

CABLE TIE, RELEASABLE

7080804

$3.22

2

LINE, FUEL

8450061-600

Unavailable

3

Fitting, 90 Degree

7052095

$4.79

4

Cap, Fuel w/Gauge

2520323

Unavailable

4

Gasket, Fuel Cap

5810512

$9.11

5

Nut, Nylok

7542122

$1.49

6

WASHER, FLAT

7555960

$3.99

7

Nut, Speed

7670021

$6.99

8

BOLT, CARRIAGE

7512193

$2.39

9

FOAM-SEAL,REAR COOLER

5810947

$4.03

10

Pickup Fuel, w/Filter

7052301

$12.94

11

RING, COMPRESSION

7080402

$1.60

12

Line, Fuel

8350019-160

Unavailable

13

Grommet

5435941

$7.60

14

Fitting

7052375

Unavailable

15

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

15

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

15

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

15

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

16

Line, Fuel

8350018-600

Unavailable

16

Line, Fuel

8350018-600

Unavailable

16

Line, Fuel

8350018-600

Unavailable

17

HOSE CLAMP, RED

7080003

$1.49

17

HOSE CLAMP, RED

7080003

$1.49

18

Asm., Fuel Tank, Edge [Incl. 3,10-14]

2520467

$234.99

19

Asm., Fuel Pump

3089751

Unavailable

20

VALVE, FUEL

7052248

$24.27

21

TUBING, CONVOLUTED

8360052-30

Unavailable

22

Line, Fuel

8450040-600

Unavailable
