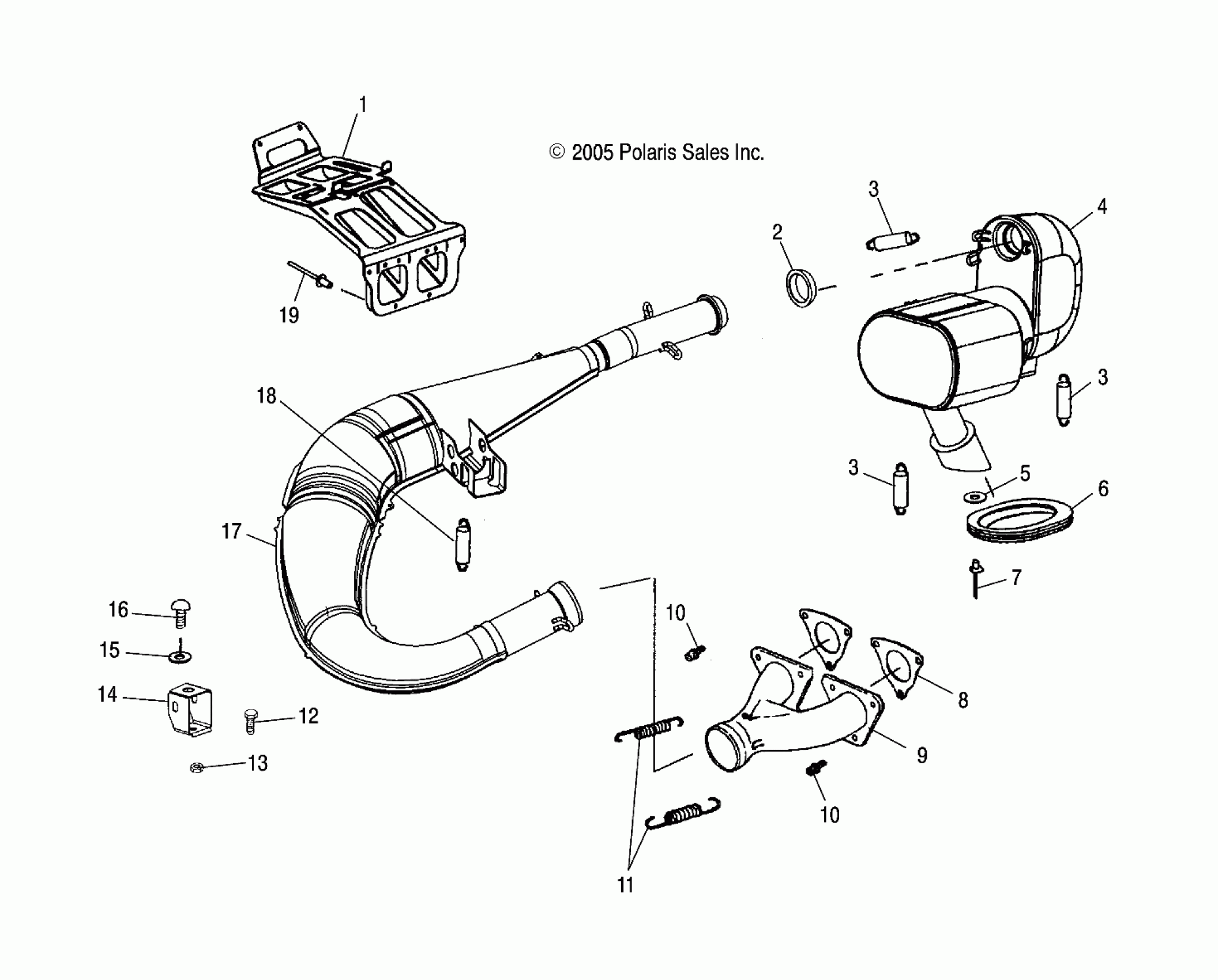

Polaris 550 EDGE LX - S07ND5BS EXHAUST SYSTEM - S07ND5BS (4997239723C07) Diagram

#

Description
Price

1

Bracket, Chassis/Resonator, Black

1261296-029

Unavailable

2

SEAL, EXHAUST

3610047

$36.41

3

SPRING-EXHAUST

7041687

$5.65

3

SPRING-EXHAUST

7041687

$5.65

3

SPRING-EXHAUST

7041687

$5.65

4

Resonator, Black

1261326-029

$1,999.99

5

Washer

7555904

$1.49

6

Boot, Exhaust, Outlet

5411684

Unavailable

7

RIVET

7621467

$1.49

8

GASKET, EXHAUST

3085714

$29.99

9

Manifold, Black

1260981-029

$193.63

10

SCREW

7517555

$8.79

10

SCREW

7517555

$8.79

11

Spring

7042332

$4.84

12

SCREW

7517935

$2.39

13

NUT, FLANGED

7547180

$2.39

14

Bracket, Chassis/Pipe

5245498

$59.99

15

WASHER

7556004

Unavailable

16

Dampener, Vibration

5411576

$7.99

17

Clamp, Worm Drive, .44x3.69

7080740

$13.19

17

Clamp, Worm Drive, .44x2.75

7080809

$9.59

17

Clamp, Worm Drive, .44x4.25

7080808

Unavailable

17

Cover, Megaphone, Top

5243197

Unavailable

17

Cover, Megaphone, Botton

5243198

Unavailable

17

Matte, Sound

5830162

Unavailable

17

Matte, Sound, CC

5813092

$8.23

17

Cover, Counterphone, Top

5250394

$59.51

17

Asm., Tuned Pipe

1261702

Unavailable

18

Spring

7042029

$4.84

19

RIVET-3/16-.090-.290

7661637

$1.49
