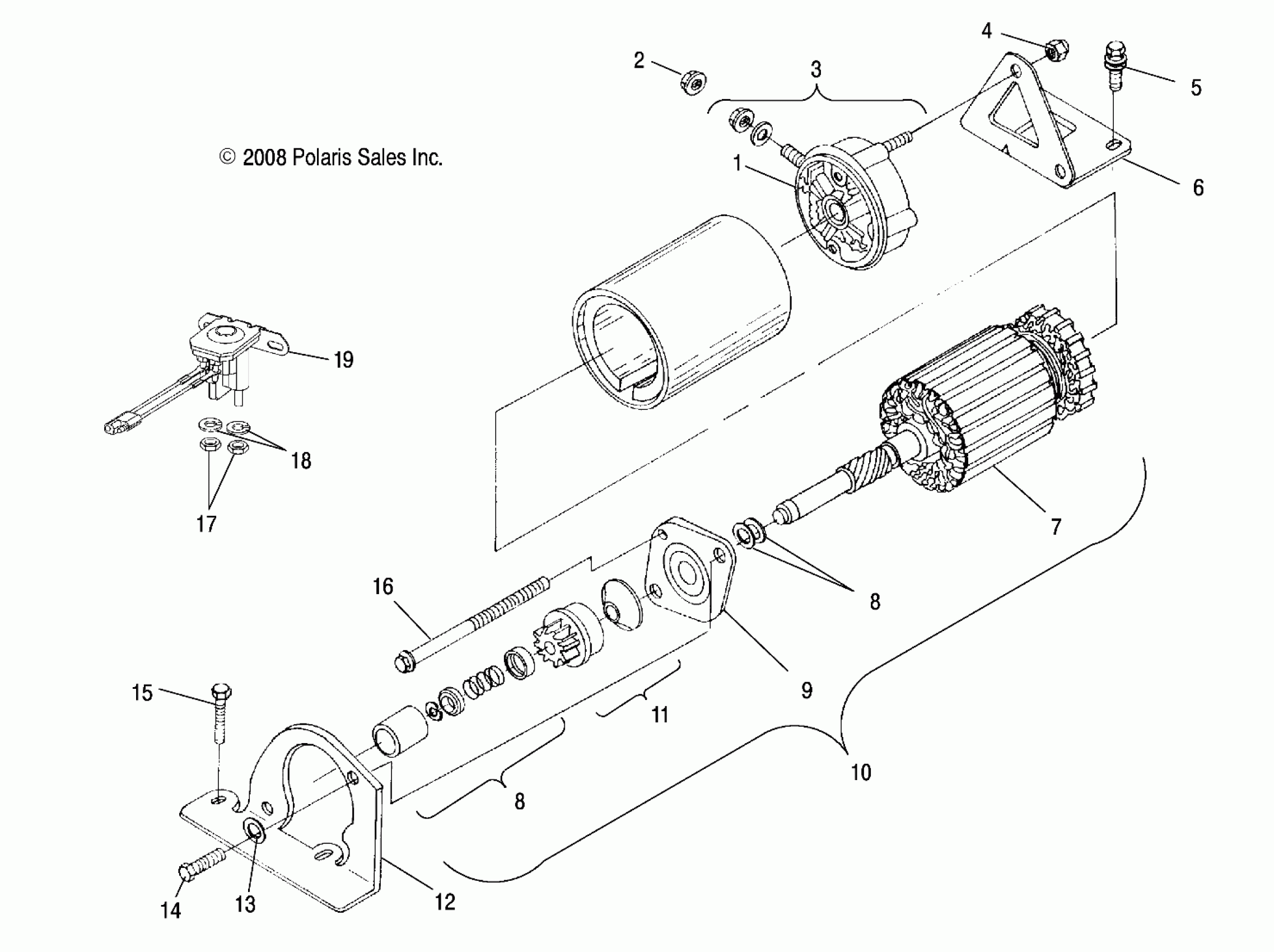

Polaris 550 EDGE LX - S07ND5BS ENGINE, STARTING MOTOR - S07ND5BS (4997239723D04) Diagram

#

Description
Price

1

Kit, Brush & Spring

2200759

$59.99

1

ASM., BRUSH & SCREW

-------

Unavailable

1

BUSHING, INSULATION

-------

Unavailable

1

ASM., BRUSH

-------

Unavailable

1

WASHER, INSULATION

-------

Unavailable

1

Nut

-------

Unavailable

2

Nut, FLEXLOC

7542103

$5.59

3

Kit, Commutator Cap Asm. [Incl. 1]

2200758

$82.39

4

Nut, Nylok, Flange

7542153

$1.59

5

SCREW

7516815

$6.39

6

Bracket, Starter, Rear

5240956

$16.99

7

Kit, Armature Asm.

2200756

$169.99

8

Kit, Drive Hardware

2200755

Unavailable

8

WASHER, CURVED SPRING

-------

Unavailable

8

Washer, Thrust

-------

Unavailable

8

SPRING, ANTIDRIFT

-------

Unavailable

8

PINION, STOP

-------

Unavailable

8

RING, LOCK

-------

Unavailable

8

SPACER

-------

Unavailable

8

COVER, DUST

-------

Unavailable

8

Kit, Drive Hardware

2200755

Unavailable

8

WASHER, CURVED SPRING

-------

Unavailable

8

Washer, Thrust

-------

Unavailable

8

SPRING, ANTIDRIFT

-------

Unavailable

8

PINION, STOP

-------

Unavailable

8

RING, LOCK

-------

Unavailable

8

SPACER

-------

Unavailable

8

COVER, DUST

-------

Unavailable

9

Kit, Drive Cap Asm.

2200757

$59.99

10

Motor, Starter, Domestic

2410748

Unavailable

11

Kit, Drive Asm.

2200754

Unavailable

11

PINION

-------

Unavailable

11

PLATE, DRIVE

-------

Unavailable

12

Bracket, Starter, Front

5241271

$32.37

13

Washer, Spring Lock

7552603

$1.49

14

Screw

7512492

$1.49

15

Asm., Screw and Washer

7516730

$6.39

16

Kit, Screw

2200753

$29.99

16

BOLT, THRU

-------

Unavailable

17

Nut, Hex

7542105

$3.99

18

WASHER, SPRING LOCK

7552801

$1.59

19

Switch, Magnetic [Incl. 17,18]

4011335

$60.70
