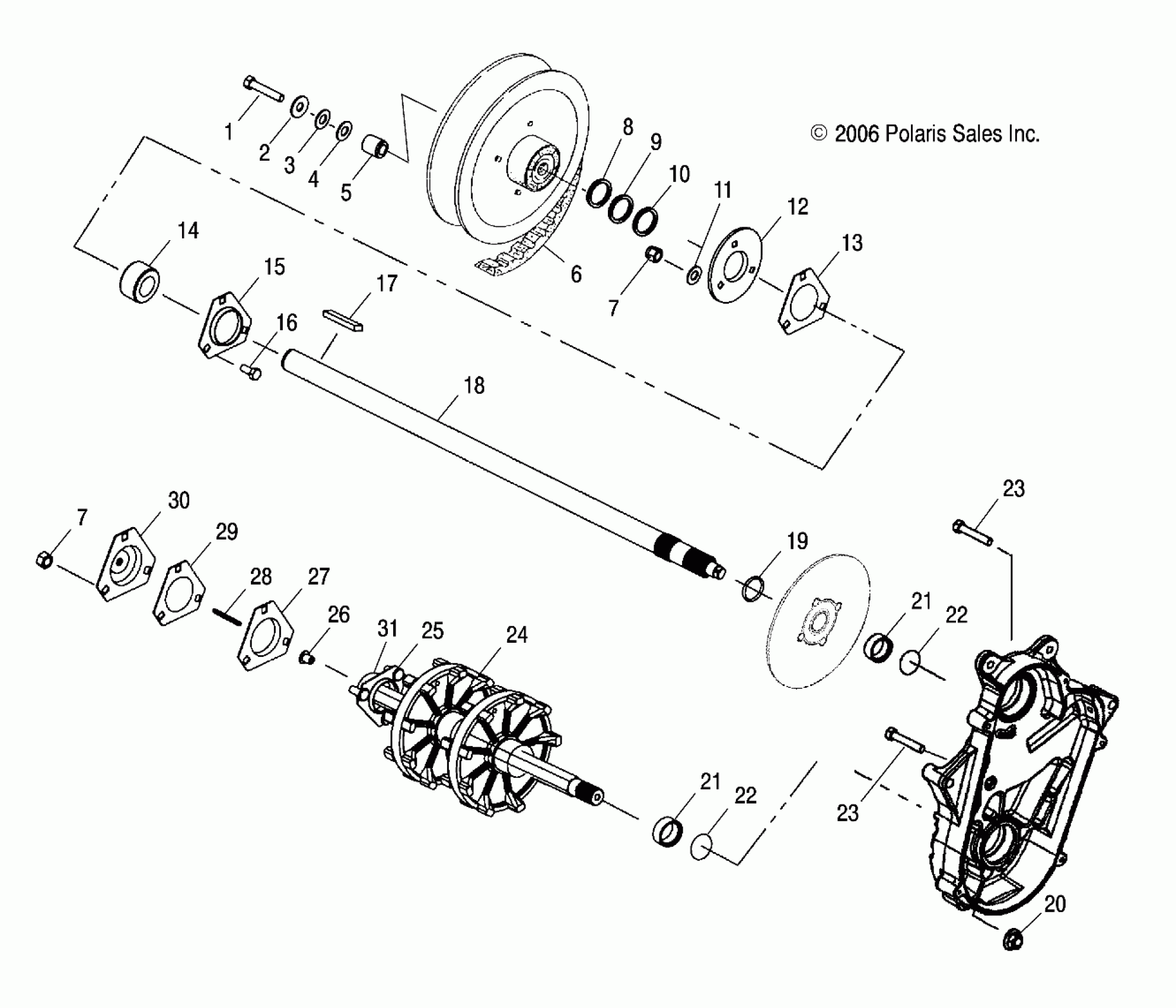

Polaris 550 EDGE LX - S07ND5BS DRIVE TRAIN - S07ND5BS (49SNOWDRIVETRAINSUPER) Diagram

#

Description
Price

1

Bolt

7515348

$4.79

2

WASHER, FLAT

7555701

$3.99

3

Washer, Flat

7555734

Unavailable

4

Washer

7555957

Unavailable

5

Spacer, Input Shaft

5135621

$7.99

6

Belt, Drive

3211078

$109.99

7

NUT-5/16-18 NYLOK-Y

7542324

$1.49

7

NUT-5/16-18 NYLOK-Y

7542324

$1.49

8

WASHER

7555917

$2.39

9

WASHER

7555864

Unavailable

10

Bushing

7556509

Unavailable

11

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

12

Fitting, Lubrication

7080561

$4.79

12

Flangette w/Zerk

5241359

$32.37

13

Gasket, Jackshaft

5811095

$2.41

14

BEARING

3514448

Unavailable

15

FLANGETTE

5222751

$16.44

16

Bolt, Carriage

7512377

$4.79

17

Key

7721128

$10.39

18

Asm., Jackshaft [Incl. 14,19]

1332457

$162.84

19

RING, RETAINING

7710422

$3.99

20

Nut, Flange

7542423

$3.99

21

SLEEVE, SEAL

5020588

$23.99

21

SLEEVE, SEAL

5020588

$23.99

22

O-RING

5410613

$1.99

22

O-RING

5410613

$1.99

23

Bolt, Carriage

7515428

$4.79

23

Bolt, Carriage

7515428

$4.79

24

Asm., Drive Shaft [Incl. 25,26,31]

1590340

$343.71

25

ASM., FLANGETTE W/SCREWS

1012945

$114.99

26

Bushing, Speedometer, Metal

3280019

$11.99

27

Flangette w/Hole

5243529

$13.75

28

Key, Speedometer, Square

3280017

$13.75

29

Gasket, Drive Adaptor

5830012

$2.41

30

Fitting, Lubrication

7080433

$1.49

30

Adaptor w/Zerk, Drive

3280116

$101.17

31

BEARING

3514525

$31.99
