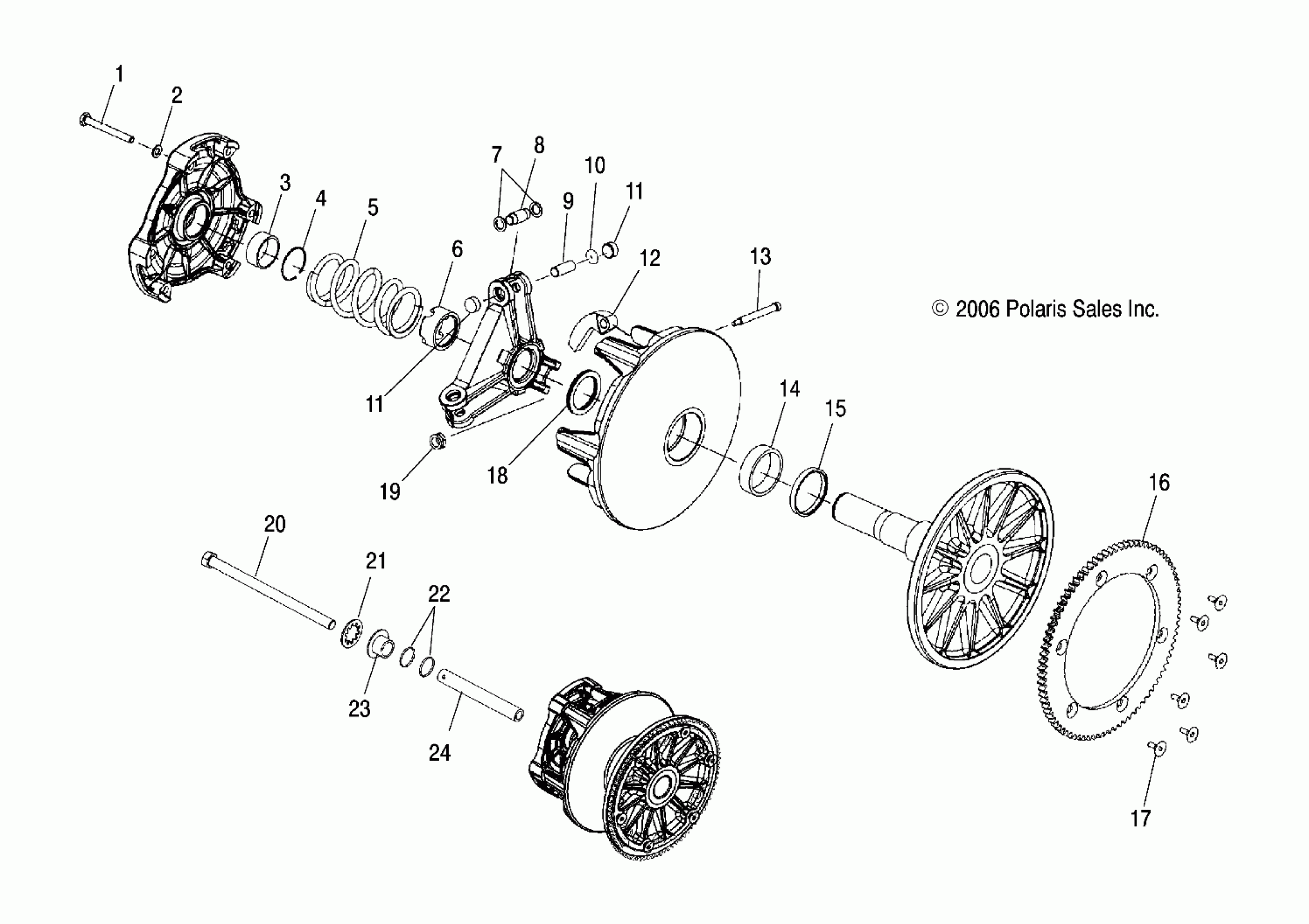

Polaris 550 EDGE LX - S07ND5BS DRIVE CLUTCH - S07ND5BS (49SNOWDRIVECLUTCH550) Diagram

#

Description
Price

-

Asm., Drive Clutch Electric Start [Incl. All Less 5,12]

1322316

Unavailable

1

Bolt

7512265

$3.99

2

WASHER, SPRING LOCK

7552801

$1.59

3

BEARING, COVER

3576516

$28.32

4

RING-RETAINING,COVER

7710417

$1.49

5

Spring, Clutch, Dark Blue/White

7041781

$56.65

6

NUT-JAM

5020425

$23.99

7

WASHER,MULTILUBE

5430945

$1.59

8

ASM-ROLLER AND BUSHING

1321622

$32.37

9

PIN, ROLLER

5133079

$6.39

10

Kit - Shim, Drive Clutch

2200387

$24.27

11

BUTTON, GUIDE

5430445

$6.39

11

BUTTON, GUIDE

5430445

$6.39

12

ASM., WEIGHT/BUSHING, 10-62

1321586

$40.46

13

PIN-WEIGHT,HARDENED,1/4X2.00

7515105

$13.75

14

Bearing, Sleeve

3576502

$23.99

15

INSERT-MOVEABLE

5010188

$7.99

16

Kit, Gear, Ring

2870001

$129.99

17

Bolt

7515351

$3.99

18

SPACER, .050

5210754

Unavailable

18

SPACER, .020

5210752

Unavailable

18

SPACER, .032

5210753

Unavailable

18

Spacer, .130

5134018

Unavailable

19

NUT, FLEXLOC

7541906

$3.19

20

SCREW

7517776

$34.99

21

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

22

O-Ring

5410507

$1.49

23

Spacer

5020513

$44.99

24

WASHER, CLUTCH RETAINER

5010287

$12.99
