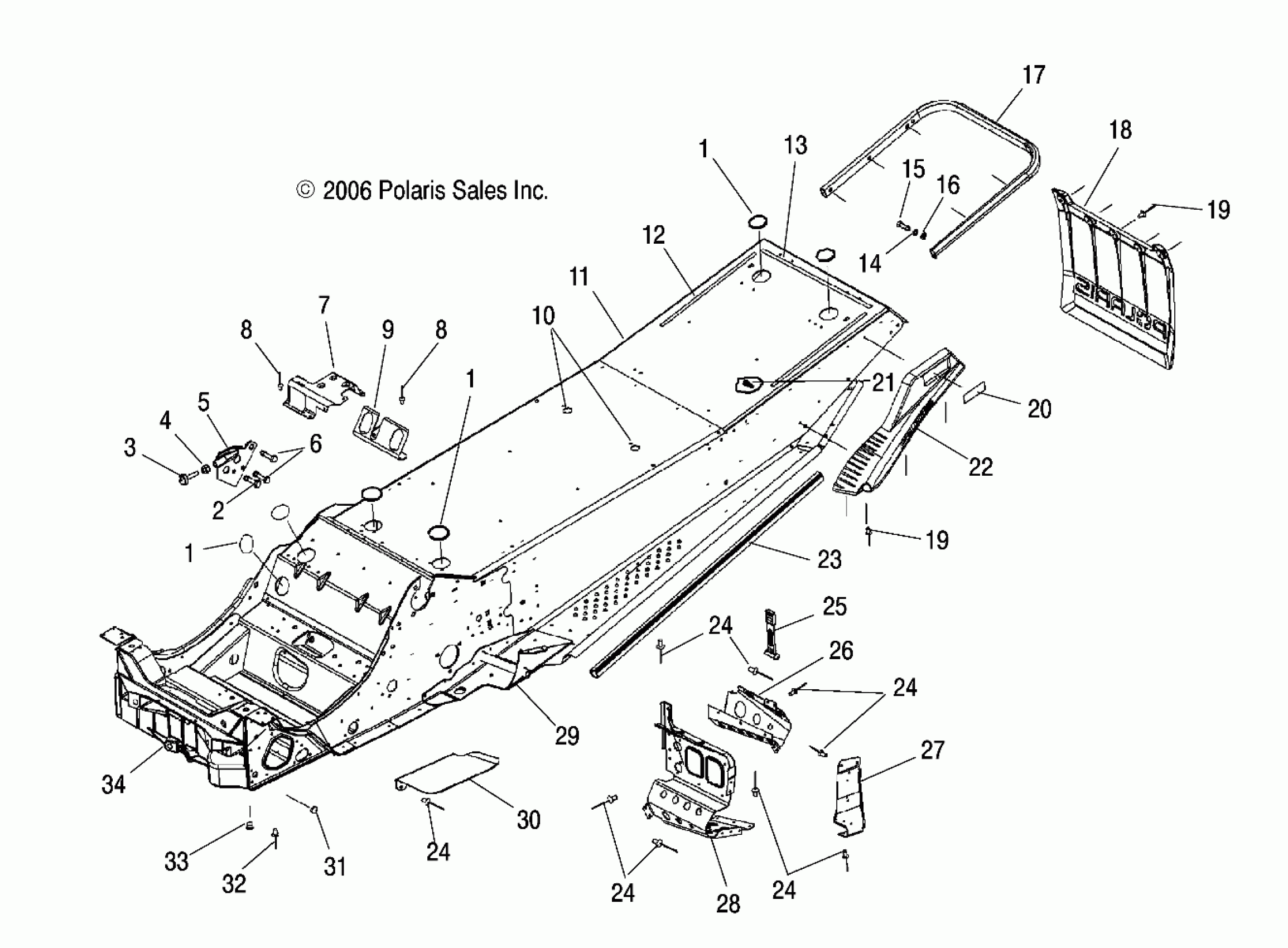

Polaris 550 EDGE LX - S07ND5BS CHASSIS - S07ND5BS (49SNOWCHASSIS550) Diagram

#

Description
Price

1

Caplug

7080934

$1.83

1

Caplug

7080934

$1.83

1

Caplug

7080934

$1.83

2

Screw

7517854

$5.59

3

Stop, Torque

3021104

$20.22

4

NUT

7542404

$1.59

5

Stop, Torque

1013399

$27.19

6

SCREW

7517632

$5.59

7

Bracket, Oil Tank/Hose Support

5246330

$13.19

8

Rivet

7621432

$1.49

8

Rivet

7621432

$1.49

9

Bracket, Air Box

5246177

$18.23

10

Caplug

7080592

Unavailable

11

Asm., Chassis, Edge [Incl. 29,34]

1014086-309

$1,192.99

12

Gasket, Seat Base

5812290

$1.49

13

Gasket, Seat Base

5812360

$1.83

14

WASHER, SPRING LOCK

7552801

$1.59

15

Bolt

7512232

$1.49

16

Washer, Flat

7558301

$1.49

17

Asm., Bumper, Rear

2632165-309

Unavailable

18

Flap, Snow, Short, Black/White

5433961-1038

Unavailable

19

RIVET

7621472

$1.49

19

RIVET

7621472

$1.49

20

Reflector, Red

2670133

$5.75

21

Screw

7517441

$2.39

22

Asm., Skirt, Snow, Reflector, Black, LH [Incl. 20]

2632443-070

$64.75

22

Asm., Skirt, Snow, Reflector, Black, RH [Incl. 20]

2632444-070

$55.99

23

Brace, Tunnel, Roll

5245118

$23.81

24

RIVET-3/16-.090-.290

7661637

Unavailable

24

RIVET-3/16-.090-.290

7661637

Unavailable

24

RIVET-3/16-.090-.290

7661637

Unavailable

24

RIVET-3/16-.090-.290

7661637

Unavailable

24

RIVET-3/16-.090-.290

7661637

Unavailable

25

STRAP-AIRBOX TOP

5433150

$24.27

26

Mount, Console, Toe Clip, LH

5245457

Unavailable

26

Mount, Console, Toe Clip, RH

5245458

Unavailable

27

Support, Footrest, LH

5246310

$19.83

27

Support, Footrest, RH

5246311

$32.37

28

Footrest, LH

5245288

Unavailable

28

Footrest, RH

5247205

Unavailable

29

Kit, Trailing Arm Mount, LH

2202059

$213.00

29

Kit, Trailing Arm Mount, RH

2202598

$124.99

30

Guard, Belt

5246066

Unavailable

31

PLUG, HOLE

7080416

$5.65

32

Rivet

7661130

$1.49

33

Plug, Hole

7081076

$3.22

34

Bulkhead, Front

5132292

$115.99
